23

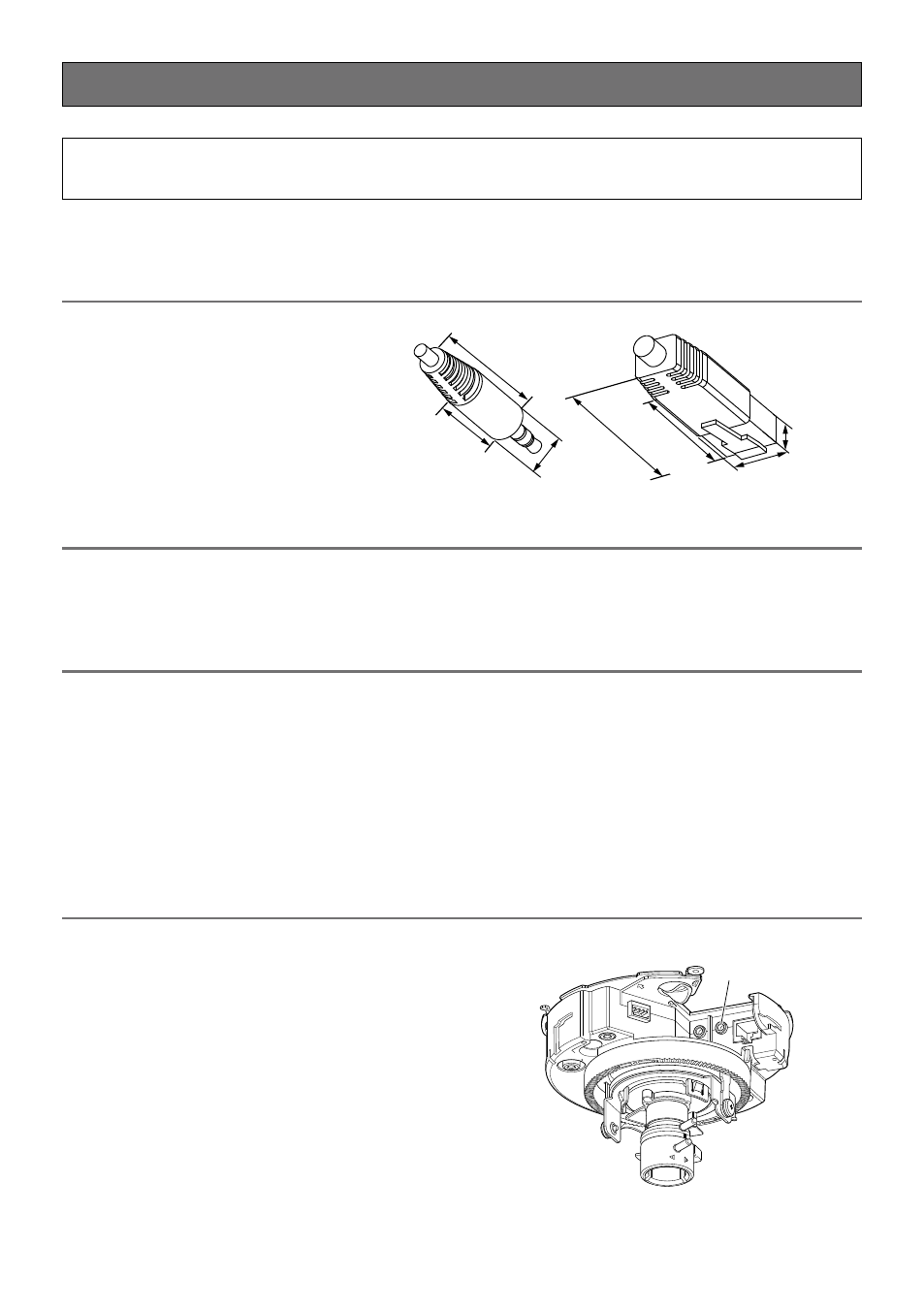

Connection
Before starting the connection, turn off the power of this camera and the devices to be connected.
Check and prepare the required devices and cables for connection.
Note:
• Since the connector storage
section does not have a suffi-
cient space, use audio cables
and a LAN cable that do not
exceed the sizes described in
the illustrations.
z
Connect the RCA pin cable to the monitor out connector for adjustment (only used for adjust-
ment of the angular field of view). (☞ Page 16)
Important:
• The monitor out connector for service is provided only for checking the adjustment of the angu-
lar field of view on the video monitor when installing the camera or when servicing. It is not pro-
vided for recording/monitoring use.
• When checking the adjustment of the angular field of view on the video monitor, be sure to use
the RCA jack of the main body for connection with video monitor.
• Black bands may appear at the top and bottom or right and left of the screen. (That does not
affect the adjustment because the angular field of view is not changed.)
• The video output on the monitor for adjustment does not guarantee the video performance or
image quality.
x
Connect the microphone to MIC/LINE IN (for
use of the audio reception function).
Input impedance: Approx. 2 kΩ
Recommended cable length:
1 m {3.3'} or less (for microphone input)
10 m {33'} or less (for LINE input)
Recommended microphone:
Plug-in power type microphone (option)
Connect a monaural mini plug (ø3.5 mm).
• Supply voltage: 2.5 V±0.5 V
• Recommended sensitivity of microphone:
–48 dB ±3 dB (0 dB=1 V/Pa,1 kHz)
FRONT TOP
EXT I/O
AUDIO OUT
MIC/ LINE IN
10BASE-T/ 100BASE-IX
4 2 3 1
MONITOR OUT
F
IN
Microphone/line
input connector
Straight section
17 mm {21/32"}
30 mm {1-3/16"}
ø9 mm
{11/32"}
Example of
audio cable connector
40 mm {1-9/16"}
Straight section
30 mm {1-3/16"}
9 mm
{11/32"}
13 mm {1/2"}
Example of LAN cable
connector
Caution:
• FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.
