3 Product description
VEGAMET 391 • 4 … 20 mA/HART
36032-EN-130701
3 Product description
3.1 Configuration
The scope of delivery encompasses:
•
VEGAMET 391 signal conditioning instrument
•
Two clamping elements for panel mounting
•
Ex separating wall
•
Mini-USB cable
•
Carrier rail adapter (optional)
•
RS232 modem connection cable (optional)
•
Documentation
– this operating instructions manual
– Supplementary instruction 30325 "RS232/Ethernet connection"
(optional)
– Supplementary instructions manual 30768 "Modbus-TCP, ASCII
protocol" (optional)
– Ex-specific "Safety instructions" (with Ex-version)
– if necessary, further certificates
OK ESC
on
VEGAMET 391
1 2 3 4 5 6
1
2
3
4
2
5

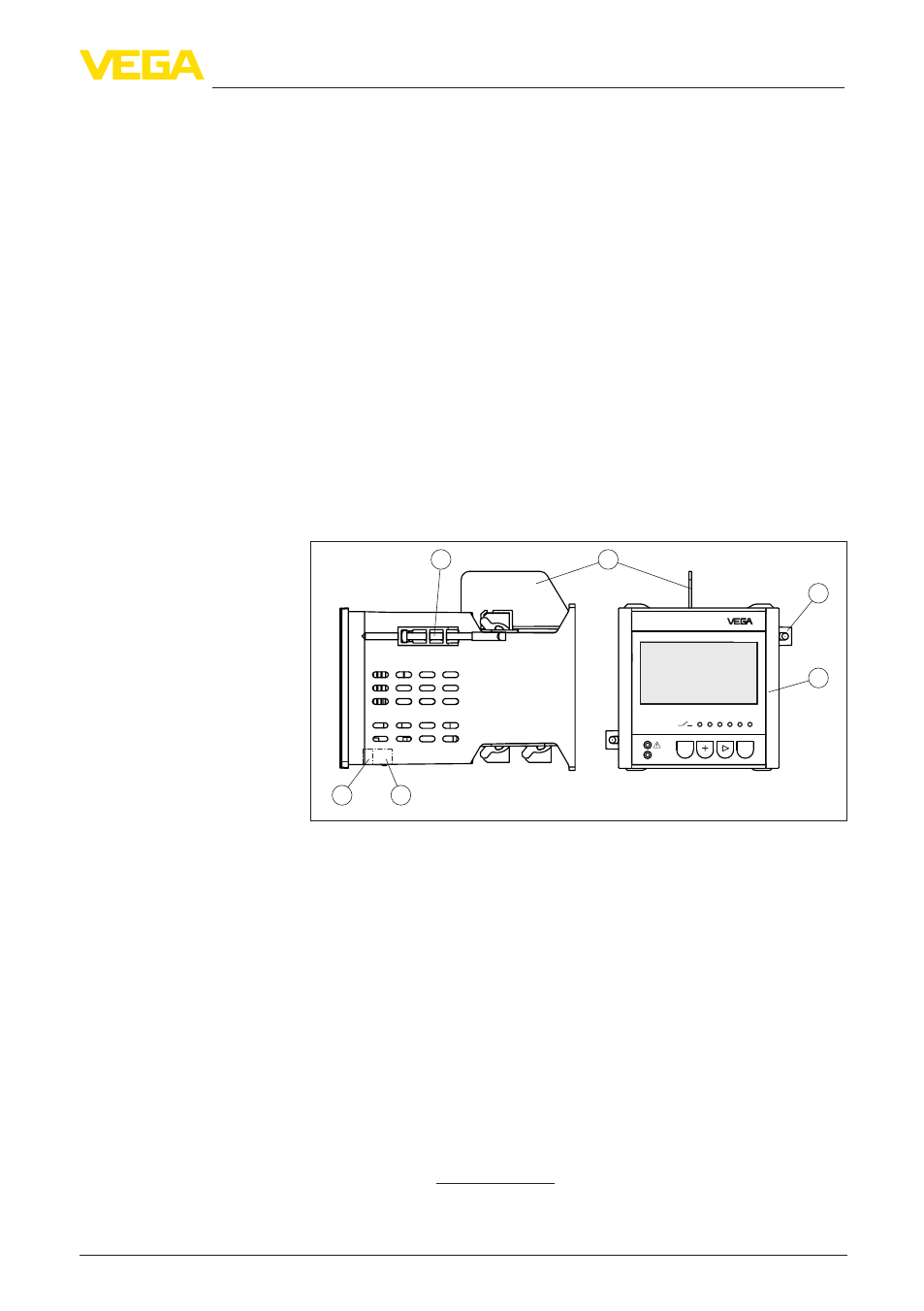

Fig. 1: VEGAMET 391
1 Ex separating wall
2 Clamping element for panel mounting
3 Display and adjustment unit
4 RS232 or Ethernet interface (optional)
5 USB interface
The nameplate contains the most important data for identification and
use of the instrument:
•
Article number
•
Serial number
•
Technical data
•
Article numbers, documentation
The order data and the documentation of the instrument can be
retrieved by means of the instrument serial number on the type label.
To do this, go to www.vega.com, "VEGA Tools" and "serial number
search".
Scope of delivery
Constituent parts
Type plate
