6 Setup with the integrated display and adjustment unit
VEGAMET 391 • 4 … 20 mA/HART
36032-EN-130701
6 Setup with the integrated display and
adjustment unit
6.1 Adjustment system
The integrated display and adjustment unit is used for measured
value display, adjustment and diagnosis of VEGAMET 391. The
indication and adjustment are carried out via four keys and a clear,
graphic-capable display with background lighting. The adjustment
menu with selectable language is clearly structured and enables easy
setup.
Certain adjustment options are not available or only partially available
with the integrated display and adjustment unit, e.g. the settings for
flow measurement. For such applications, the use of PACTware with
appropriate DTMs is recommended.
OK ESC
on
VEGAMET 391
1 2 3 4 5 6
4
5
3
2
1

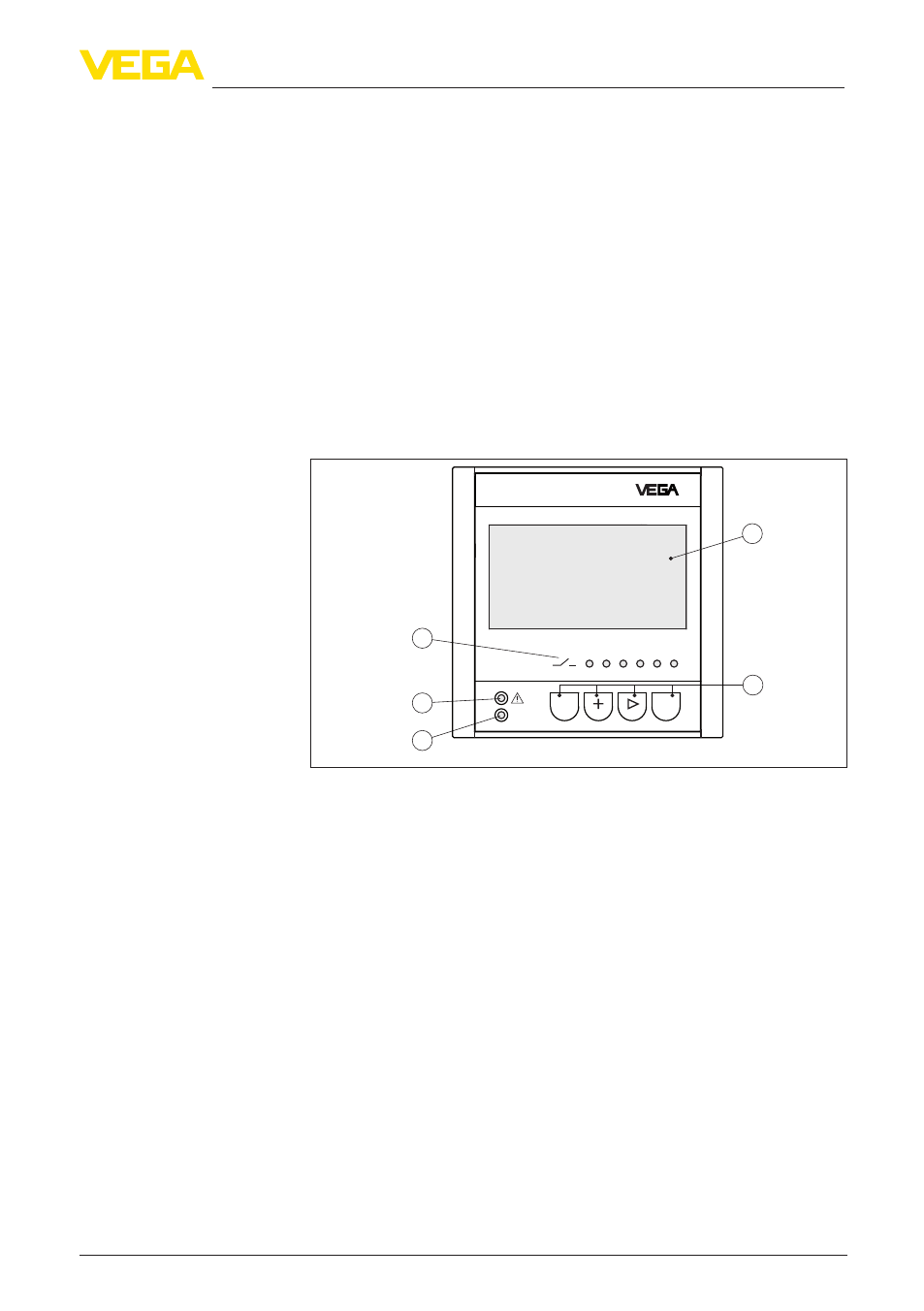

Fig. 7: Display and adjustment elements
1 LC display
2 Adjustment keys
3 Status indication operation
4 Status indication fail safe relay
5 Status indication operating relay 1 … 6
•
[OK] key:
– Move to the menu overview
– Confirm selected menu
– Edit parameter
– Save value
•
[->] key to select:
– Menu change
– Select list entry
– Select editing position
•
[+] key:
– Change value of the parameter
•
[ESC] key:
– Interrupt input
Function
Display and adjustment
elements
Key functions
