6 Setup with the integrated display and adjustment unit
VEGAMET 391 • 4 … 20 mA/HART
36032-EN-130701
to address 0, the sensor is in the standard mode. Here the measured
value is transmitted digitally on the 4 … 20 mA cable.
In mode HART Multidrop, an address from 1 … 15 is assigned to the
sensor. By doing so, the current is fix limited to 4 mA and the meas-
ured value transmission is only made digitally.

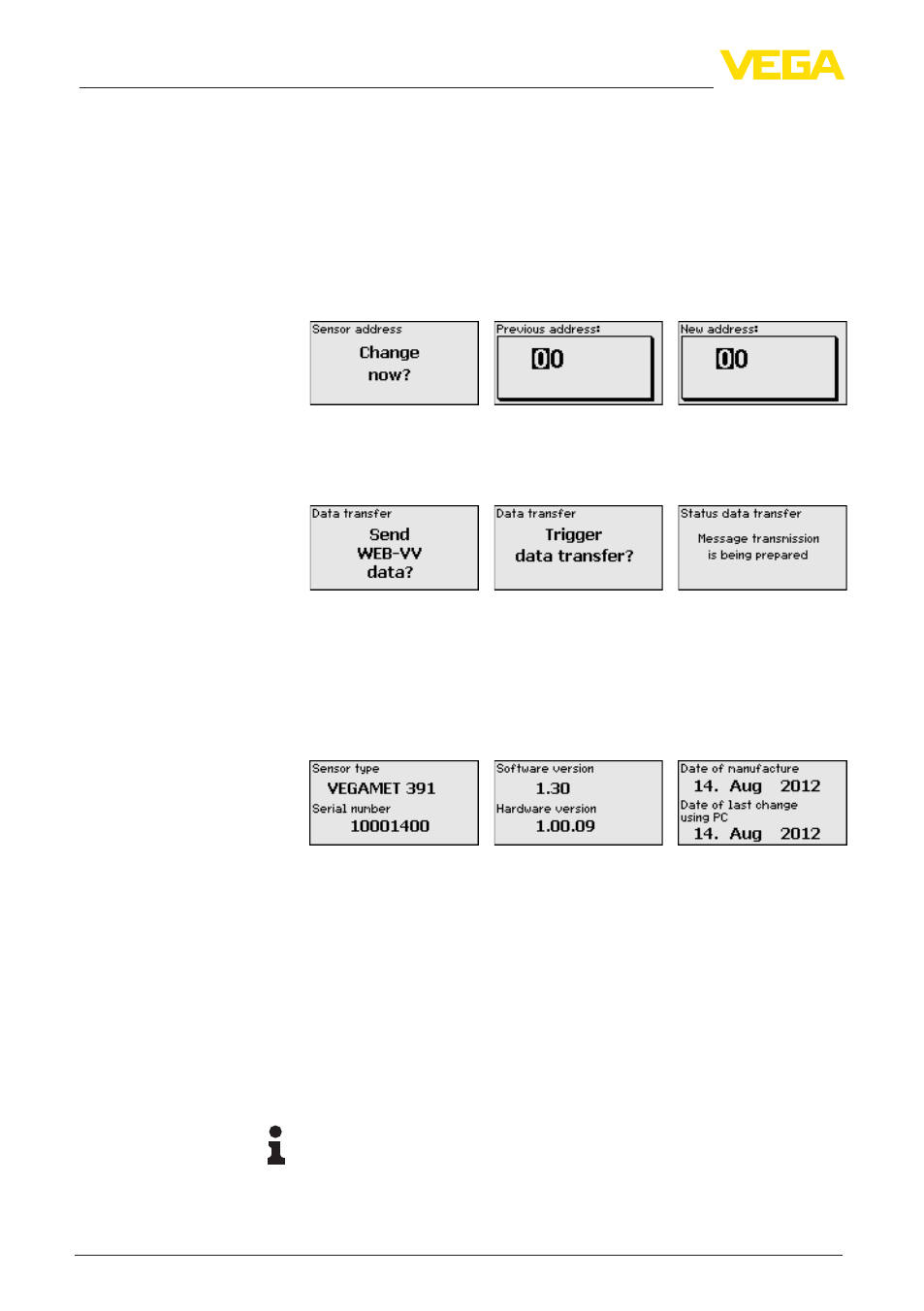

Via the menu item "Sensor address", the address of the connected
sensor can be modified. For this purpose, you have to enter the
address of the connected sensor (default setting 0) and in the next
window the new address.
With instrument versions with integrated RS232/Ethernet interface,
a manual data transmission to a WEB-VV server can be trigger, for
example, for test purposes. Requirement is that a WEB-VV event was
configured in advance via PACTware/DTM.
In the menu item "Info" the following information is available:
•
Sensor type and serial number
•
Software and hardware version
•
Date of manufacture and date of the last change using PC
•
Features of VEGAMET 391
•
MAC address (with interface option Ethernet)
Additional adjustment and diagnostics options are available via the
Windows software PACTware and the suitable DTM. Connection can
be made optionally via the built-in standard interface or one of the
optionally offered interfaces (RS232/Ethernet). Further information
is available in chapter "Parameter adjustment with PACTware", in
the online help of PACTware or the DTM as well as in the operating
instructions manual "RS232/Ethernet connection". An overview of
the standard functions and their adjustment options can be found in
chapter "Functional overview" in the "Supplement".
6.3 Menu schematic
Information:
Depending on the instrument version and application, the highlighted
menu windows are not always available.
Additional adjustments -
Data transmission
Info
Optional settings
