6 Setup with the integrated display and adjustment unit
VEGAMET 391 • 4 … 20 mA/HART
36032-EN-130701
→

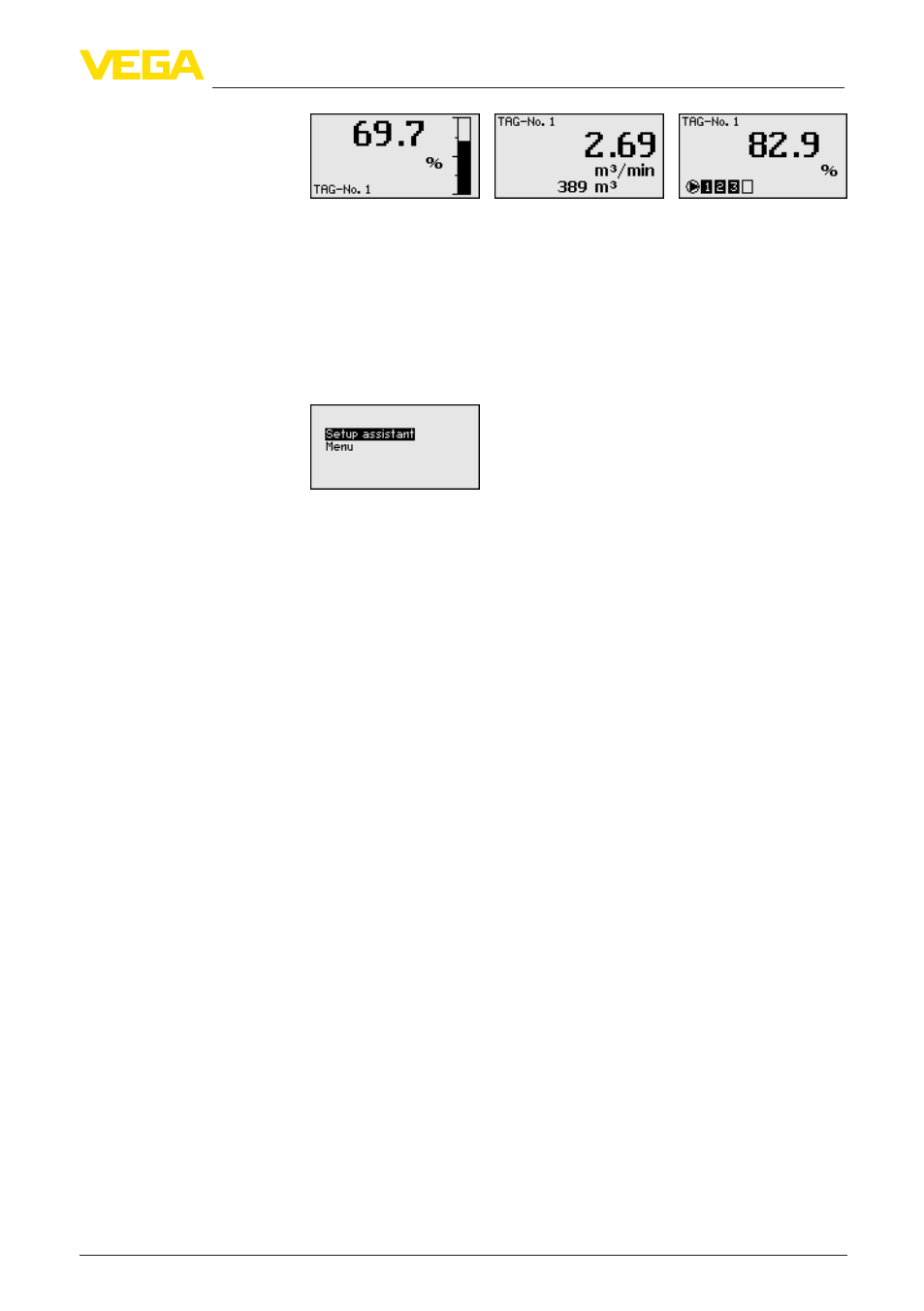

[OK], you move from the measured value indication into the main
menu. Here, you have the choice between the setup assistant for
the most important settings and the complete classic menu.
At the beginning of every setup or parameter adjustment, you have
the choice of continuing with the setup assistant or the classic menu
guidance. We recommend using the setup assistant for the initial
setup. If later on individual settings should be corrected or added, the
most expedient way to do this is via the classic menus.
→
Select the menu item "Setup assistant" with [->] and confirm with
[OK].
The setup assistant leads you step-by-step through the standard set-
tings. The following steps are carried out:
•
Device-TAG (individually adjustable instrument name)
•
Measurement loop TAG (individually adjustable measurement loop
designation)
•
Type of input (4 … 20 mA or HART)
•
Measured variable (for example level or process pressure)
•
Adjustment unit (for example m or bar)
•
Min./Max. adjustment
•
Activation of the fail safe relay
•
Configuration of the relay outputs (e.g. setup of pump control or
overfill protection)
•
Setting Date/Time with option RS232/Ethernet interface
•
Network settings with option "Ethernet interface"
When changing the measurement, the assistant can be called up
any time. The subsequent steps can also be reached individually via
the traditional menu navigation. A description of the individual menu
items is available in the traditional menus. In chapter "Application
examples" you will find further information about setup.
The main menu is divided into six areas with the following functions:
•
Device settings: Includes the device-TAG, settings for network
connection such as date/time setting, …
•
Measurement loop: Includes settings for input selection, adjust-
ment, damping, linearization, scaling, outputs, …
•
Display: Includes settings for the displayed measured value,
language und brightness of the background lighting
•
Diagnosis Includes information on device status, error messages,
input current, digital inputs
Main menu/Setup as-
sistant
Setup assistant
Traditional menu naviga-
tion/main menu
