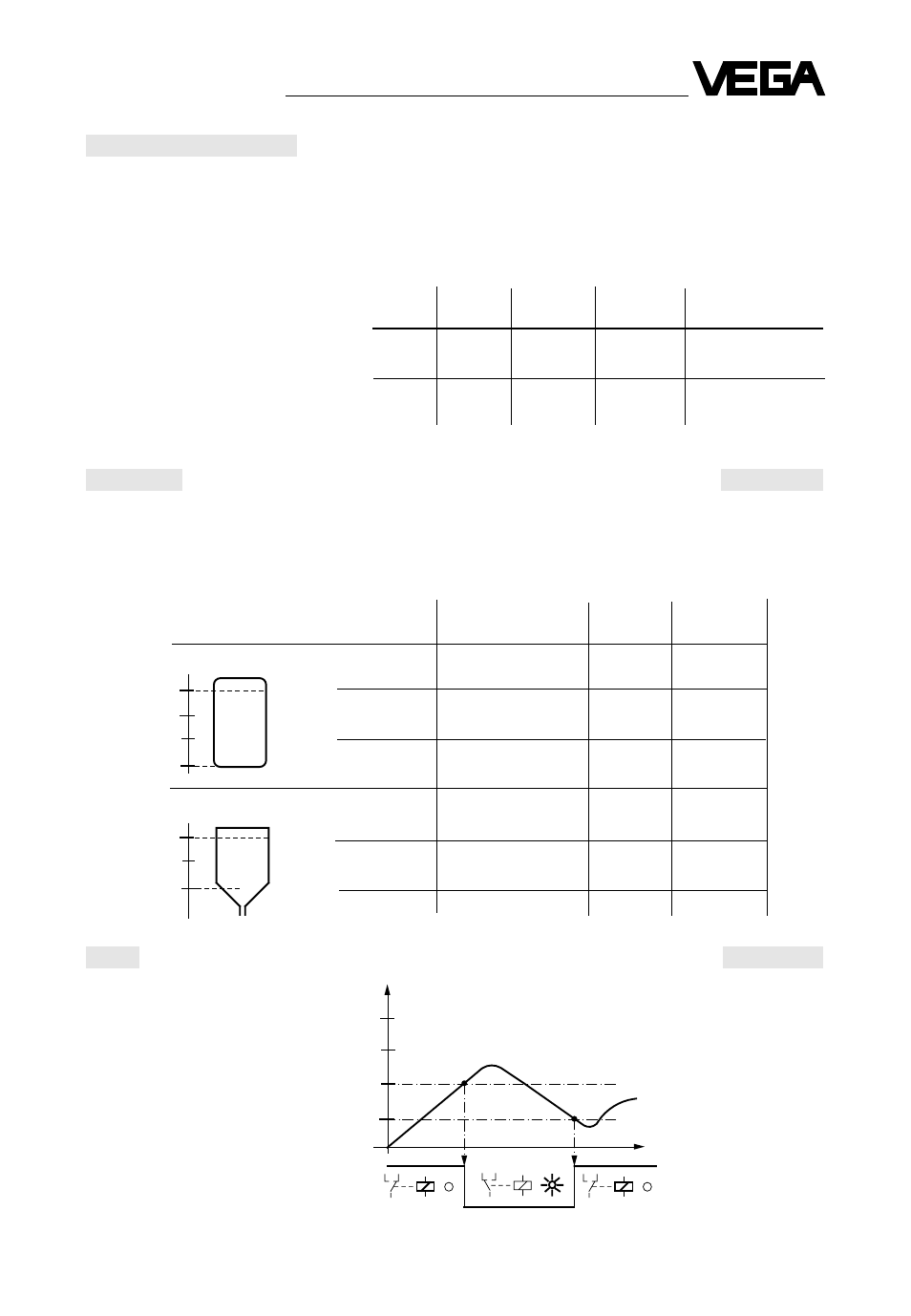

Measurement, Relay output
71 - 2 … 75 - 2 31
Module for relay output 1 … 4
The pulse-echo measuring system can be equipped
with max. two relay modules. Each module has two relay outputs.
Two-point level switch
Mode coordination / meaning module relay coordi- mode switching command
output nation 1 and 2
1 1 0 - 43 0 - 44 = 1 0 - 45 and 0 - 46
2 0 - 48 0 - 49 = 1 0 - 50 and 0 - 51
2 3 0 - 53 0 - 54 = 1 0 - 55 and 0 - 56
4 0 - 58 0 - 59 = 1 0 - 60 and 0 - 61
Coordination (Module 1, relay output 1) MODE 0 - 43
For each relay output the coordination can be
programmed separately and relates to: - measurement (channel 1, 2 and difference)
- measuring unit
- level / volume percentage
vessel geometry / measuring result measuring unit coordination linearization
(channel definition) 0 - 43 0 - 18, 0 - 28
level percentage channel 1 m = 1
% = 2 0 - 18 = 1
channel 2 m = 3
% = 4 0 - 28 = 1
difference m = 5
% = 6
volume percentage channel 1 % = 2 0 - 18 = 2
or 4 … 6
channel 2 % = 4 0 - 28 = 2
or 4 … 6
difference % = 6
Mode (Module 1, relay output 1) MODE 0 - 44
Mode 0 - 44 = 1
two-point level switch
switching command 2 via
switching command 1
correspond to function A
(overfill protection)
0
25
75
100
50
% m distance acc.t o sensor type
mode combination
switching command 2,
mode 0-46
switching command 1,
mode 0-45
(off)
(on)
