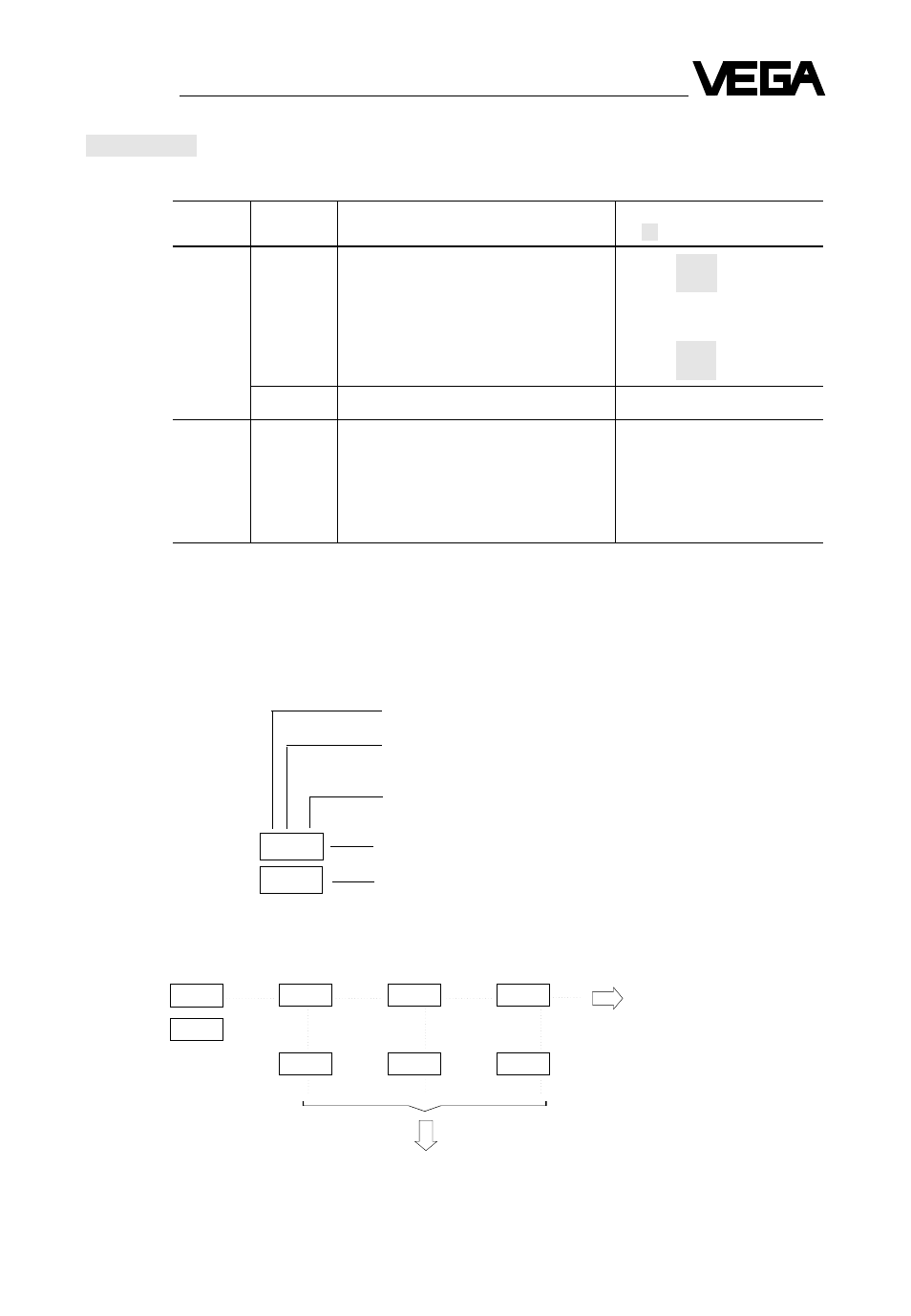

Linearization
71 - 2 … 75 - 2 25
Display
number of the linearization curve 4 … 6
indication for level percentage = H
indication for volume percentage = L
number of index marker 01 … 32
Display 1 4 . H . 0 1 MODEFIELD
Display 2 1 0 0 . 0 PARAMETER FIELD
Mode listing 4 Linearization curve 4 … 6
Function Mode-no. Mode description Parameter
(
= factory preset)
Index 4.H.01 1. index - level percentage ........... 000.0 … 100.0
marker 4.L.01 marker - volume percentage ...... 000.0 … 100.0
•
•
•
4.H.32 32. index - level percentage ........... 000.0 … 100.0
4.L.32 marker - volume percentage ...... 000.0 … 100.0
4 - 33 … 98 not used ..................................................... – – – –
4 - 99 Change - general parameter ............. 0
- sensor optimization 1 .......... 1
- sensor optimization 2 .......... 2
- linearization curve 4 ............ 4
- linearization curve 5 ............ 5
- linearization curve 6 ............ 6
Linearization curve 4
Linearization curve 5 see above, however 5.H.01 … 5.H.32
5.L.01 … 5.L.32 5 - 99
Linearization curve 6 see above, however 6.H.01 … 6.H.32
6.L.01 … 6.L.32 6 - 99
Proceeding
4.H.01111 4.HH H H.01 4.H.0 0 0 01 4.H.01111 scrolling with
button
→
100.0
4. LLLL.01 4.H.99 9 91 4.H.099 9 9
by scrolling with
button plus or minus
