VEGA Grieshaber KG

Electronic level measurement
Am Hohenstein 113
Postfach 11 42
D-77757 Schiltach
Phone 0 78 36/50-0
Fax 0 78 36/50-201

4

1

1

2

3

2

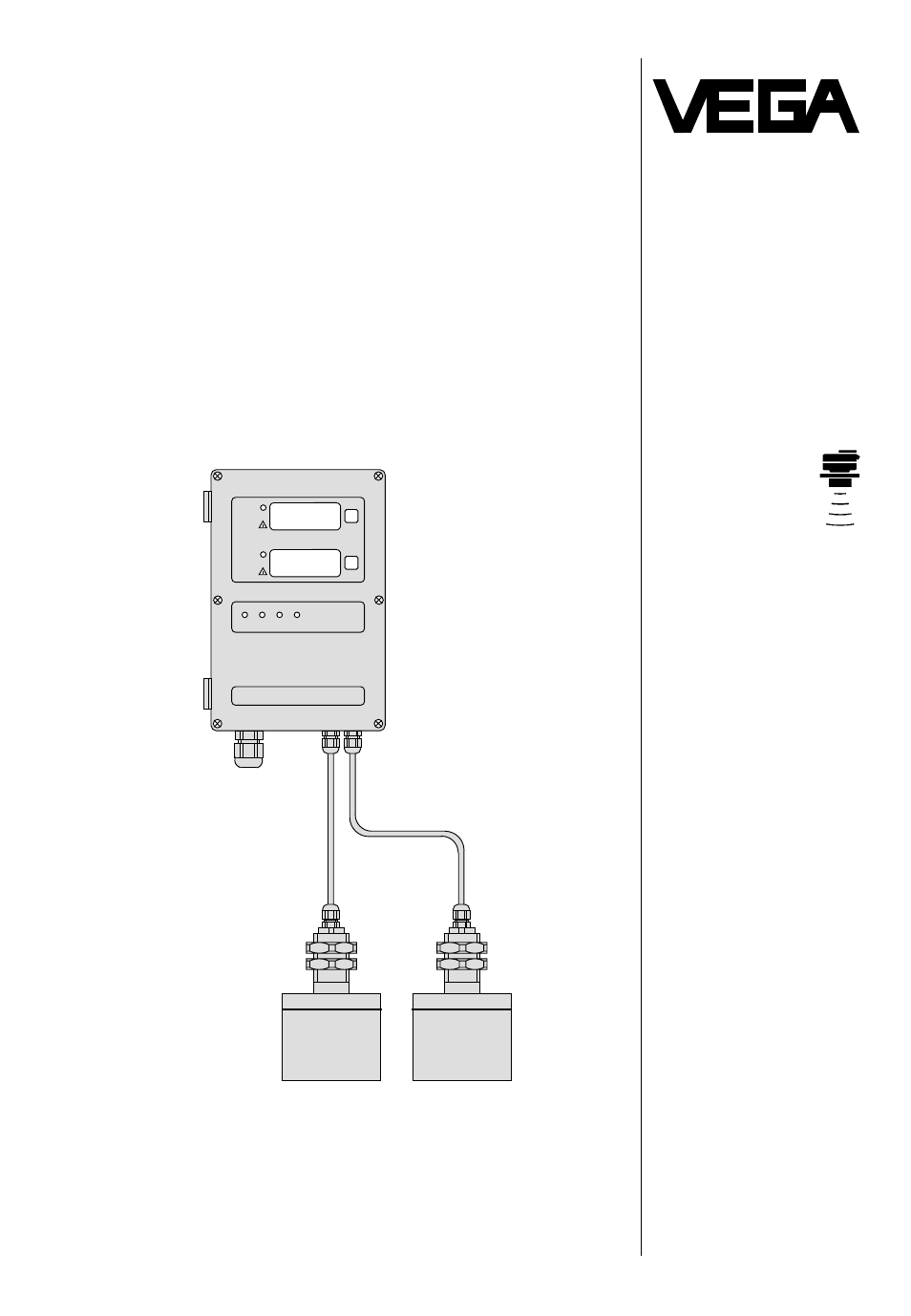

VEGASON

VEGASON
71 - 2 … 75 - 2

TIB • Technical Information • Operating Instructions

Pulse-Echo
measuring system

Two channel operation

2-wire level measurement or
differential measurement

Operating range up to
- 5 m
- 10 m
- 20 m
- 30 m

Compact unit with modules
for relay and current outputs

Linearization

Sensor optimization

VEGASON 71 - 2 and 73 - 2
approved in hazardous areas
of Ex - zone 1

5.00

5.00
