Measurement, Display function
30 71 - 2 … 75 - 2

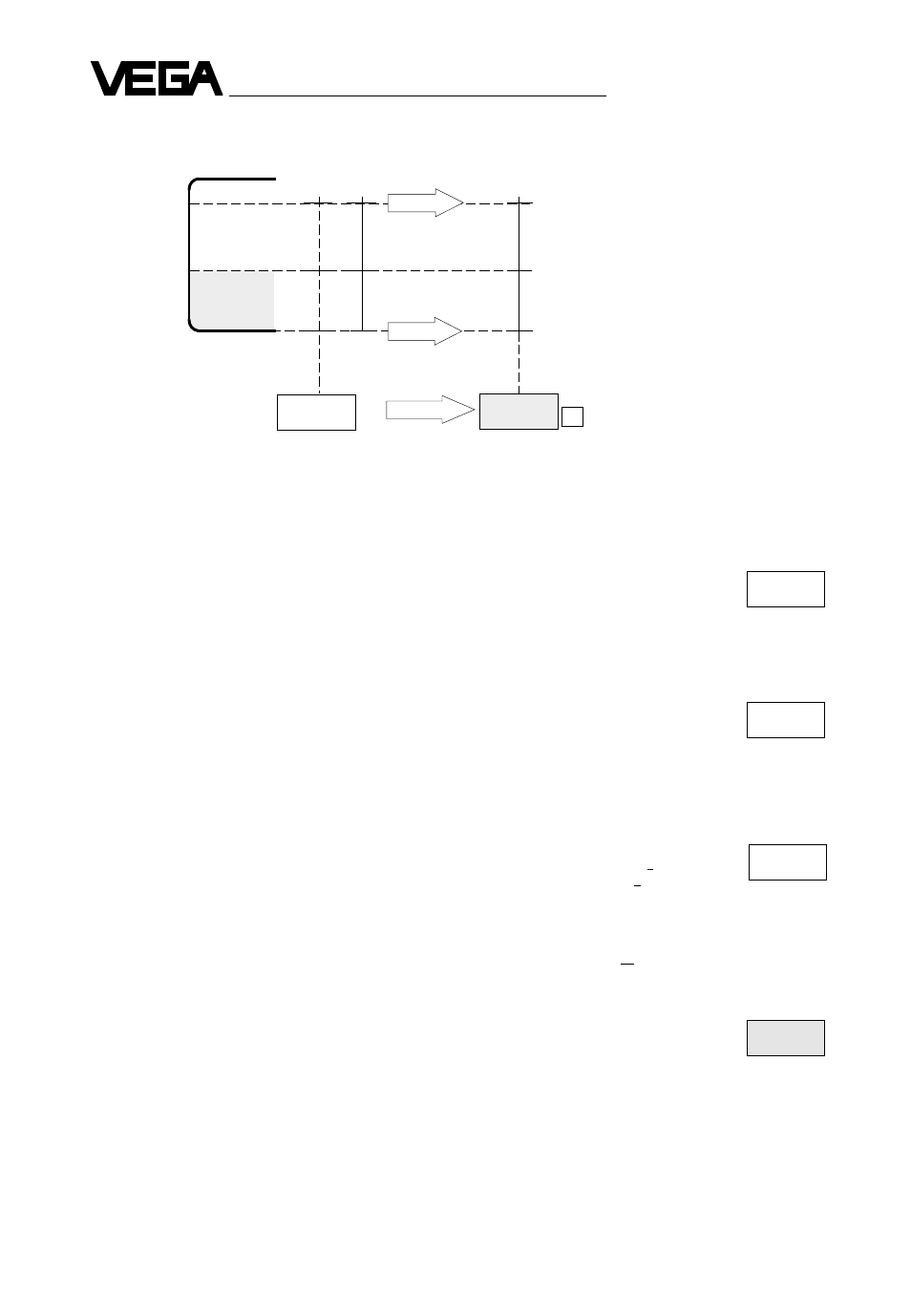

Programming example
After multiplying
-
the distance corresponds
to 9 … 1 m
- the level corresponds to
10 … 4000 hl
(10 hl = min. quantity)
Example display
10 hl … 4000 hl
Multiplier for 0 % ...................................................... • select mode 0 - 13 in MODEFIELD
• program the value 001.0 in PARAMETER FIELD
• then store with STO-button
The actual distance of 5.00 (m)
remains indicated on display 1.
Multiplier for 100 % .................................................. • select mode 0 - 14 in MODEFIELD
• program the value 400.0 in PARAMETER FIELD
• then store with STO-button
The actual distance of 5.00 (m)
remains indicated on display 1.
Measuring unit and pattern ...................................... • select mode 0 - 15 in MODEFIELD
• program the figure 3 in PARAMETER FIELD
• then store with STO-button
50 % of the previously programmed
multiplication factor (^ 199.5) plus
the min. quantity (^ 1,0) is indicated
on the display, i.e.
Position of decimal point .......................................... • select mode 0 - 16 in MODEFIELD
• shift with button
→
the position of the decimal
point 1 x to the right
• then store with STO-button
The desired range is displayed.
Insert pattern hl.
Follow the same procedure for channel 2, but use
modes 0 - 23 … 0 - 26 or for differential measure-
ment, modes 0 - 33 … 0 - 36.
100 %
50
Mode 14
Mode 13
4000 hl
2005
10 0
Mode 15+16
1 m
5 m
9 m
Niveau Distanz
hl
5.00 2005
5.00
5.00
200.5
2005
Distance level
(linearized)
