Vutec LECTRIC IV - Installation Instructions User Manual
Page 5
4
04/21/08 Rev D
LIIe-INST_D
If the unit was shipped complete with the screen roller assem bly installed; proceed to SCREEN ROLLER
ASSEMBLY REMOVAL Section for instructions.
CAUTION: BE SURE TO PLACE THE CONNECTING WIRES INSIDE BEFORE PROCEEDING WITH THE HOUSING INSTALLATION.
Install the housing once the screen roller assembly is removed. Be sure the housing is level and plumb.

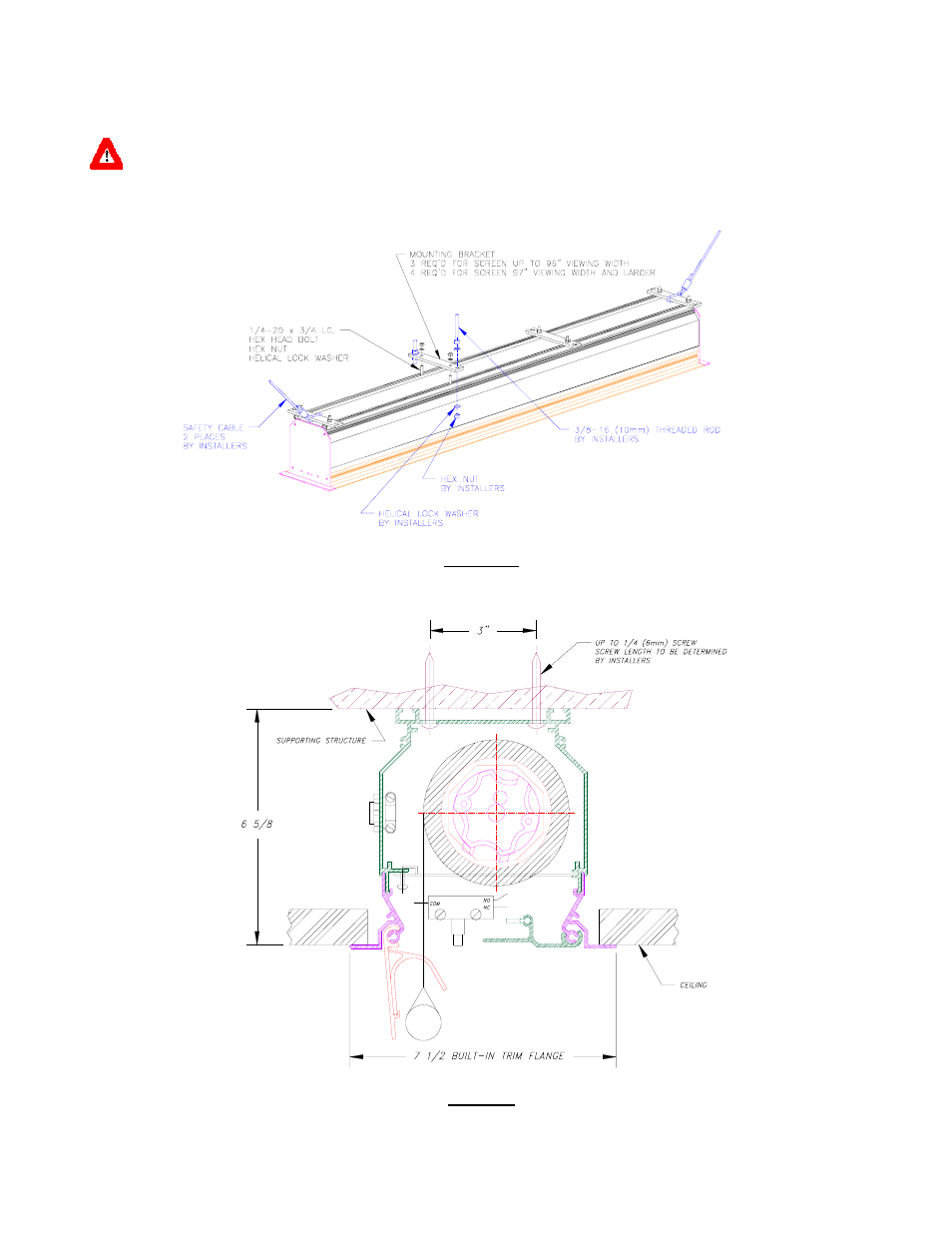

Figure 2c
Option 1 - Suspended Mounting
Figure 3
Option 2 – Blind Pocket Mounting
