120VAC : ORANGE
235VAC : BROWN
120VAC : BROWN
235VAC : ORANGE
BLACK
BLACK
BLACK
•

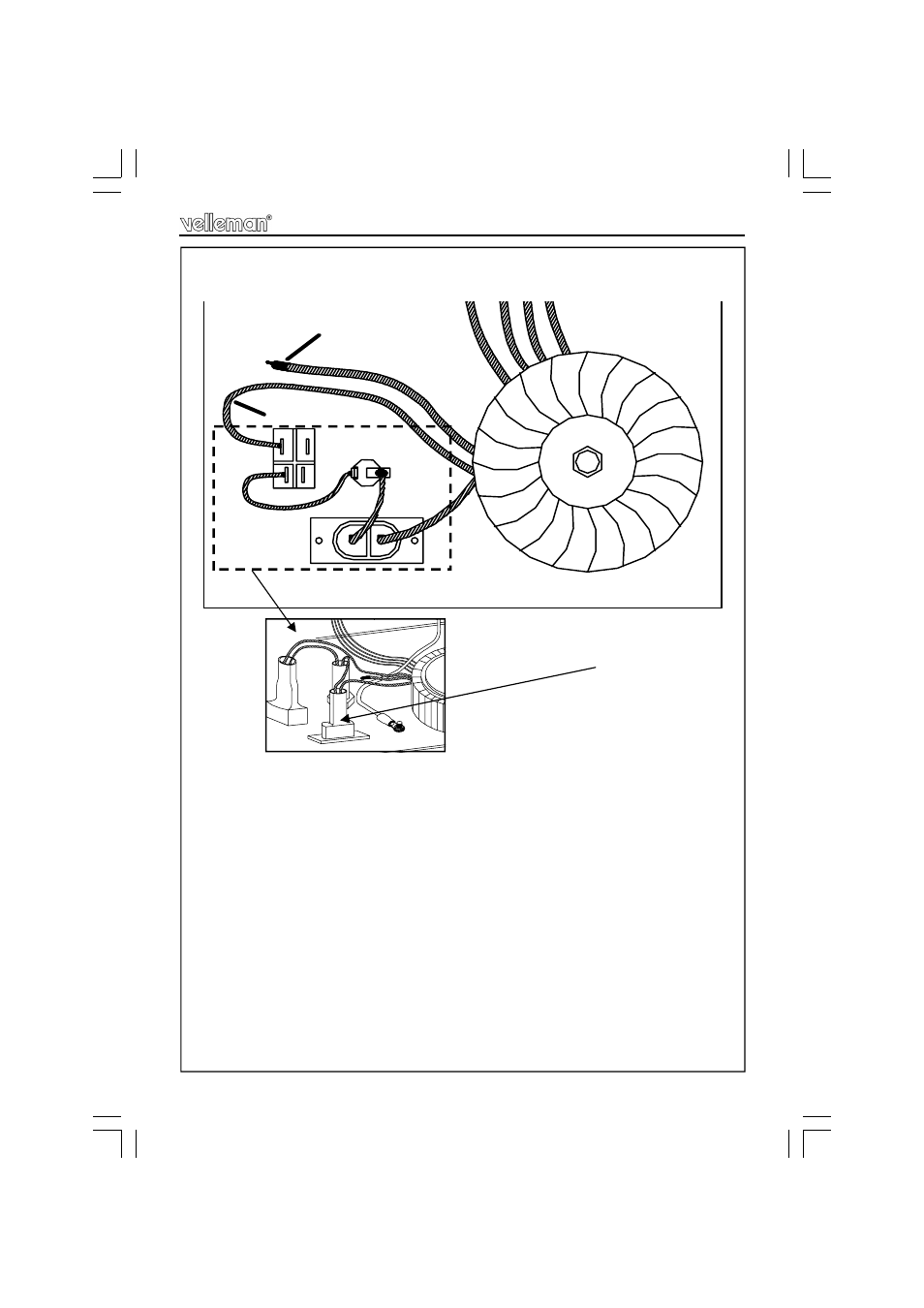

Trim the black transformer wire to a length of 14cm. Slide a piece of heatshrink
tube (3cm) over the black transformer wire.
•
Solder the wire to the AC connector
•
Use the remaining black wire to connect the second AC connector lug with the
center connector of the fuse holder.
Don't forget to slide a piece of heatshrink tube (4cm) over the wire.
•
Connect the remaining fuseholder-connector with the power switch.
Don't forget the heatshrink tube.
•
Depending on your local AC voltage, connect either the brown wire (100-120VAC)
or the orange wire (220-245VAC) to the power switch.
Don't forget the heatshrink tube.
•
Trim the remaining wire to a lenght of 11cm. Insulate the end by means of a piece
of heatshrink tube.
•
Group the wires by means of two cable ties.
HEATSHRINK TUBE
Mounting power supply section
Unused lead
