Velleman NC5MDL1 - Manual

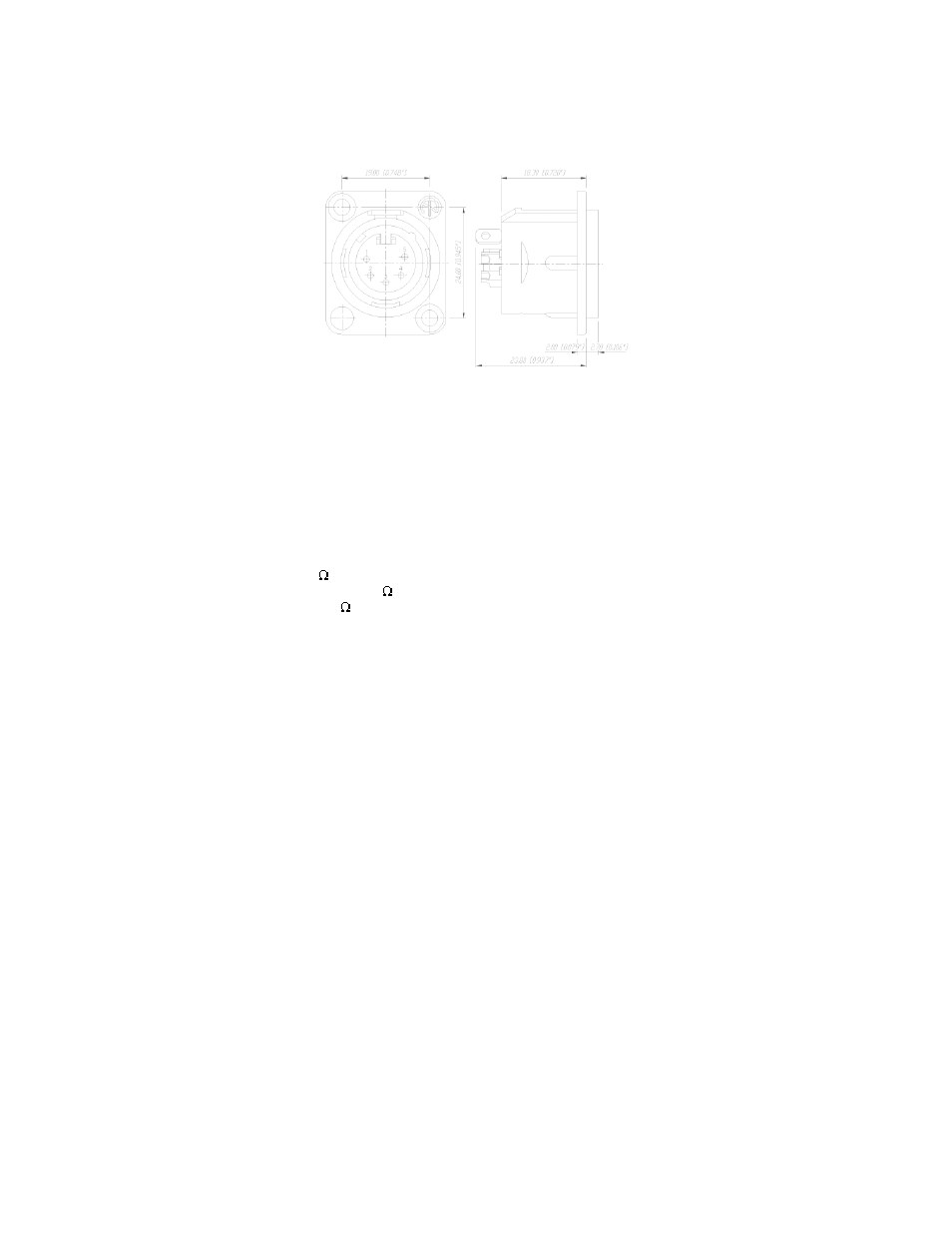

NC5MDL1
5 pole male receptacle. Cups for wire soldering. Nickel housing and silver contacts.
XLR Chassis Connectors / DL Series
Unified metal shell for male and female. RF-protected. Solder cups, or PCB terminations (4 and 5
pole only). UL recognized component.
TECHNICAL DATA
Electrical
Number of contacts: 3 - 7
Rated voltage: 50 V ac
Contact resistance: ≤ 5 m
Insulation resistance - initial: > 2 G
- after damp heat test: > 1 G (IEC 68-2-30)
Dielectric strength: 1500 V dc
Mechanical
Lifetime: > 1000 mating cycles
Insertion / withdrawal force: ≤ 20 N
Retention method (Female versions only): - standard: latch lock
- ´-0´ version: retention spring
Separating force: ≥ 20 N
Rated current:
3 pole: 16 A
4 pole: 10 A
5 and 6 pole: 7.5 A
7 pole: 5 A
AWG:
3 pole: 2.5 mm²/14 AWG
4 pole: 1.5 mm²/16 AWG
5 und 6 pole: 1.0 mm²/18 AWG
7 pole: 1.0 mm²/18 AWG
Capacitance between contacts
3 pole: ≤ 4 pF
4 pole: ≤ 7 pF
5 und 6 pole: ≤ 7 pF
7 pole: ≤ 9 pF
Materials
Shell: ZnAl4Cu1, gal Ni or black Cr plating
Insert: PA 6.6 30% GR (glass reinforced)
