Velleman К8077 User Manual
Page 19
19

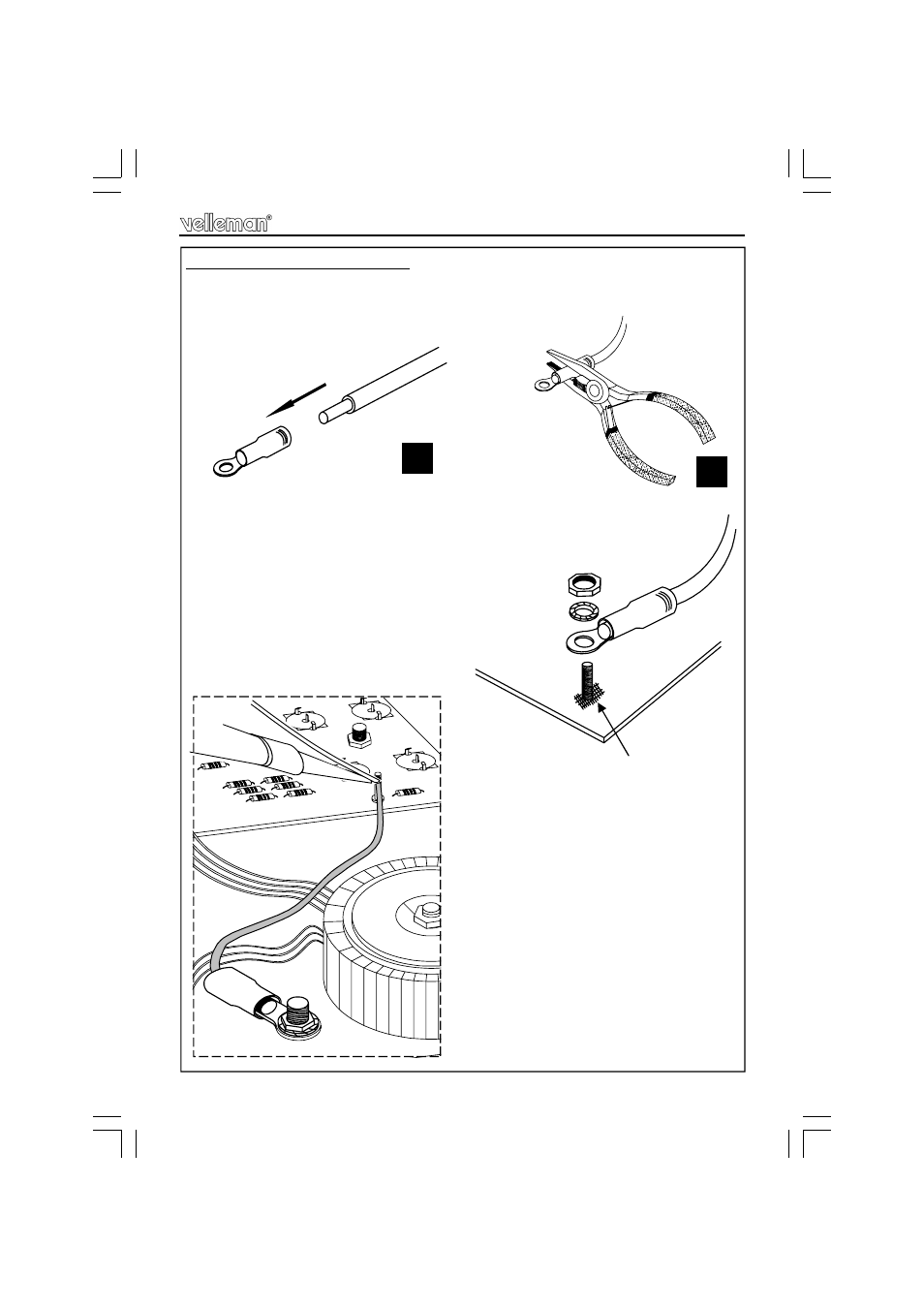

5. Wiring the ground connection
Connect one end of the cable to the red ring terminal.
Connect the ring terminal to the chassis
by means of a black bolt, spring washer
and nut.
Solder the other end to the PCB tab
(SK12)
Mounting power supply section
1
2
M3 nut
spring washer
16mm M3 bolt
Scratch off anodizing
for better conduction
