Velleman NAC3FCA - Manual

NAC3FCA

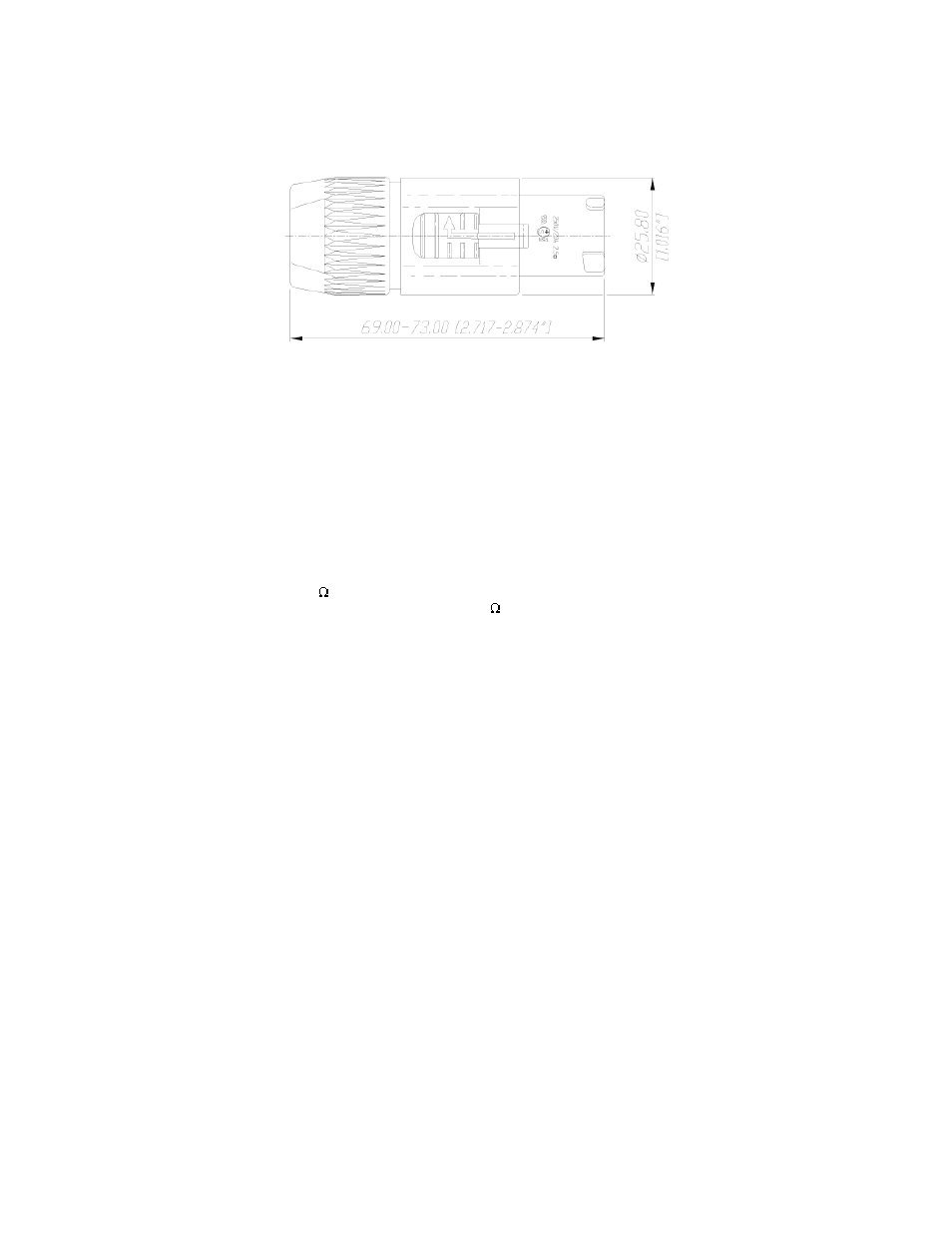

Cable connector, quick lock with securing lever, A-type for power-in, screw terminals.
Industrial Connectors / PowerCon®
Locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground
contact. Fast and easy locking system. High current capacity (20 A rated). Extremely robust and
reliable. Meets all prevailing safety standards. UL recognized, VDE certified and SEV approved. Very
good cable handling and protection. Note: The PowerCon® is a connector without breaking capacity,
i.e. the PowerCon® should not be connected or disconnected under load or live!
TECHNICAL DATA
Electrical
Number of contacts: 2 + PE
Rated current per contact: 20 A rms
Rated voltage: 250 V ac
Dielectric strength: 4000 V dc
Contact resistance: ≤ 3 m
Insulation resistance after damp heat test: > 100 M
Creepage distance: according to IEC 664-1
Safety ground: Premating
Mechanical
Retention method: Quicklock with securing lever
Cable O.D. range: 5 - 15 mm
Cable retention force: = 220 N, depending on cable dia and material
Wiring: - Cable: screw-type terminals or soldering nom. wire size/contact: 2.5 mm² / 14 AWG
- Chassis: flat tabs for FASTON 0.187" x 0.02" (4.8mm x 0.5mm) or soldering
Solderability: complies with IEC 68-2-20
Materials
Housing: PA 6 30% GR
Insert: PA 6 30% GR
Contacts: CuZn39Pb3 / CuSn6
Contact surface: L+N 20 µm Ag plated, Earth 4 µm Ag plated
Chuck: POM
Temperature range: -30°C to +80°C
Flammability: UL94HB
Protection class (mated): IP20
CODING
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a
short circuit. Mating connectors (combination) are identified by mechanical keyways and by color:
- A-type (POWER-IN)
Cable connector: blue
Chassis connector: blue
- B-type (POWER-OUT)
Cable connector: grey, with blue bushing
Chassis connector: grey
