Page 25

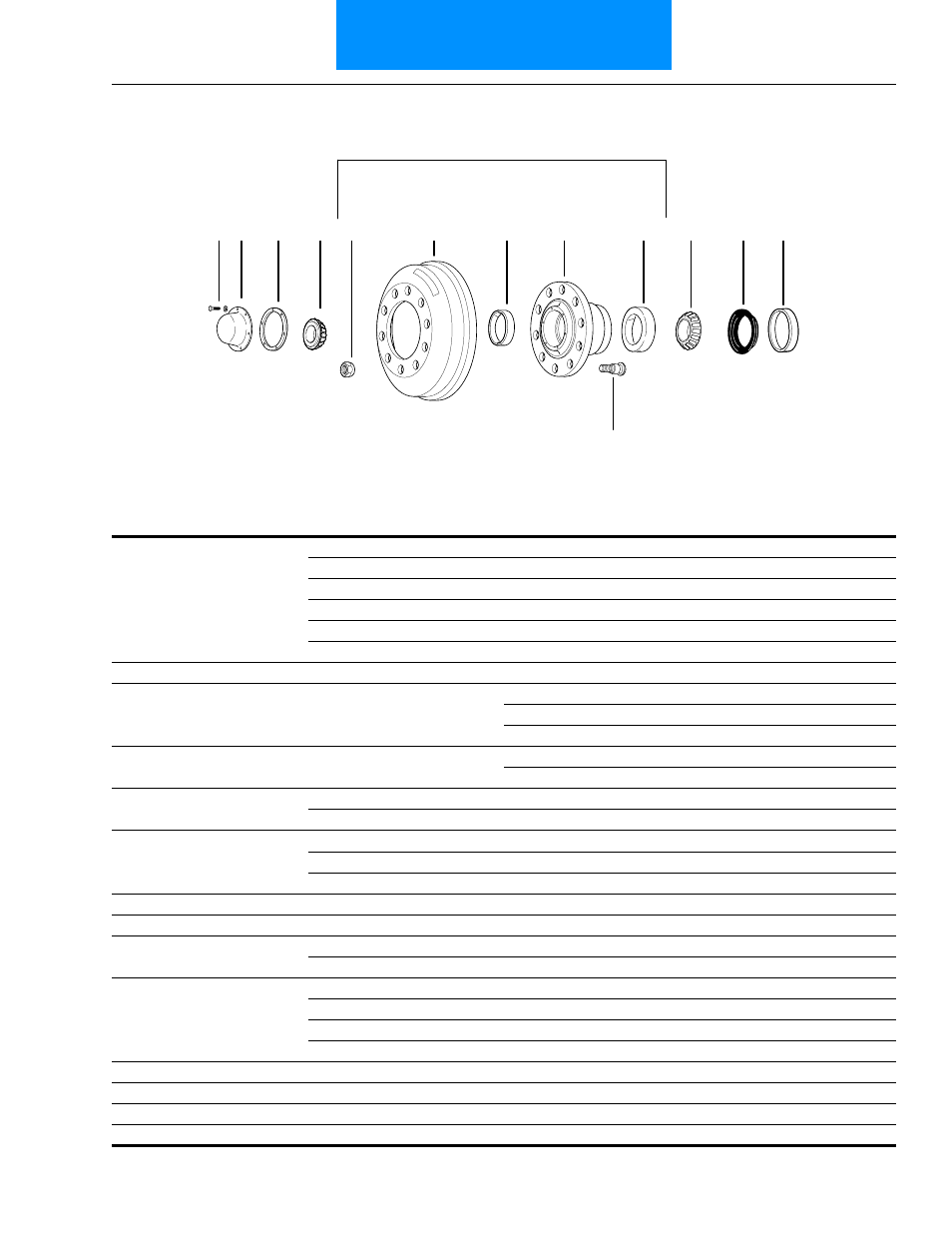

EFA Family Hub and Drum
23
EFA Family Hub and Drum
12F4, 13F5 Hub and Drum Parts List
Item No.
Part Name
Part No.
Remarks
1
Hub & Drum Assy LH
821339
15 x 4 Drum
Hub & Drum Assy RH
821340
15 x 4 Drum
Hub & Drum Assy LH
821341
16.5 x 5 Drum
Hub & Drum Assy RH
821342
16.5 x 5 Drum
Hub & Drum Assy LH
827343
16.5 x 6 Drum
Hub & Drum Assy RH
821344
16.5 x 6 Drum
2
Bolt & Lockwasher Assy
821241
3
Hub Cap
821187
821338
Stemco w/o Plug (Window)
821907
Stemco w/Plug (Window)
4
Hub Cap Gasket
821188
1008569
Stemco
5
Outer Cap Nut LH
F-1847-7
Outer Cap Nut RH
F-1847-8
6
Brake Drum 15 x 4
1008580-03
Brake Drum 16.5 x 5
1008580-04
Brake Drum 16.5 x 6
1008580-05
7
Inner Bearing Cone
1008585
8
Inner Bearing Cup
1008911
9
Front Hub Assy LH-15 x 4
809048
Includes Items 8, 10 & 11
Front Hub Assy RH-15 x 4
809049
10
Serrated Stud LH-15 x 4
809046
Serrated Stud RH-15 x 4
809047
Serrated Stud LH-16.5
1008580-06
Serrated Stud RH-16.5
1008580-07
11
Outer Bearing Cup
14024
12
Outer Bearing Cone
1008586
13
Hub Seal
821346
14
Seal Ring
821345
9
11
6
12
2
3
4
5
10
1
8
7
13
14
