EFA Family I-Beams
11
EFA Family I-Beams
EFA12F4 and EFA13F5 I-Beams
Note: 12F4 and 13F5 are rated for the same capacity, the 13F5 uses a drop beam and different tie rod arms. All other parts are the same.
“A” “B” “C” “D” “E” “F” “G” “H” Part No.
31.25 3.812 4.25 .656 .63 .781 807595
4.812 4.50 .781 1.00 .781 810460
4.25 .812 .69 .812 806717
32.00 3.812 4.25 656 .63 .781 1009349
32.50 4.312 4.25 .765 .62 .812 1006079
.812 .78 .812 1004811
4.438 4.25 .765 .62 .938 1004810
4.812 4.25 .812 .63 .812 1.94 .812 1004758 *
1006800
4.50 .781 1.00 .781 1009132
.812 .69 .812 1008336
32.75 3.812 4.25 .812 .69 .812 1006122
33.00 4.812 4.25 .812 .69 .812 1008054
4.938 4.25 .765 .69 .938 1008544
33.94 4.310 4.25 .812 .50 .812 809591
34.00 3.812 4.25 .656 .63 .781 806549
.781 .62 .812 807435
3.940 4.25 .812 .69 .940 808519
.650 .75 .812 807873
4.812 4.25 .812 .63 .812 1.94 .812 1008434
.78 .812 1005773
4.938 4.25 .812 .63 .938 1.94 .812 1008889
34.50 4.938 4.25 813 .75 .940 809491
35.00 4.812 4.25 .812 .69 .812 807901
35.25 4.812 4.25 .812 .62 .812 1009230
3.820 4.75 .781 .62 .781 1006366
36.00 4.812 4.25 .781 .62 .781 1006905
4.25 1.000 .75 .781 1008759
36.25 1.650 4.84 1.000 .63 .750 810296
38.00 4.312 4.25 .765 .62 .812 1008814
39.62 4.312 4.25 .812 .69 .812 1008615
26.76 812350

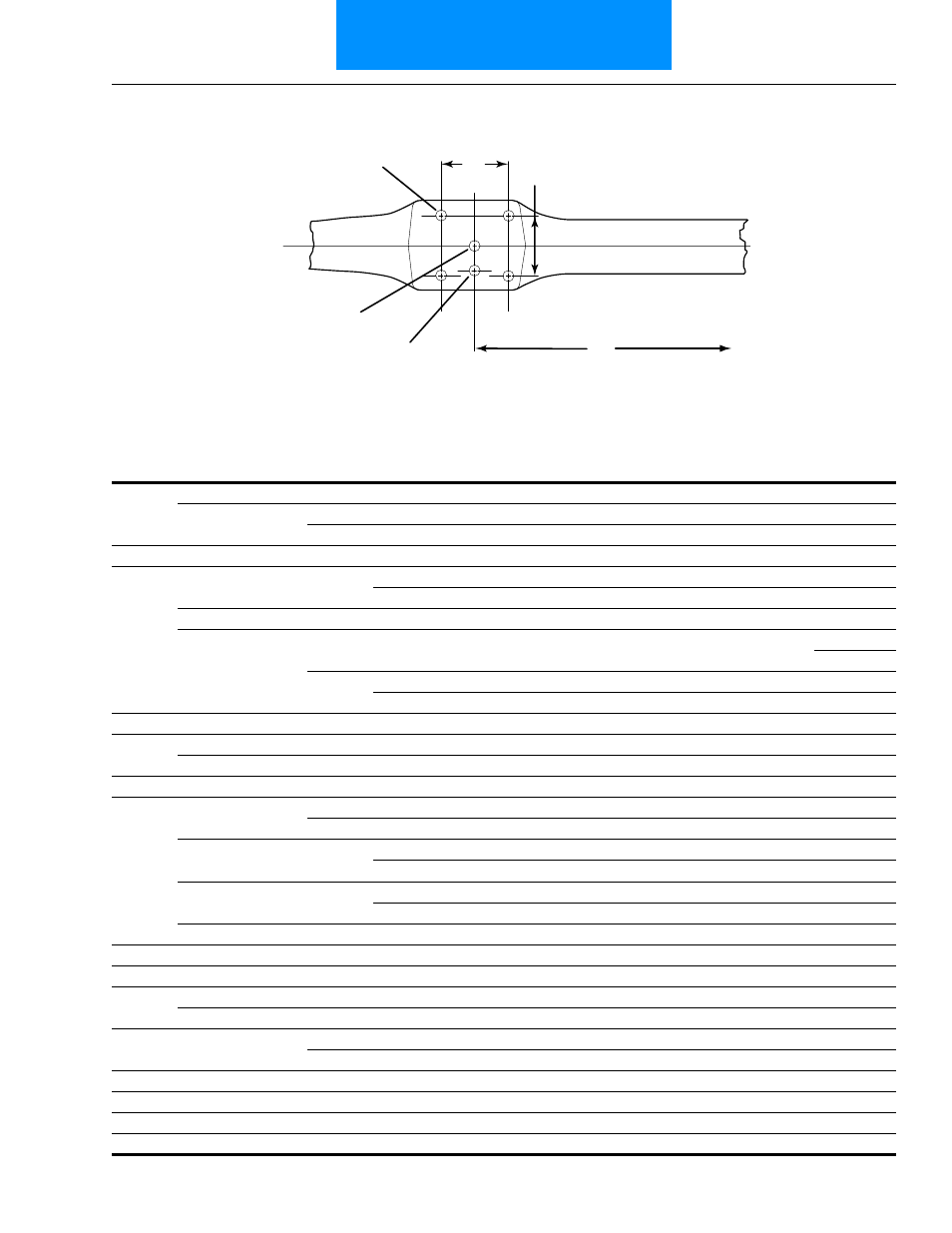

"A"
"G"
"C"
"B"
"E" Dia. & Depth
"F" Dia. 4 Holes
