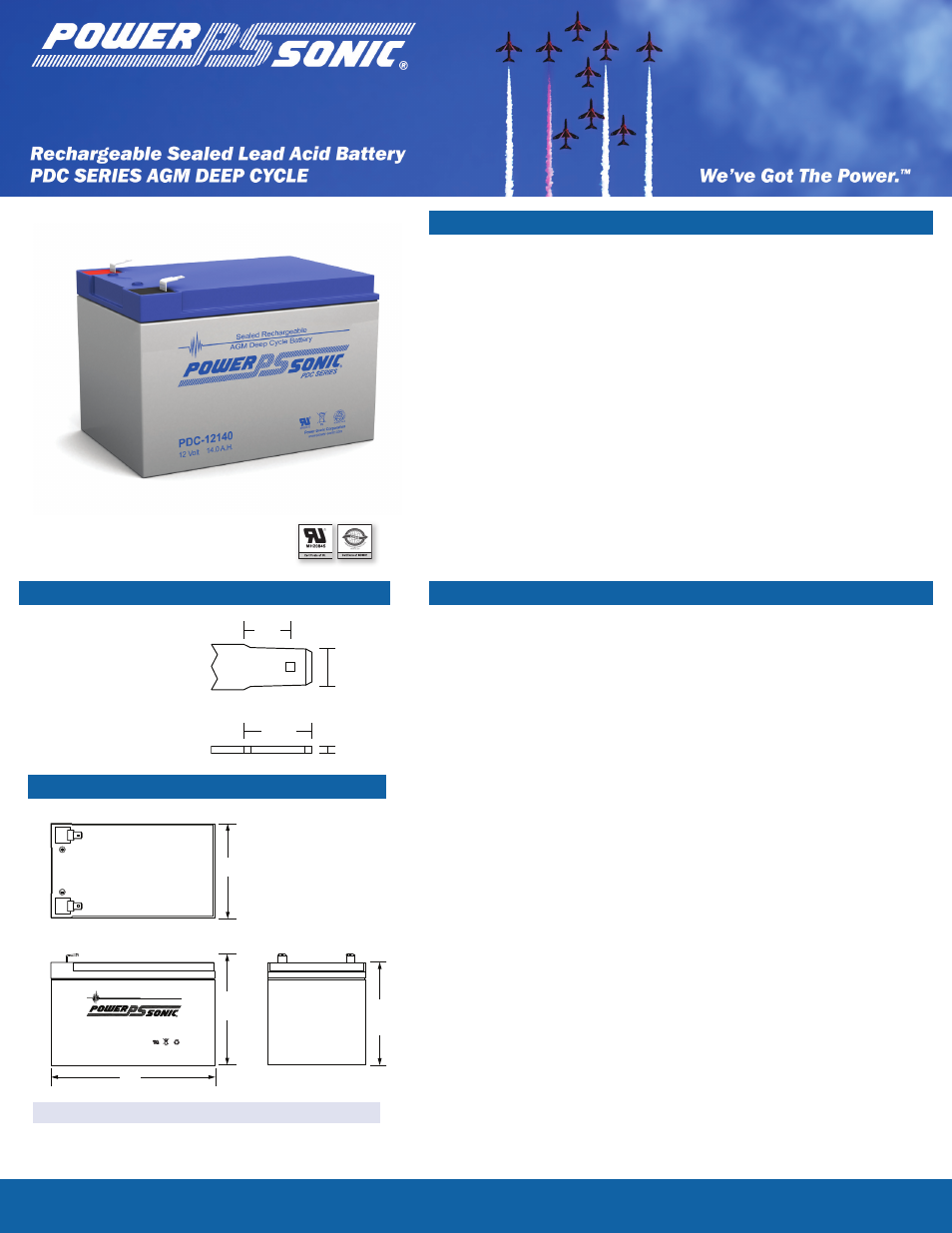

Power-Sonic PDC-12140 User Manual
0 ah
PDC-12140
12 Volt 14.0 A.H.
Power-Sonic Corporation
B
AT
T E
RY
MUS
TB ER
EC
YC
LE
D
Pb
NONSPILLABLE
www.power-sonic.com
MH20845
®
Sealed Rechargeable
AGM Deep Cycle Battery
PDC SERIES
L
HT
W
H
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
Physical Dimensions: in (mm)
Features
Absorbent Glass Mat (AGM) technology for superior
performance
Valve regulated, spill proof construction allows safe
operation in any position
Oversize negative plates and a specialized paste
formulation provide true deep cycle performance.
Special additives in the paste ensure superior
performance in deep discharge situations.
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certified
U.L. recognized under file number MH 20845
•
•
•
•
•
•
•
•
Performance Specifications
N
ominal Voltage ........................................................................ 12 volts (6 cells)
Nominal Capacity
20-hr. (700mA to 10.50 volts) ..................................................... 14.00 AH
10-hr. (1.3A to 10.50 volts) .......................................................... 13.00 AH
8-hr.
(1.59A to 10.50 volts) ........................................................ 12.72 AH
5-hr.
(2.28A to 10.20 volts) ........................................................ 11.40 AH
1-hr.
(8.40A to 9.00 volts) ............................................................ 8.40 AH
15-min. (25.7A to 9.00 volts) .............................................................. 6.43 AH
Approximate Weight ............................................................. 9.5 lbs. (4.30 kg)
Energy Density (20-hr. rate) ............................... 1.82 W-h/in
3
(110.83 W-h/l)
Specific Energy (20-hr. rate) .............................. 16.85 W-h/lb (37.14 W-h/kg)
Internal Resistance (approx.) ................................................... 14.0 milliohms
Max Discharge Current (7 Min.) ................................................... 39 amperes
Max Short-Duration Discharge Current (10 Sec.) ................... 130 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ............................................................. PSC-122000A-C
PDC-12140
www.power-sonic.com
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
Terminals (mm)
L:
5.96 (151) W: 3.92 (100) H: 3.82 (97) HT: 3.98 (101)
12 Volt 14.0 AH
@ 20-hr. rate
13.0 AH
@ 10-hr. rate
7.95
6.35
3.4
0.8
F2 - Quick disconnect
tabs, 0.250” x 0.032”
- Mate with AMP. INC
FASTON “250” series
•
