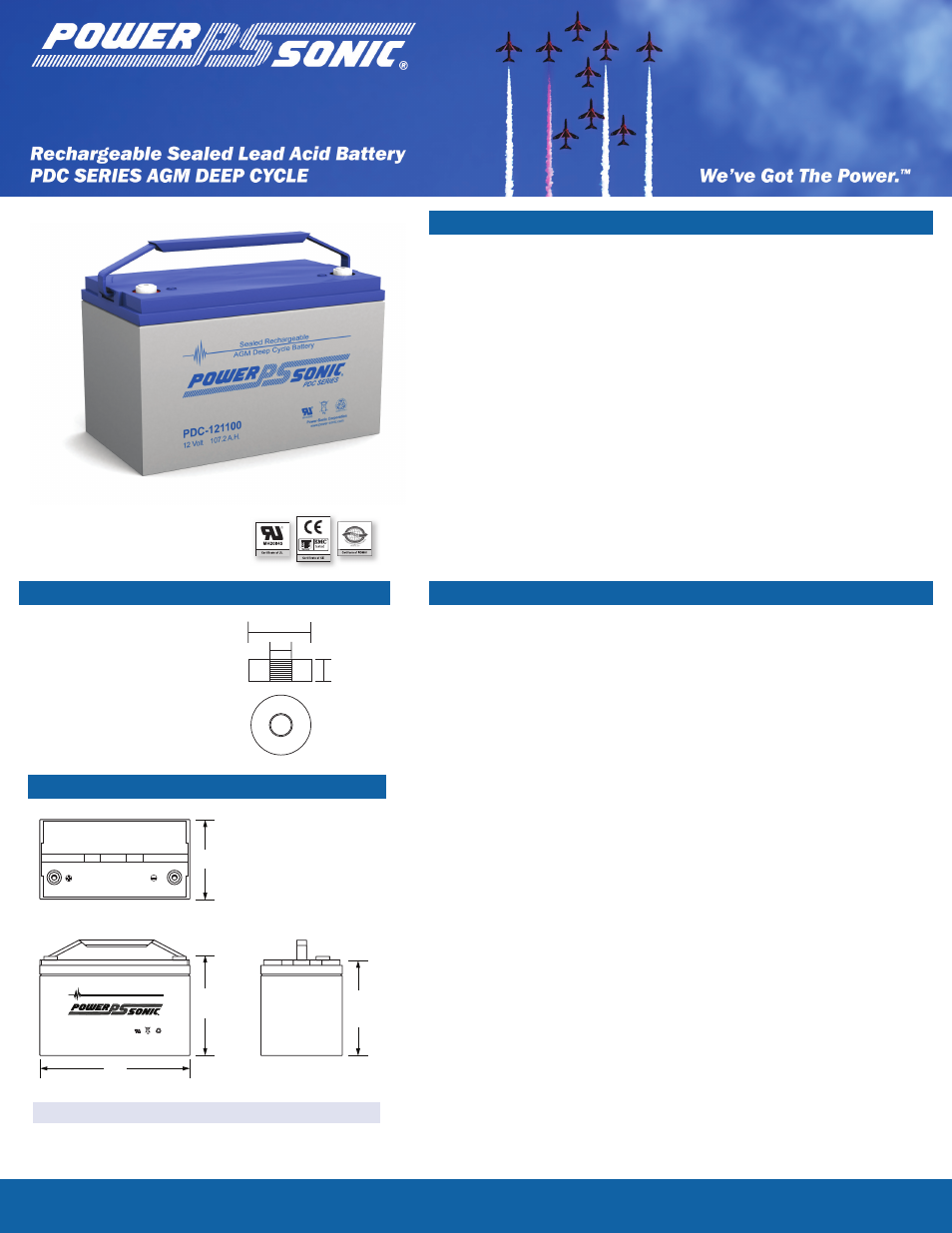

Sealed Rechargeable

AGM Deep Cycle Battery

PDC SERIES

PDC-121100

12 Volt 107.2 A.H.

Power-Sonic Corporation

BA

TT

E

RY

MU

ST BER

EC

YC

LE

D

Pb

NONSPILLABLE

www.power-sonic.com

MH20845

®

L

HT

W

H

20mm

7mm

M8

Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for

height dimensions. All data subject to change without notice.

Physical Dimensions: in (mm)

Features

Absorbent Glass Mat (AGM) technology for superior

performance

Valve regulated, spill proof construction allows safe

operation in any position

Oversize negative plates and a specialized paste

formulation provide true deep cycle performance.

Special additives in the paste ensure superior

performance in deep discharge situations.

Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and

C.A.B. certifi ed

U.L. recognized under fi le number MH 20845



Performance Specifi cations

N

ominal Voltage ........................................................................ 12 volts (6 cells)

Nominal Capacity
20-hr. (5.36A to 10.50 volts) ......................................................... 107.2 AH
10-hr. (10.0A to 10.50 volts) ........................................................ 100.0 AH
8-hr.

(12.2A to 10.50 volts) ........................................................... 97.6 AH

5-hr.

(17.5A to 10.20 volts) ........................................................... 87.7 AH

1-hr.

(64.6A to 9.00 volts) ............................................................ 64.6 AH

15-min. (197.6A to 9.00 volts) ............................................................ 49.3 AH
Approximate Weight ........................................................... 66.2 lbs. (30.0 kg)
Energy Density (20-hr. rate) ................................. 1.62 W-h/in3 (99.14 W-h/l)
Specifi c Energy (20-hr. rate) .............................. 18.13 W-h/lb (39.96 W-h/kg)
Internal Resistance (approx.) ..................................................... 4.9 milliohms
Max Discharge Current (7 Min.) ............................................. 321.6 amperes
Max Short-Duration Discharge Current (10 Sec.) .............. 1070.2 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ........................................................... PSC-1210000A-C

PDC-121100

www.power-sonic.com

To ensure safe and effi cient operation always refer to the latest edition of our Technical Manual, as published on our website.

All data subject to change without notice.

Terminals (mm)

L:

12.99 (330) W: 6.81 (173) H: 8.35 (212) HT: 8.66 (220)

12 Volt 107.2 AH

@ 20-hr. rate

100.0 AH

@ 10-hr. rate

T11: Threaded insert

w. 8 mm stud fastener
