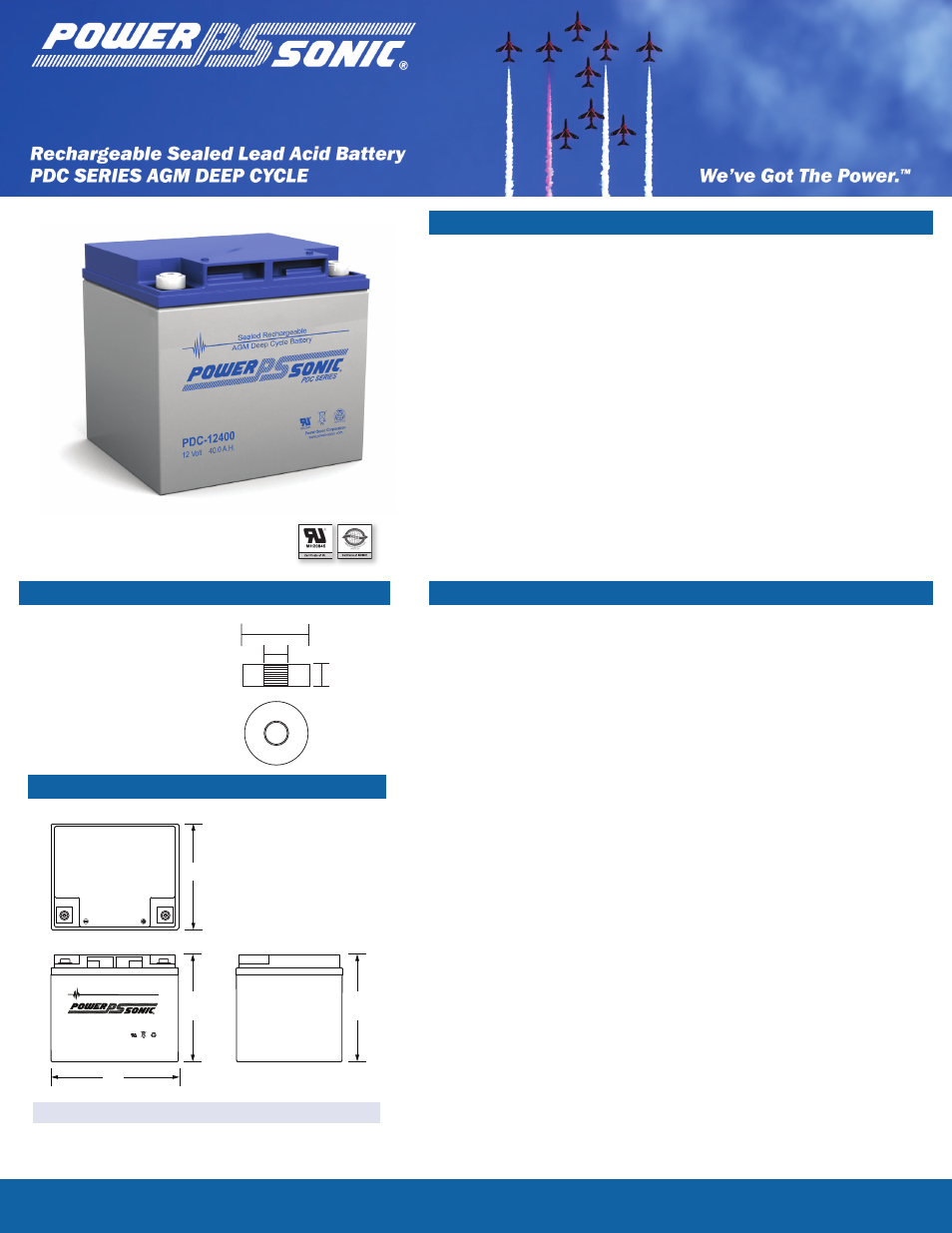

Power-Sonic PDC-12400 User Manual
0 ah

Sealed Rechargeable
AGM Deep Cycle Battery
PDC SERIES
PDC-12400
12 Volt 40.0 A.H.
Power-Sonic Corporation
B
AT
T E
RY
MUS
TB ER
EC
YC
LE
D
Pb
NONSPILLABLE
www.power-sonic.com
MH20845
®
L
HT
H
W
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
Physical Dimensions: in (mm)
Features
Absorbent Glass Mat (AGM) technology for superior
performance
Valve regulated, spill proof construction allows safe
operation in any position
Oversize negative plates and a specialized paste
formulation provide true deep cycle performance.
Special additives in the paste ensure superior
performance in deep discharge situations.
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certified
U.L. recognized under file number MH 20845
•
•
•
•
•
•
•
•
Performance Specifications
N
ominal Voltage ........................................................................ 12 volts (6 cells)
Nominal Capacity
20-hr. (2.00A to 10.50 volts) .......................................................... 40.0 AH
10-hr. (3.80A to 10.50 volts) .......................................................... 38.0 AH
8-hr.
(4.65A to 10.50 volts) ........................................................... 37.2 AH
5-hr.
(6.67A to 10.20 volts) .......................................................... 33.3 AH
1-hr.
(24.5A to 9.00 volts) ............................................................. 24.5 AH
15-min. (75.0A to 9.00 volts) .............................................................. 18.7 AH
Approximate Weight ........................................................... 32.0 lbs. (14.5 kg)
Energy Density (20-hr. rate) ................................. 1.35 W-h/in
3
(82.46 W-h/l)
Specific Energy (20-hr. rate) .............................. 14.25 W-h/lb (31.42 W-h/kg)
Internal Resistance (approx.) ..................................................... 9.0 milliohms
Max Discharge Current (7 Min.) ................................................ 114 amperes
Max Short-Duration Discharge Current (10 Sec.) ................... 380 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ............................................................. PSC-124000A-C
PDC-12400
www.power-sonic.com
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
Terminals (mm)
L:
7.76 (197) W: 6.50 (165) H: 6.69 (170) HT: 6.69 (170)
12 Volt 40.0 AH
@ 20-hr. rate
38.0 AH
@ 10-hr. rate
16mm
6mm
M6
T6: Threaded insert w.
6 mm stud fastener
•
