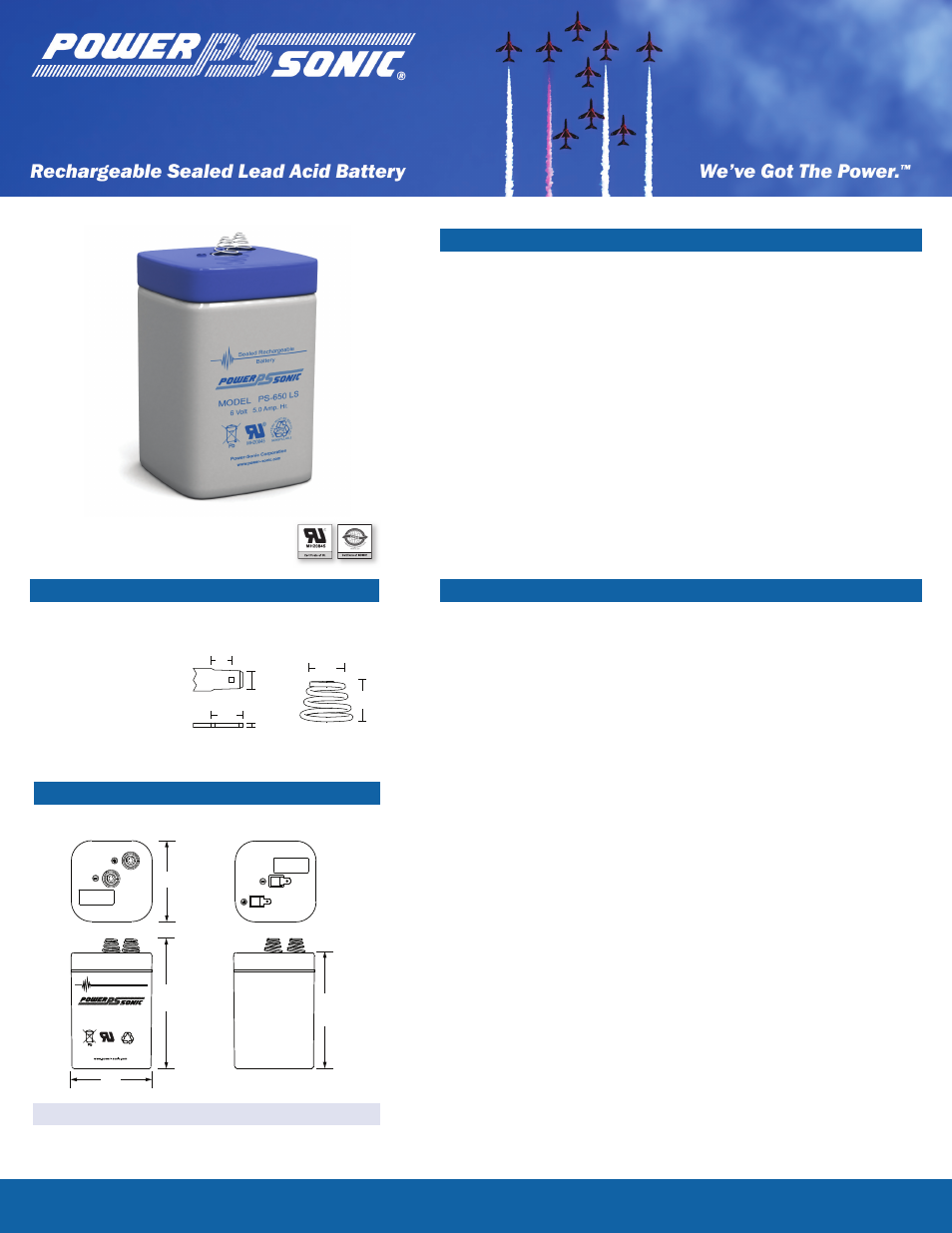

Power-Sonic PS-650LS - Manual

MH20845
®
MODEL PS-650 LS
6 Volt 5.0 Amp. Hr.
Power-Sonic Corporation
Sealed Rechargeable
Battery
B AT TE RY MU ST BE R EC YC LE D
Pb
NONSPILLABLE
L
HT
W
PS-650LS PS-650LF
H
6.35
4.75
18
3.2
9.0
F1 (PS-650LF) Spring (PS-650LS)
0.8
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
Physical Dimensions: in (mm)
Features
Absorbent Glass Mat (AGM) technology for superior
performance
Valve regulated, spill proof construction allows safe
operation in any position
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certifi ed
U.L. recognized under fi le number MH 20845
Available with spring or FASTON terminals
•
•
•
•
•
•
•
Performance Specifi cations
N ominal Voltage ...........................................................................6 volts (3 cells)
Nominal Capacity
20-hr. (250mA to 5.25 volts) .......................................................... 5.00 AH
10-hr. (430mA to 5.25 volts) .......................................................... 4.30 AH
5-hr.
(800mA to 5.10 volts) .......................................................... 4.00 AH
1-hr. (3A to 4.50 volts) .................................................................. 3.00 AH
15-min. (9.0A to 4.50 volts) ................................................................ 2.25 AH
Approximate Weight ........................................................... 1.80 lbs. (0.82 kg)
Energy Density (20-hr. rate) ................................ 1.09 W-h/in3 (66.67 W-h/l)
Specifi c Energy (20-hr. rate) .............................. 16.67 W-h/lb (36.74 W-h/kg)
Internal Resistance (approx.) ..................................................... n/a milliohms
Max Discharge Current (7 Min.) ............................................... 15.0 amperes
Max Short-Duration Discharge Current (10 Sec.) .................... n/a amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ................................PSC-61000A, 6500A-C, 61000A-C
PS-650LS & LF
www.power-sonic.com
To ensure safe and effi cient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
Terminals (mm)
Fully collapsible spring
type terminals
F1 - Quick disconnect
tabs, 0.187” x 0.032”
- Mate with AMP. INC.
FASTON “187” series
•
•
6 Volt 5.0 AH
L: 2.64 (67) W: 2.64 (67) H: 3.94 (100) HT: 4.64 (118)
