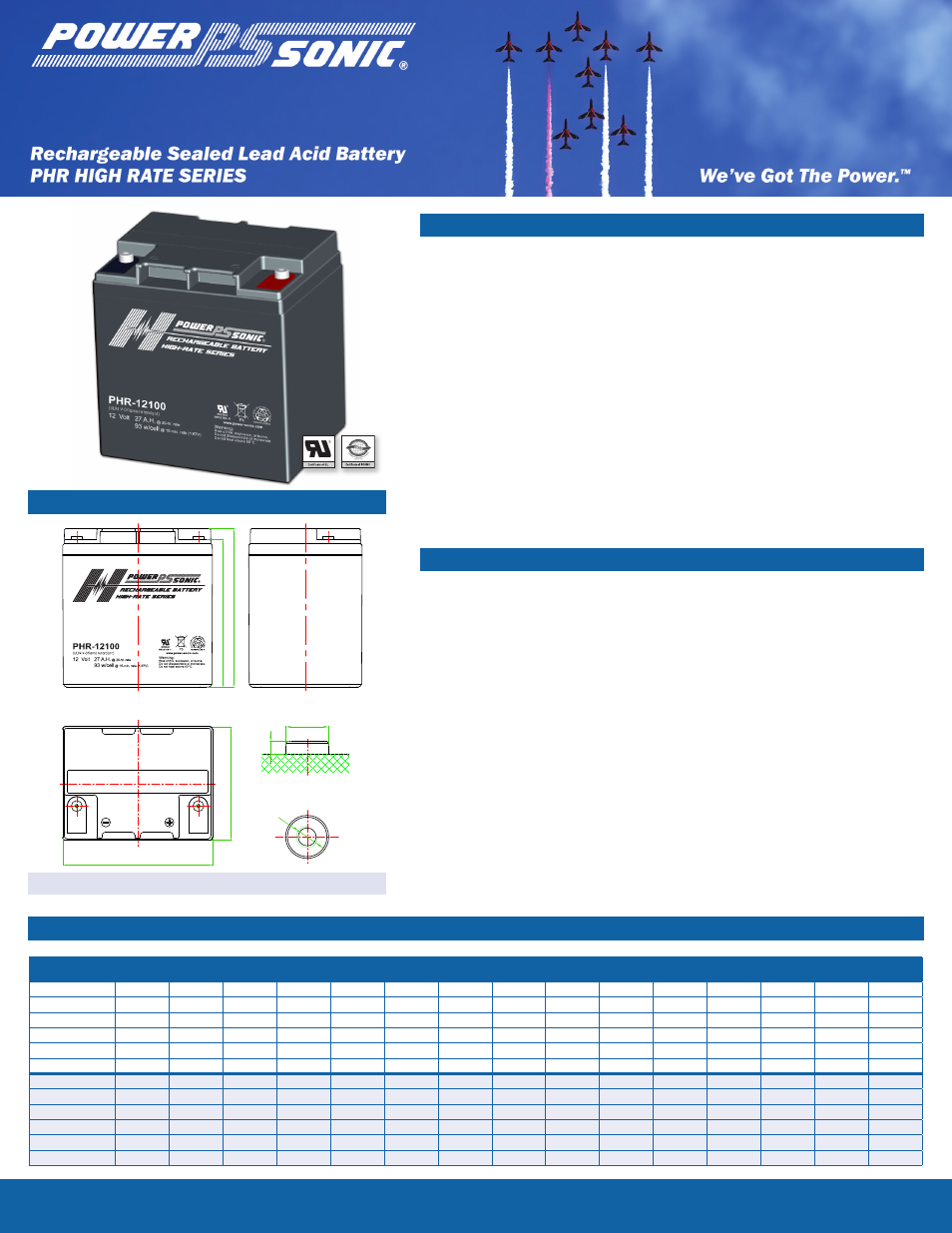

Power-Sonic PHR-12100 User Manual
12 volt 27 ah, 93 w/cell, Hr. rate

Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for height dimensions.
Physical Dimensions: in (mm)
Features
• Superb high-rate discharge characteristics that ensure reliable
performance in UPS applications for up to 10 years. UL recognized
• Flame retardant ABS case and cover to UL 94 V-O for superior
performance
• VRLA Absorbent Glass Mat (AGM) Technology guarantees safe
operation without maintenance and “non-restricted article” status for
transportation. Approved for transport by air. D.O.T., I.A.T.A. and
F.A.A. certified.
• Precision plate pasting for higher consistency with 100% load
testing to ensure uniform capacity
• Patented dual-paste process for enhanced active material bonding,
and computer guided volumetric electrolyte control for precision
filling
• Lead-calcium alloy grids and the use of high purity lead account for
superior shelf-life characteristics
Performance Specifications
Nominal Voltage ............................................... 12 volts (6 cells)
Nominal Power (15 min.) .......................................93 W/Cell
Rated Capacity
20-hr. (1.35A to 10.80 volts) ...................................... 27.0 AH
10-hr. (2.66A to 10.50 volts) ...................................... 26.6 AH
8-hr. (3.22A to 10.50 volts) ...................................... 25.8 AH
Approximate Weight .................................... 17.4 lbs. (7.9 kg)
Internal Resistance (approx.) ................................. 10 milliohms
Max Discharge Current (5 Sec.) ........................... 540 amperes
Charging Voltage @ 77°F (20° C)
Standby Use ............. 2.275 ± 0.025 V/Cell, (-3.3mV/°C/Cell)
Cycle Use .......................... 2.45±0.05 V/Cell, (-5 mV /°C/Cell)
Maximum Charging Current .......................................... 8.1 A
Case .................................. Flame Retardant ABS Plastic (UL 94 V-O)
PHR-12100
www.power-sonic.com
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
L: 6.46 (164) W: 4.92 (125) H: 6.89 (175) HT: 6.50 (165)
12 Volt 27 AH
@ 20-hr. rate
93 W/Cell
@ 15-min. rate
Constant Current Discharge (Amperes) at 25ºC
Constant Power Discharge (Watts/Cell) at 25ºC (Blue)
HT
H
W
L
M5
3
012
PHR-12100
5 min
10 min
15 min
20 min
30 min
45 min
1h
2h
3h
4h
5h
6h
8h
10h
20h
1.85V
62.5
47.7
39.0
33.0
25.7
19.5
15.8
9.40
6.86
5.44
4.51
3.88
3.05
2.54
1.32
1.80V
71.2
52.8
42.2
34.9
27.2
20.6
16.8
9.88
7.12
5.61
4.67
4.01
3.15
2.61
1.35
1.75V
81.1
56.4
44.8
37.3
28.3
21.3
17.3
10.20
7.32
5.74
4.75
4.08
3.22
2.66
1.38
1.70V
89.1
60.3
46.8
38.6
29.2
21.9
17.7
10.40
7.47
5.88
4.87
4.19
3.29
2.71
1.40
1.67V
94.8
63.0
48.9
40.1
30.1
22.5
18.2
10.60
7.62
5.98
4.98
4.28
3.34
2.75
1.43
1.60V
98.5
65.1
50.5
41.5
31.1
23.0
18.6
10.80
7.76
6.12
5.10
4.37
3.41
2.81
1.47
1.85V
121.5
93.3
76.8
65.3
51.0
38.9
31.7
18.9
13.9
11.0
9.18
7.91
6.26
5.22
2.74
1.80V
137.1
102.2
82.2
68.4
53.6
40.8
33.4
19.8
14.3
11.3
9.45
8.13
6.42
5.33
2.77
1.75V
154.5
108.1
86.6
72.3
55.3
41.7
34.1
20.2
14.6
11.5
9.55
8.23
6.52
5.42
2.82
1.70V
167.8
114.3
89.2
74.2
56.6
42.6
34.8
20.5
14.8
11.7
9.72
8.39
6.61
5.47
2.85
1.67V
177.1
118.7
92.8
76.3
57.9
43.4
35.5
20.8
15.0
11.8
9.89
8.53
6.70
5.54
2.89
1.60V
181.9
121.3
94.8
78.2
59.3
44.0
35.9
21.0
15.2
12.0
10.0
8.62
6.77
5.61
2.94
