Power-Sonic PHR-12150 User Manual

12 volt 36 ah, 150 w/cell, Hr. rate

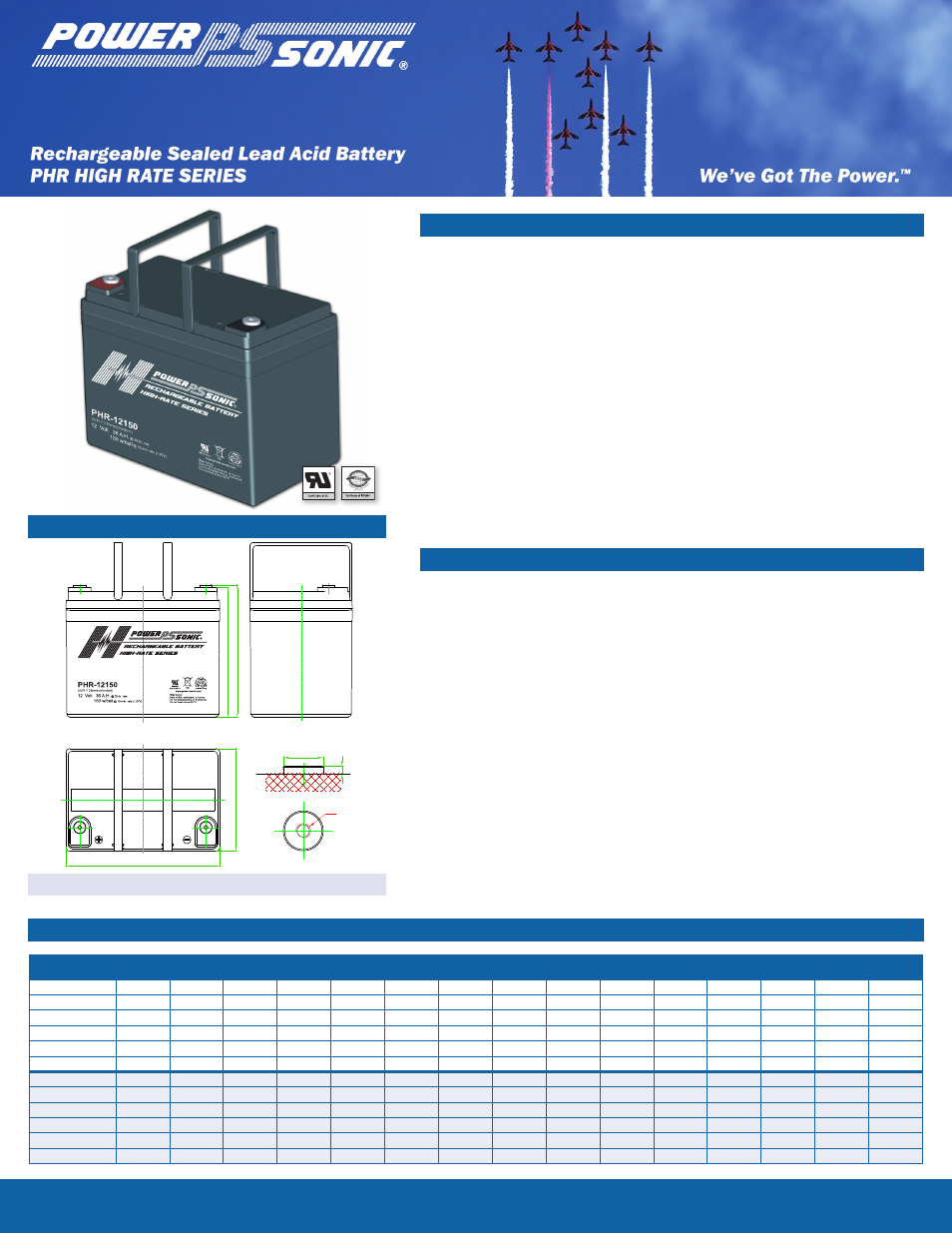

background image

M6

016

3

HT

H

W

L

Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for height dimensions.

Physical Dimensions: in (mm)

Features

• Superb high-rate discharge characteristics that ensure reliable

performance in UPS applications for up to 10 years. UL recognized

• Flame retardant ABS case and cover to UL 94 V-O for superior

performance

• VRLA Absorbent Glass Mat (AGM) Technology guarantees safe

operation without maintenance and “non-restricted article” status for

transportation. Approved for transport by air. D.O.T., I.A.T.A. and

F.A.A. certified.

• Precision plate pasting for higher consistency with 100% load

testing to ensure uniform capacity

• Patented dual-paste process for enhanced active material bonding,

and computer guided volumetric electrolyte control for precision

filling

• Lead-calcium alloy grids and the use of high purity lead account for

superior shelf-life characteristics

Performance Specifications

Nominal Voltage ............................................... 12 volts (6 cells)
Nominal Power (15 min.) .....................................150 W/Cell
Rated Capacity
20-hr. (1.8A to 10.50 volts) ........................................ 36.0 AH
10-hr. (3.5A to 10.50 volts) ........................................ 35.0 AH
8-hr. (4.1A to 10.50 volts) ........................................ 33.0 AH
Approximate Weight .................................. 22.5 lbs. (10.2 kg)
Internal Resistance (approx.) ................................ 7 milliohms
Max Discharge Current (5 Sec.) ......................... 630 amperes
Charging Voltage @ 77°F (20° C)
Standby Use ............. 2.275 ± 0.025 V/Cell, (-3.3mV/°C/Cell)
Cycle Use .......................... 2.45±0.05 V/Cell, (-5 mV /°C/Cell)
Maximum Charging Current ........................................ 10.5 A
Case....... ........................... Flame Retardant ABS Plastic (UL 94 V-O)

PHR-12150

www.power-sonic.com

L: 7.68 (195) W: 5.12 (130) H: 6.46 (164) HT: 6.57 (167)

12 Volt 36 AH

@ 20-hr. rate

150 W/Cell

@ 15-min. rate

Constant Current Discharge (Amperes) at 25ºC

Constant Power Discharge (Watts/Cell) at 25ºC (Blue)

To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.

All data subject to change without notice.

PHR-12150

5 min

10 min

15 min

20 min

30 min

45 min

1h

2h

3h

4h

5h

6h

8h

10h

20h

1.85V

102.3

73.7

59.1

49.4

37.9

28.3

22.6

12.7

9.04

7.06

5.85

5.01

3.93

3.26

1.72

1.80V

118.2

82.7

65.2

53.7

40.7

29.9

23.8

13.2

9.31

7.28

6.02

5.15

4.03

3.35

1.75

1.75V

132.8

89.9

70.3

57.2

42.7

31.2

24.7

13.5

9.54

7.46

6.15

5.25

4.11

3.41

1.79

1.70V

144.0

96.6

74.9

60.5

44.6

32.3

25.5

13.9

9.70

7.60

6.27

5.37

4.20

3.48

1.82

1.67V

156.0

103.3

79.1

63.6

46.4

33.3

26.2

14.2

10.0

7.78

6.41

5.48

4.31

3.54

1.85

1.60V

166.8

109.2

82.7

66.6

48.4

34.4

26.8

14.6

10.2

7.98

6.58

5.63

4.40

3.62

1.90

1.85V

199.0

144.2

116.2

97.6

75.4

56.4

45.2

25.6

18.3

14.3

11.9

10.2

8.05

6.71

3.55

1.80V

227.6

160.2

127.1

105.1

80.1

59.3

47.4

26.3

18.7

14.7

12.2

10.4

8.22

6.85

3.59

1.75V

253.0

172.4

135.7

111.1

83.4

61.2

48.9

26.9

19.0

14.9

12.4

10.6

8.33

6.94

3.66

1.70V

271.2

183.3

142.9

116.2

86.3

62.9

49.9

27.4

19.3

15.1

12.5

10.8

8.45

7.03

3.70

1.67V

291.5

194.5

150.0

121.4

89.3

64.5

51.2

28.0

19.7

15.4

12.7

10.9

8.62

7.12

3.75

1.60V

308.1

203.4

155.2

125.9

92.2

65.9

51.7

28.3

20.0

15.7

13.0

11.1

8.73

7.21

3.81
