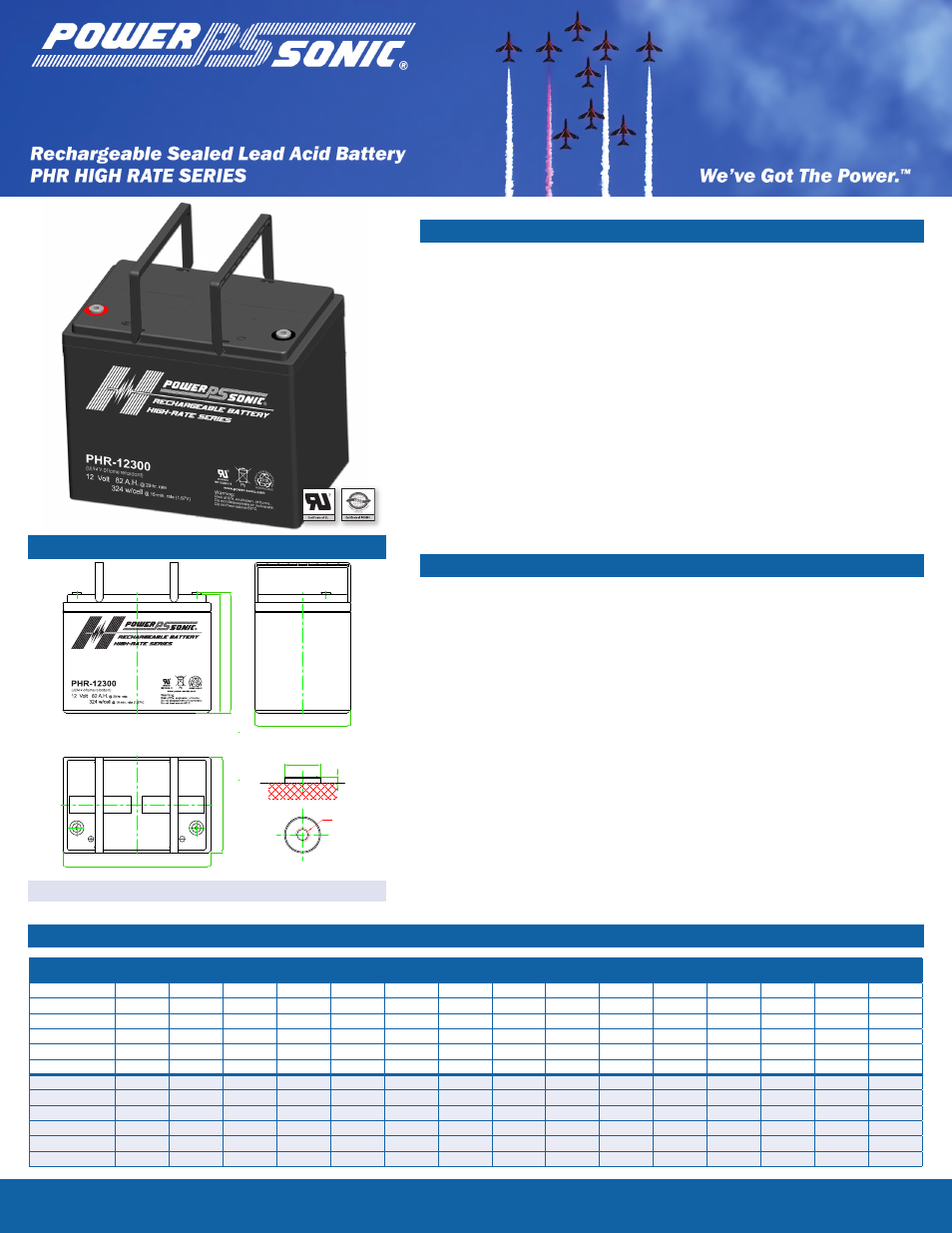

Power-Sonic PHR-12300 User Manual

12 volt 82 ah, 324 w/cell, Hr. rate

background image

Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for height dimensions.

Physical Dimensions: in (mm)

Features

• Superb high-rate discharge characteristics that ensure reliable

performance in UPS applications for up to 10 years. UL recognized

• Flame retardant ABS case and cover to UL 94 V-O for superior

performance

• VRLA Absorbent Glass Mat (AGM) Technology guarantees safe

operation without maintenance and “non-restricted article” status for

transportation. Approved for transport by air. D.O.T., I.A.T.A. and

F.A.A. certified.

• Precision plate pasting for higher consistency with 100% load

testing to ensure uniform capacity

• Patented dual-paste process for enhanced active material bonding,

and computer guided volumetric electrolyte control for precision

filling

• Lead-calcium alloy grids and the use of high purity lead account for

superior shelf-life characteristics

Performance Specifications

Nominal Voltage ............................................... 12 volts (6 cells)
Nominal Power (15 min.) .....................................324 W/Cell
Rated Capacity
20-hr. (4.10A to 10.80 volts) ...................................... 82.0 AH
10-hr. (8.00A to 10.50 volts) ...................................... 80.0 AH
8-hr. (9.66A to 10.50 volts) ...................................... 77.3 AH
Approximate Weight .................................. 52.5 lbs. (23.8 kg)
Internal Resistance (approx.) ............................. 4.5 milliohms
Max Discharge Current (5 Sec.) ....................... 1230 amperes
Charging Voltage @ 77°F (20° C)
Standby Use ............. 2.275 ± 0.025 V/Cell, (-3.3mV/°C/Cell)
Cycle Use .......................... 2.45±0.05 V/Cell, (-5 mV /°C/Cell)
Maximum Charging Current ........................................ 24.6 A
Case....... ........................... Flame Retardant ABS Plastic (UL 94 V-O)

PHR-12300

L: 10.20 (259) W: 6.61 (168) H: 8.19 (208) HT: 8.31 (211)

12 Volt 82 AH

@ 20-hr. rate

324 W/Cell

@ 15-min. rate

Constant Current Discharge (Amperes) at 25ºC

Constant Power Discharge (Watts/Cell) at 25ºC (Blue)
