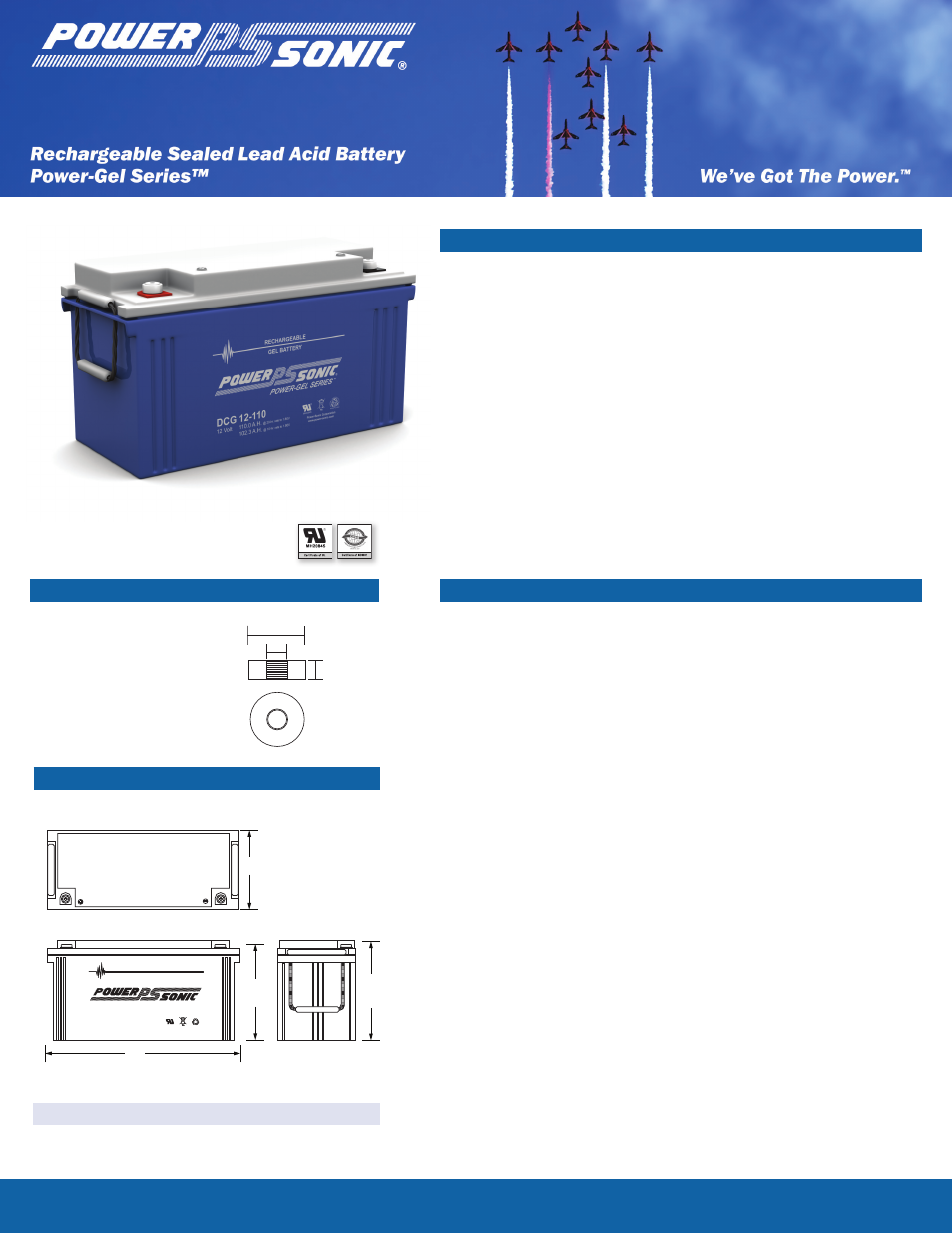

Power-Sonic DCG12-110 - Manual

RECHARGEABLE
DCG 12-110
12 Volt 110.0 A.H. @ 20-hr. rate to 1.80V 102.3 A.H. @ 10-hr. rate to 1.80V
POWER-GEL SERIES
GEL BATTERY
® ™
Power-Sonic Corporation
B AT TE RY MU STB ER EC YC LE D Pb
NONSPILLABLE
www.power-sonic.com
MH20845
®
L
HT
W
H
16mm
6mm
M6
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm)
for height dimensions. All data subject to change without notice.
Physical Dimensions: in(mm)
Features
Thixotropic gel electrolyte for enhanced performance
Valve regulated, spill proof construction allows safe
operation in any position
Superior capabilities
Power/volume ratio yielding unrivaled energy density
Rugged ABS plastic (UL94-HB) case and cover
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certified
U.L. recognized - MH 20845
CE compliant
•
•
•
•
•
•
•
•
www.power-sonic.com
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
Terminals (mm)
T6: Threaded insert
w. 6 mm stud fastener
•
Performance Specifications
N ominal Voltage ............................................................................ 12 volts (6 cells)
Nominal Capacity
20-hr. (5.5A to 10.8 volts) ............................................................ 110.0 AH
10-hr. (10.23A to 10.5 volts) ........................................................ 102.3 AH
5-hr.
(17.6A to 10.5 volts) ............................................................. 88.0 AH
3-hr. (27.0A to 10.5 volts) .............................................................. 81.0 AH
1-hr. (60.5A to 10.0 volts) ............................................................ 60.5 AH
Approximate Weight ................................................................ 79.4 lbs. (36.0 kg)
Energy Density (20-hr. rate) .................................... 1.32 W-h/in3 (80.82 W-h/l)
Specific Energy (20-hr. rate) ................................ 16.62 W-h/lb (36.65 W-h/kg)
Internal Resistance (approx.) ......................................................... 5.1 milliohms
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case .....................................................................................ABS Plastic (UL94 HB)
Recommended Power-Sonic Chargers .............................................................n/a
L: 16.14 (410) W: 6.97 (177) H: 8.86 (225) HT: 8.86 (225)
DCG12-110
12Volt110.0AH
@20-hr.rate
102.3AH
@10-hr.rate
