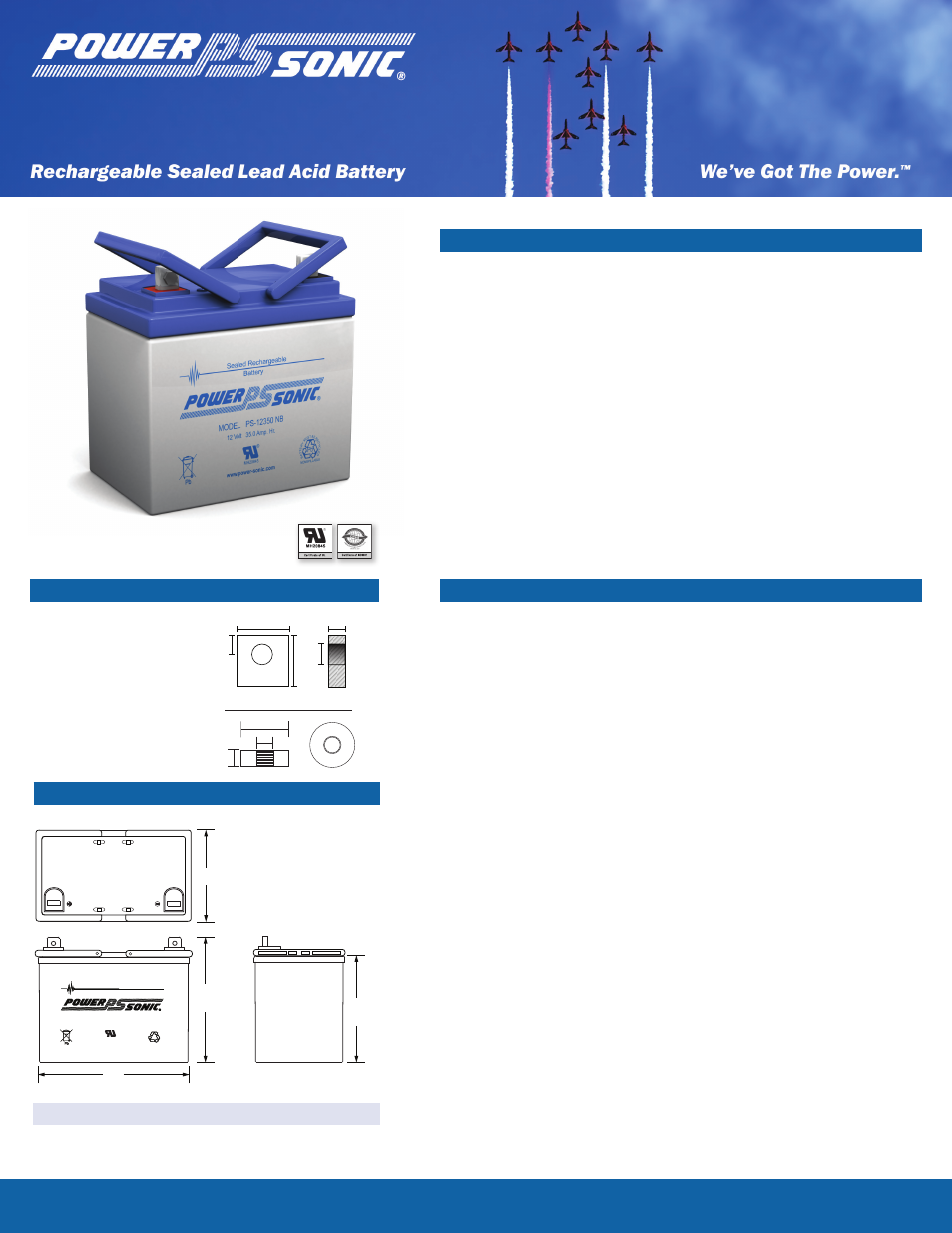

Power-Sonic PS-12350 - Manual

Sealed Rechargeable
MODEL PS-12350 NB
12 Volt 35.0 Amp. Hr.
Battery
www.power-sonic.com B AT TE RY MU ST BE R EC YC LE D Pb
NONSPILLABLE
MH20845
®
L
HT
H
W
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
Physical Dimensions: in (mm)
Features
Absorbent Glass Mat (AGM) technology for superior
performance
Valve regulated, spill proof construction allows safe
operation in any position
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Integrated ABS carrying handles for ease of movement
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certified
U.L. recognized under file number MH 20845
•
•
•
•
•
•
•
Performance Specifications
N ominal Voltage ........................................................................ 12 volts (6 cells)
Nominal Capacity
20-hr. (1.75A to 10.50 volts) .......................................................... 35.0 AH
10-hr. (3.3A to 10.50 volts) ............................................................ 33.0 AH
5-hr.
(6.2A to 10.20 volts) ............................................................. 31.0 AH
1-hr. (25A to 9.00 volts) ............................................................... 25.0 AH
15-min. (70A to 9.00 volts) .................................................................. 17.5 AH
Approximate Weight ...................................................... 24.70 lbs. (11.20 kg)
Energy Density (20-hr. rate) .............................. 1.70 W-h/in3 (103.84 W-h/l)
Specific Energy (20-hr. rate) ............................... 17.00 W-h/lb (37.49 W-h/kg)
Internal Resistance (approx.) ........................................................ 8 milliohms
Max Discharge Current (7 Min.) ............................................. 105.0 amperes
Max Short-Duration Discharge Current (10 Sec.) ................ 350.0 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ............................................PSC-124000A, 124000A-C
PS-12350
www.power-sonic.com
To ensure safe and efficient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
Terminals (mm)
12 Volt 35.0 AH
L: 7.72 (196) W: 5.14 (131) H: 6.22 (158) HT: 7.00 (176)
T6
NB3
16
6
M6
16.5
7
16 6
6
Torque: 3.9~5.4 Nxm
NB3: Heavy duty
terminal posts
with nut and bolt
fasteners
T6: Threaded insert
w. 6 mm stud
fastener
•
•
