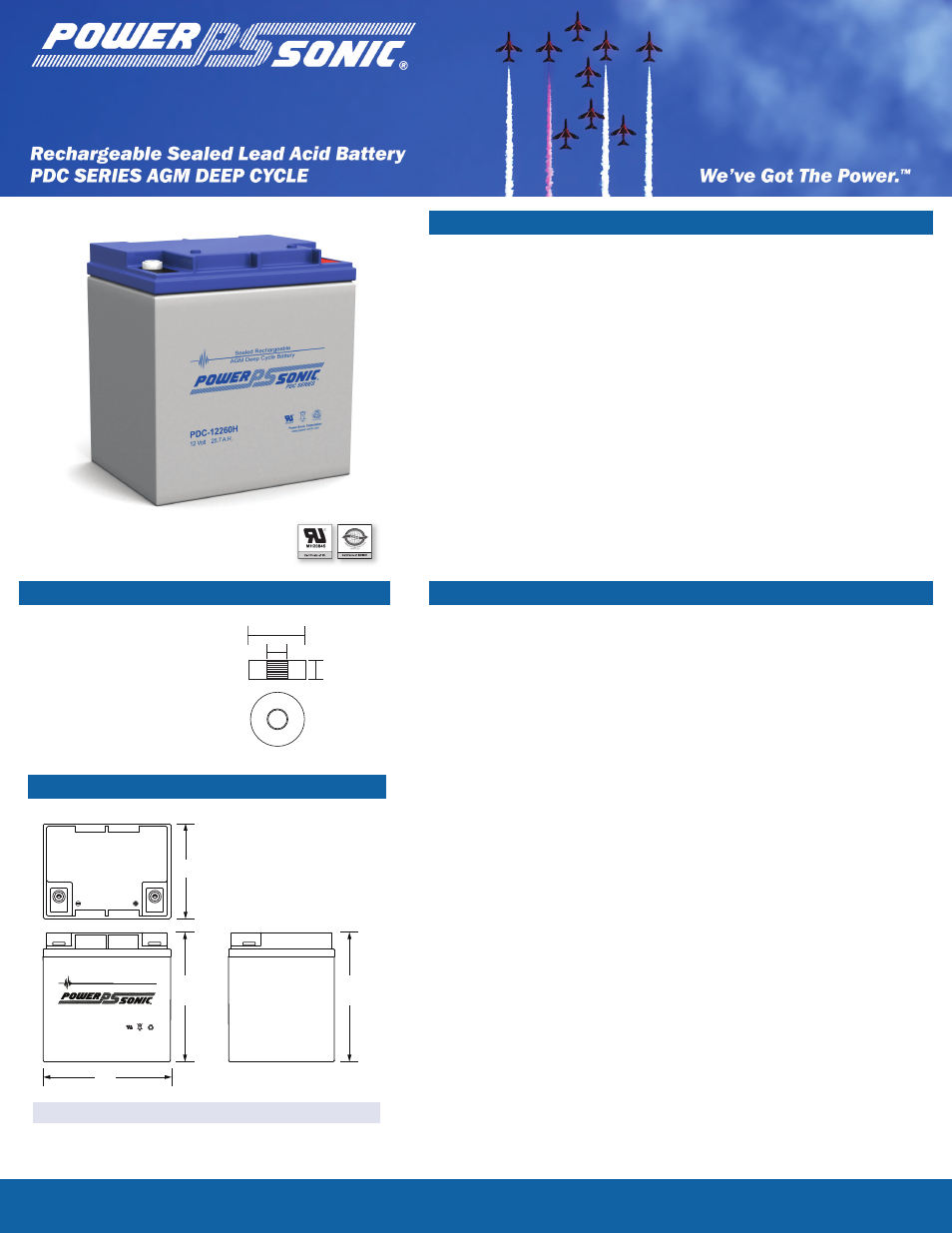

Power-Sonic PDC-12260H User Manual
0 ah
Sealed Rechargeable
AGM Deep Cycle Battery
PDC SERIES
PDC-12260H
12 Volt 25.7 A.H.
Power-Sonic Corporation
BA
TT
E
RY
MU
ST BER
EC
YC
LE
D
Pb
NONSPILLABLE
www.power-sonic.com
MH20845
®
L
HT
H
W
Tolerances are +/- 0.04 in. (+/- 1mm) and +/- 0.08 in. (+/- 2mm) for
height dimensions. All data subject to change without notice.
Physical Dimensions: in (mm)
Features
Absorbent Glass Mat (AGM) technology for superior
performance
Valve regulated, spill proof construction allows safe
operation in any position
Oversize negative plates and a specialized paste
formulation provide true deep cycle performance.
Special additives in the paste ensure superior
performance in deep discharge situations.
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and
C.A.B. certifi ed
U.L. recognized under fi le number MH 20845
•
•
•
•
•
•
•
•
Performance Specifi cations
N
ominal Voltage ........................................................................ 12 volts (6 cells)
Nominal Capacity
20-hr. (1.29A to 10.50 volts) .......................................................... 25.7 AH
10-hr. (2.40A to 10.50 volts) ........................................................... 24.0 AH
8-hr.
(2.93A to 10.50 volts) .......................................................... 23.4 AH
5-hr.
(4.21A to 10.20 volts) ........................................................... 21.0 AH
1-hr.
(15.5A to 9.00 volts) ............................................................ 15.5 AH
15-min. (47.4A to 9.00 volts) ............................................................... 11.8 AH
Approximate Weight ............................................................. 20.9 lbs. (9.5 kg)
Energy Density (20-hr. rate) ................................. 1.40 W-h/in3 (85.41 W-h/l)
Specifi c Energy (20-hr. rate) .............................. 14.76 W-h/lb (32.53 W-h/kg)
Internal Resistance (approx.) ...................................................... 12 milliohms
Max Discharge Current (7 Min.) ................................................ 77.1 amperes
Max Short-Duration Discharge Current (10 Sec.) ................. 257.0 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers ............................................................. PSC-124000A-C
PDC-12260H
www.power-sonic.com
To ensure safe and effi cient operation always refer to the latest edition of our Technical Manual, as published on our website.
All data subject to change without notice.
Terminals (mm)
L:
6.50 (165) W: 4.92 (125) H: 6.89 (175) HT: 6.89 (175)
12 Volt 25.7 AH
@ 20-hr. rate
24.0 AH
@ 10-hr. rate
12mm
6mm
M5
T12: Threaded insert
w. 8 mm stud fastener
•
