7. Plug the FPS connector into the fuel pressure sensor under
the fuel rail (Figure 5).
8. Connect the CAN cable from one rail to the other (Figure
6).
9. Connect the heavy red Rail Power wires together between
the two rails (Figure 7).
FUEL RAIL INSTALLATION
1. Preassemble the rail brackets with a washer and the M6 x
100MM bolts on the angled end. Use a single 6mm x 16mm
hex head bolt on the closed end of the flange. Coat the ends
of the 100mm bolts with thread sealant (Figure 8).
2. Place the spacer/bushing/rail bracket assemblies onto the
intake manifold. The angled end of the bracket is always
facing to the left when installed correctly on either side of
the engine. The rear passenger bracket will require a spacer
between the intake manifold and the bracket (Figure 9)

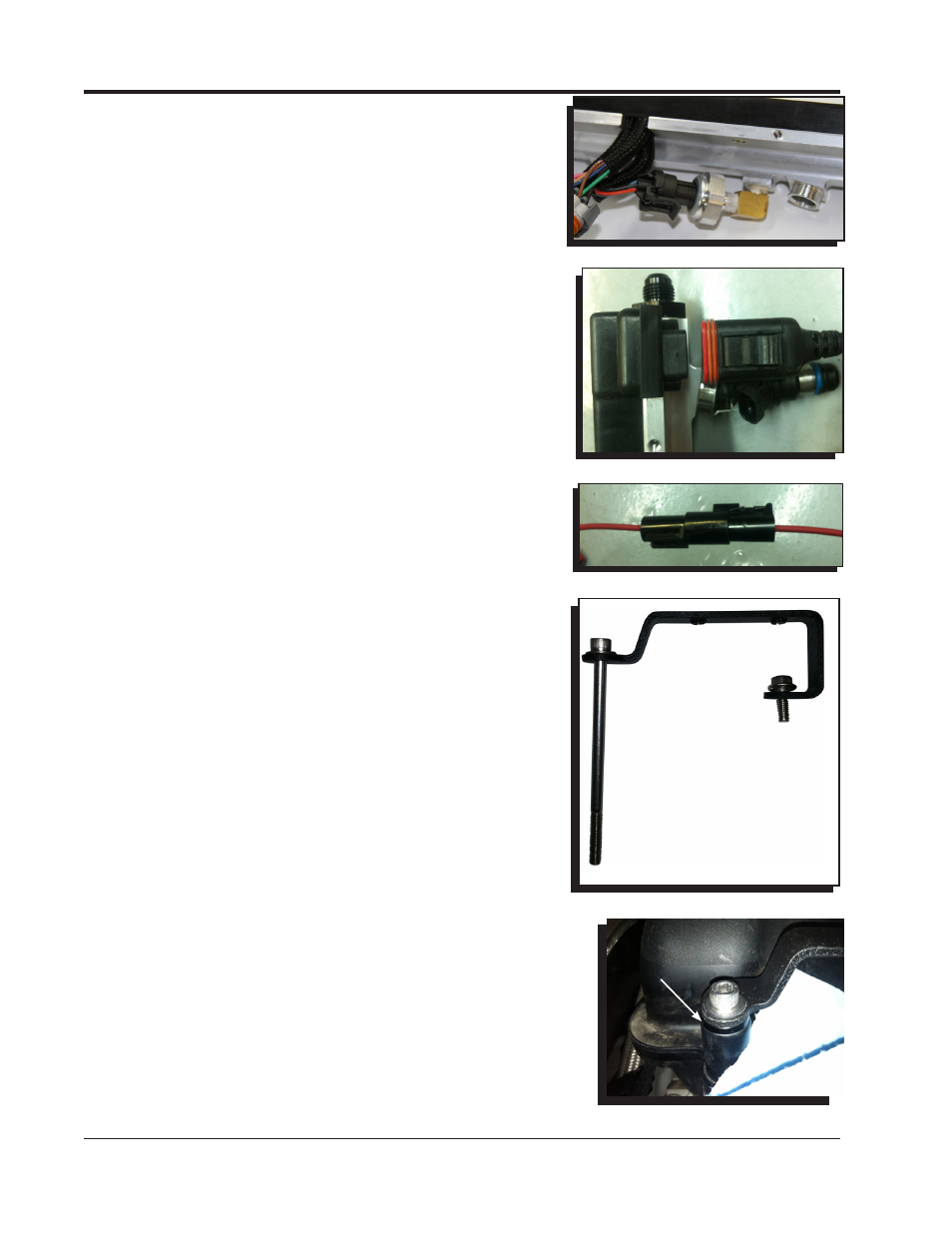

Figure 5
Figure 6
Figure 8
Figure 7
Figure 9
SPACER
