WARNING: DO NOT ATTEMPT TO START THE ENGINE. Before turning the ignition key to the ON
position, confirm all fuel line connections are tight and all electrical connections are correct. After
confirming all electrical connections and fuel lines, turn the ignition key to the ON position. Check
every hose and fitting connection for any signs of fuel leaks. The Handheld screen should illuminate
and display the Main Menu.
PROGRAMMING
The Handheld Monitor plugs into the Power Module via the CAN connection. It can be removed once
the initial setup is complete, or can remain connected for use of features such as the dash or digital
gauge displays. The Handheld Monitor features a joystick to scroll through the settings. Scroll up
and down to the setting and push the joy stick to the right to select the options. When the selection
is made, either push in, or go back (push to the left) to save/confirm settings changes.
Atomic LS Gauges
Atomic LS Dash
Main Menu

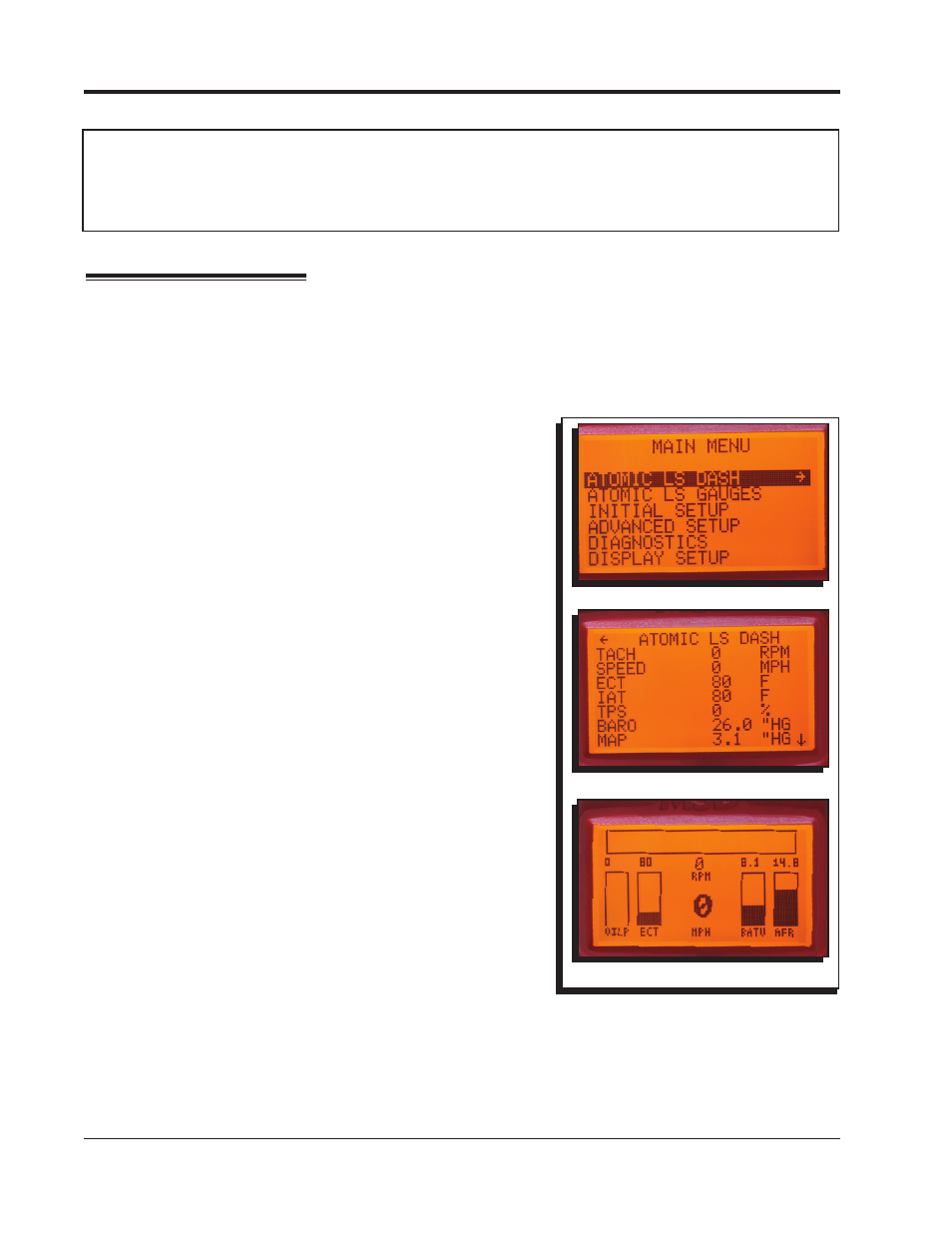

Figure 24 Monitor Main Menu
MAIN MENU
Six selections will come up the Monitor under the Main Menu.
If this is the first time powering up the Atomic LS, select Initial
Setup (Figure 24).
Atomic LS Dash: This selection allows you to view a variety of
engine functions in real time when the engine is running.
Atomic LS Gauges: This setting puts five important values
in gauge form to ease viewing the data. This includes
engine rpm, oil pressure, engine coolant temperature,
speed (when connected), battery voltage, and air/fuel
ratio.
Initial Setup: These are values that are required to start the
engine.
Advanced Setup: Optional settings for features and optimized
drivability settings.
Diagnostics: This screen will help you troubleshoot and
identify potential issues.
Display Setup: Provides adjustments for the appearance of
the monitor screen.
