High Lifter Lift Kit for Can-Am 1000 Outlander and Renegade 1000 - Signature Series User Manual
Page 9
9

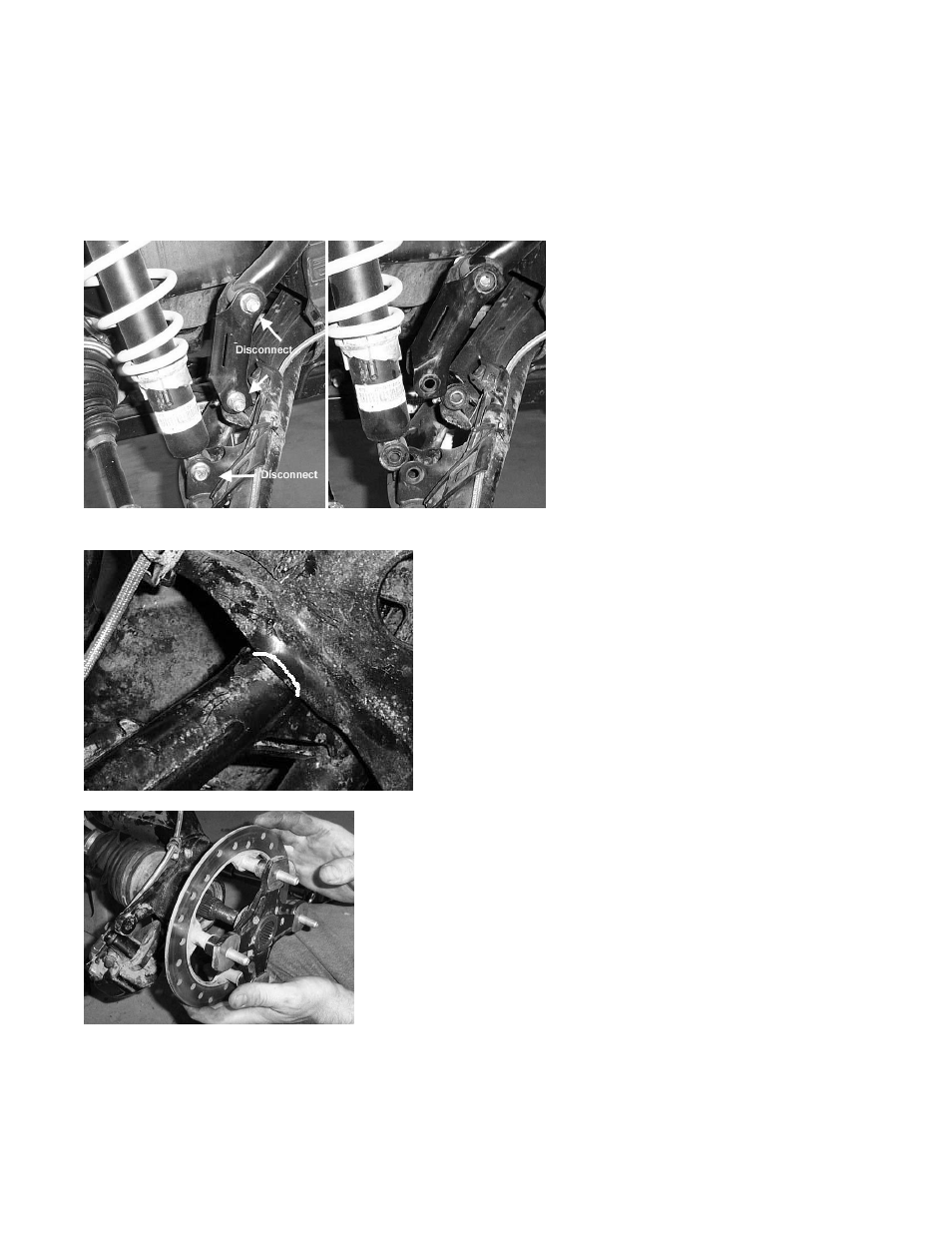

Rear Lift
1) Place jack under the center of the ATV and lift until the weight is off the suspension. Be careful to secure
the ATV properly so it is stable on the jack.
2) Remove the rear wheels.
3) Disconnect the bottom of the shock and the brackets that connect the sway bar bracket to the sway bar and
arms. Disconnect both sides!
4) When the rear arms are at full extension they will be resting on a plate that is connected to the frame. You
will need to mark this area where it is touching and trim later. You will need to trim both sides.
5) Remove the castle nut and hub from the ATV.
