High Lifter Lift Kit for Can-Am 1000 Outlander and Renegade 1000 - Signature Series User Manual
Page 10
10

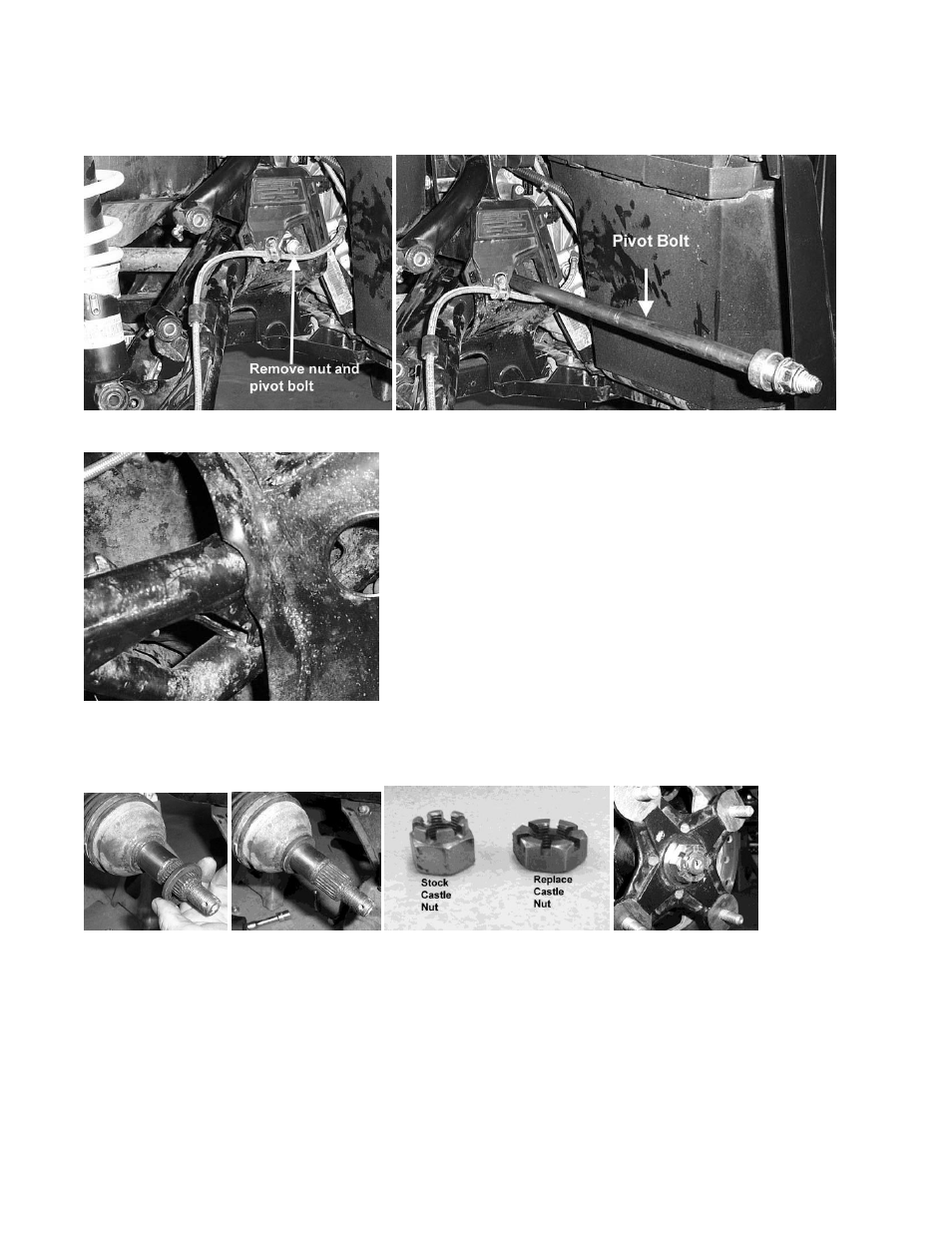

6) Disconnect the pivot rod. You only need to remove the nut from one side on the pivot rod. You can pull it
out from the opposite side that has the nut still attached.
7) Once you remove the pivot rod the rear arms will be free from the ATV. Remove them then trim the
marked area on the plate.
8) ONLY ON THE REAR RIGHT WITH STOCK AXLE: Insert the new axle spacer on the axle and place
the hub back on the ATV. Then fasten with the new castle nut provided in the kit. Do both sides at this
point.
NOTE: If you are using a High Lifter DHT Axle DO NOT USE THE SPACER
9) Reattach the arms and pivot rod to the ATV.
