High Lifter Lift Kit for Can-Am 1000 Outlander and Renegade 1000 - Signature Series - Manual (Page 5)

5

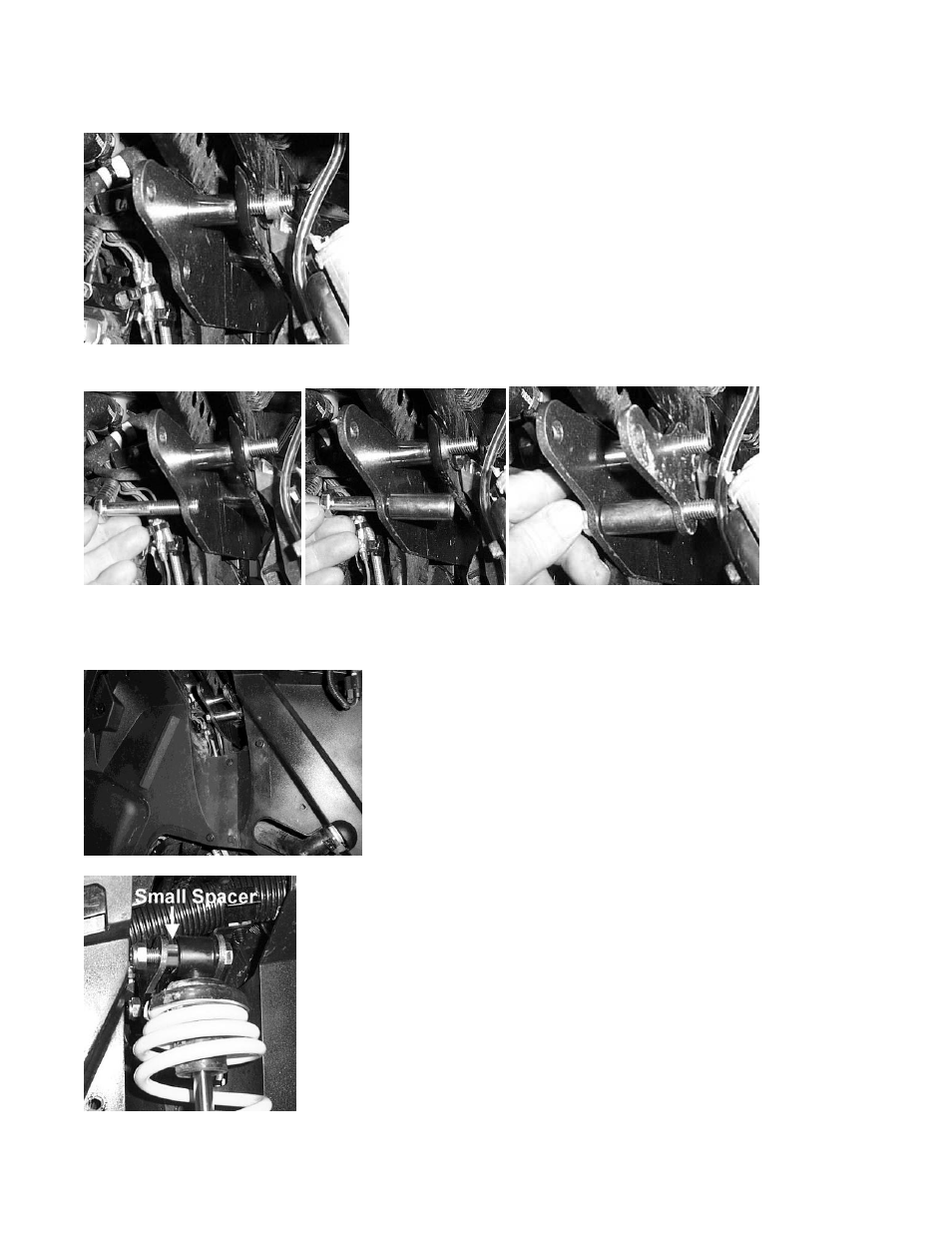

11) Place the front small spacer on the outside of the shock mount on the end of the bolt.
12) Insert a 10x65mm hex bolt into the lift bracket, then place the front large spacer on the bolt then place the
small front lift bracket on both bolts to the outside of the shock mount tabs.
13) Loosely connect the brackets with the 10mm lock nut.
14) Before you connect the top of the shock to the brackets place the inner fenders in place but do not connect
them.
15) Now, connect the top of the shock to the brackets using a 10x55 hex bolt, Small Spacer, and10mm lock nut.
