High Lifter Lift Kit for Kawasaki 750 Teryx 4-Seater - Signature Series User Manual
Page 6
6

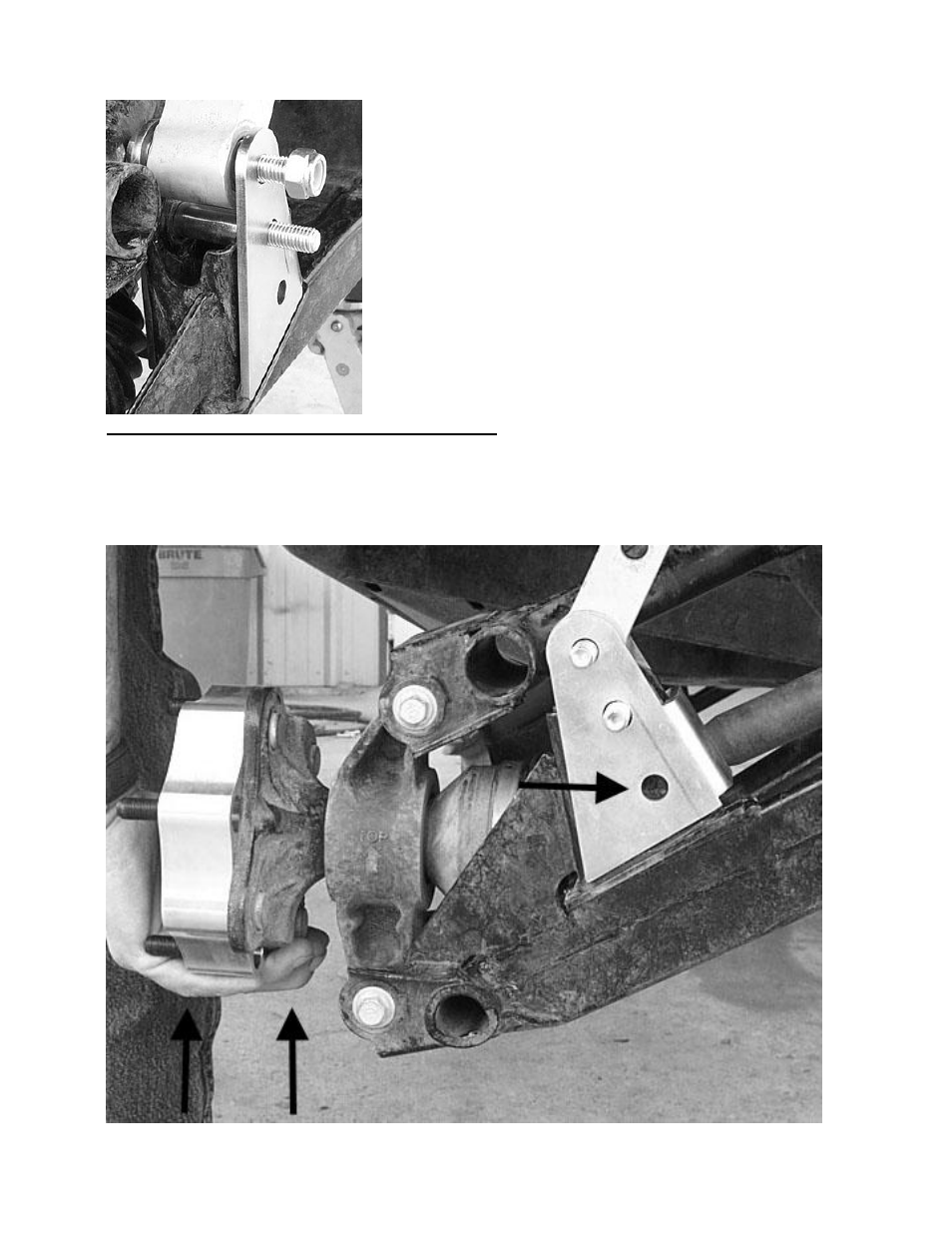

6) Next insert the 12x80mm bolt to hold the spacer and bracket in place and loosely attach the 12mm nut.
7) THIS NEXT STEP IS VERY IMPORTANT!!!!!!
8) Lift the hub assembly up making sure that there is no slack. You will mark the bolt holes that will
need to be drilled. If you do not mark these properly, the outer boot on the CV axle that is nearest the
hub will rub the control arm. When you complete the lift install you will need to check the clearances
of the boots on the inner and outer joints.
