High Lifter Lift Kit for Kawasaki 750 Teryx 4-Seater - Signature Series User Manual
Page 4
4

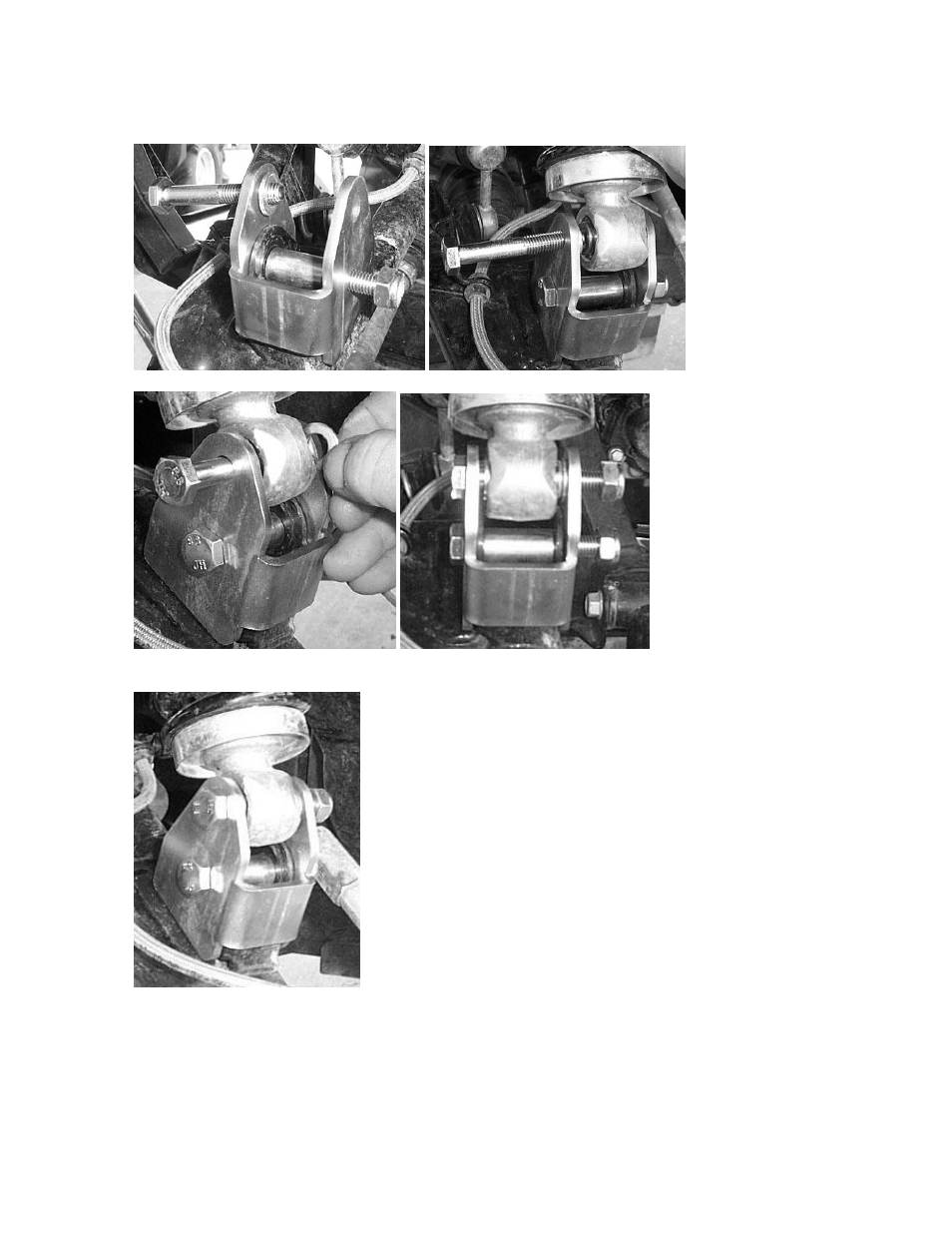

5) Slide bottom of the shock into top of the lift bracket. Using the 10x65mm bolt and 10mm flat washer,
insert the 10mm flat washers between the shock eyelet and the bracket. Fasten tight using a 10mm
lock nut.
6) Repeat the procedure for the other side.
7) Install the wheels, torque wheel lug nuts to manufacturer’s specifications, lower and remove jack.
Check for clearance problems or misalignment.
