High Lifter Lift Kit for Kawasaki 750 Teryx 4-Seater - Signature Series - Manual (Page 5)

5

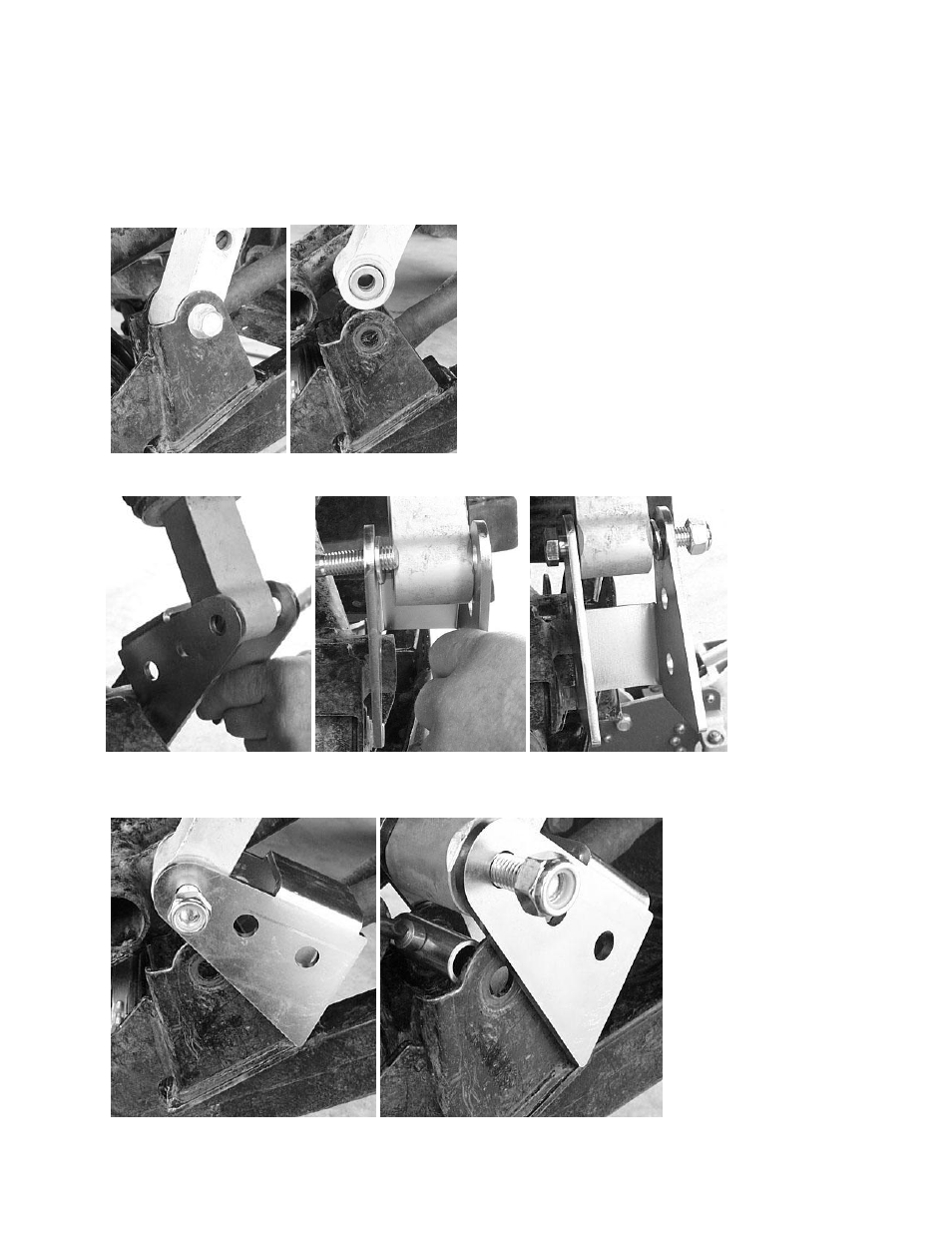

Rear Lift
1) Place jack under UTV at the rear of the bottom skid plate and lift until the weight is off of the
suspension. Be careful to secure the UTV properly so as not to fall off the jack.
2) Remove the rear wheels.
3) Disconnect the lower part of the shock from the control arm.
4) Attach the top of the rear lift bracket to the lower shock eyelet using the 12x80mm bolt and 12mm
lock nut. Make sure to place a 12mm flat washer on either side of the shock eyelet.
5) Connect the rear lift bracket to the shock mount. Insert the rear spacer between the shock mount tabs
where the shock was previously mounted to the shock mount tabs.
Installation Hint: Have the bracket go on at an angle!
