THE FOLLOWING STEPS ARE FOR CUSTOMERS THAT DO
NOT WANT THE LIFT KIT INSTALLED

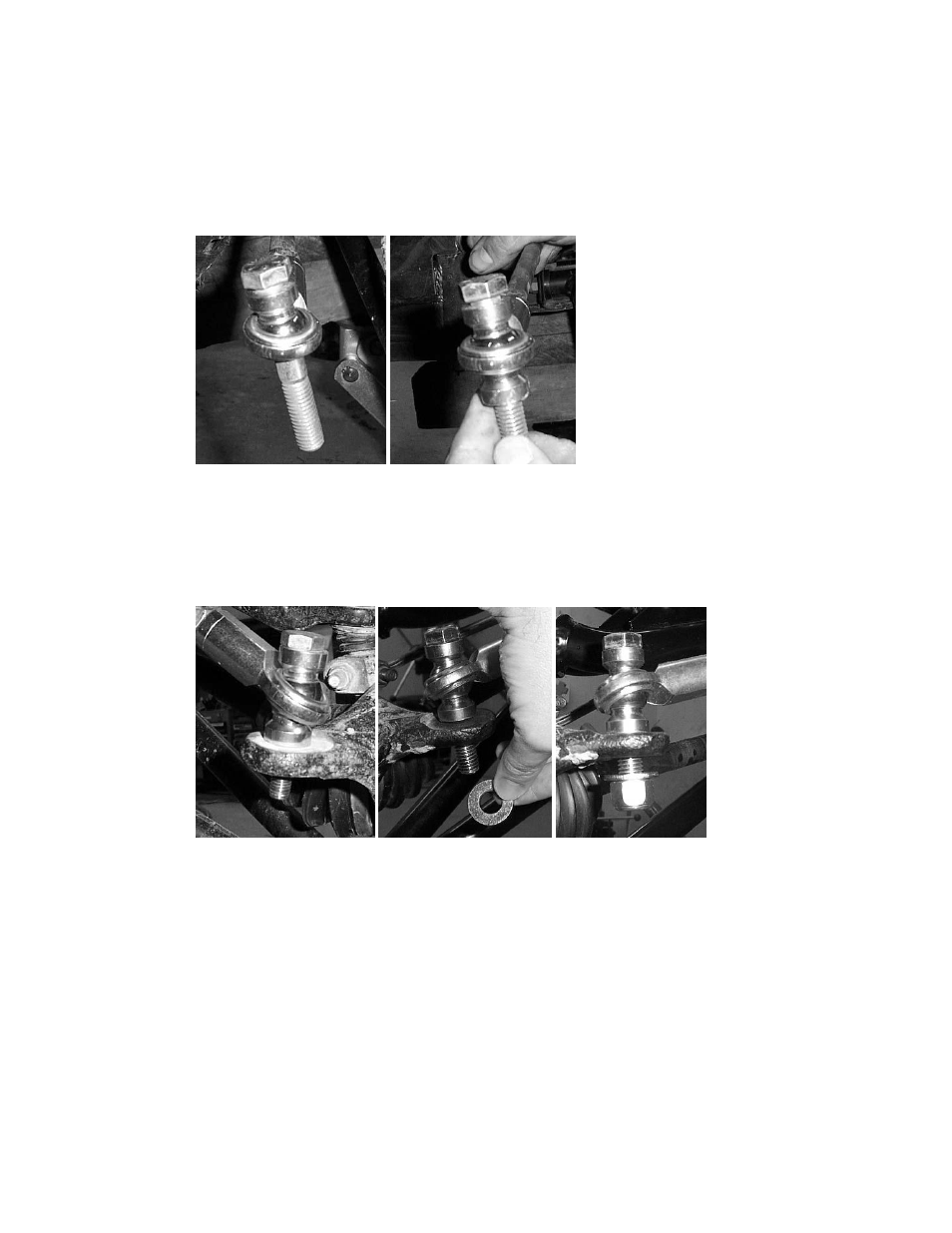

23. Take the ½ x 3 1/4” Hex Bolt and insert one of the high-alignment spacers onto

the bolt. Slide the bolt into the heim joint, then place another high-alignment
spacer onto the bolt.



24. Insert the bolt into the knuckle assembly. Place the ½” flat washer and ½” lock

nut onto the bolt and tighten.

25. Repeat steps for opposite side.
26. If you have not already done so, reconnect the bottom of the shock to the new A-

arm using the 10x55 hex bolt and 10mm lock nut provided.

27. Repeat steps for the opposite side.
28. Do not place wheels on Ranger until you have checked the alignment on the

front wheels!!!
