High Lifter Forward Arched Control Arm Kit for Polaris Ranger 700_800_900 - Pro Series User Manual
Page 8
8
THE FOLLOWING STEPS ARE FOR CUSTOMERS THAT
WANT TO INSTALL OUR LIFT KIT IN CONJUNCTION
WITH THE FORWARD ARM KIT

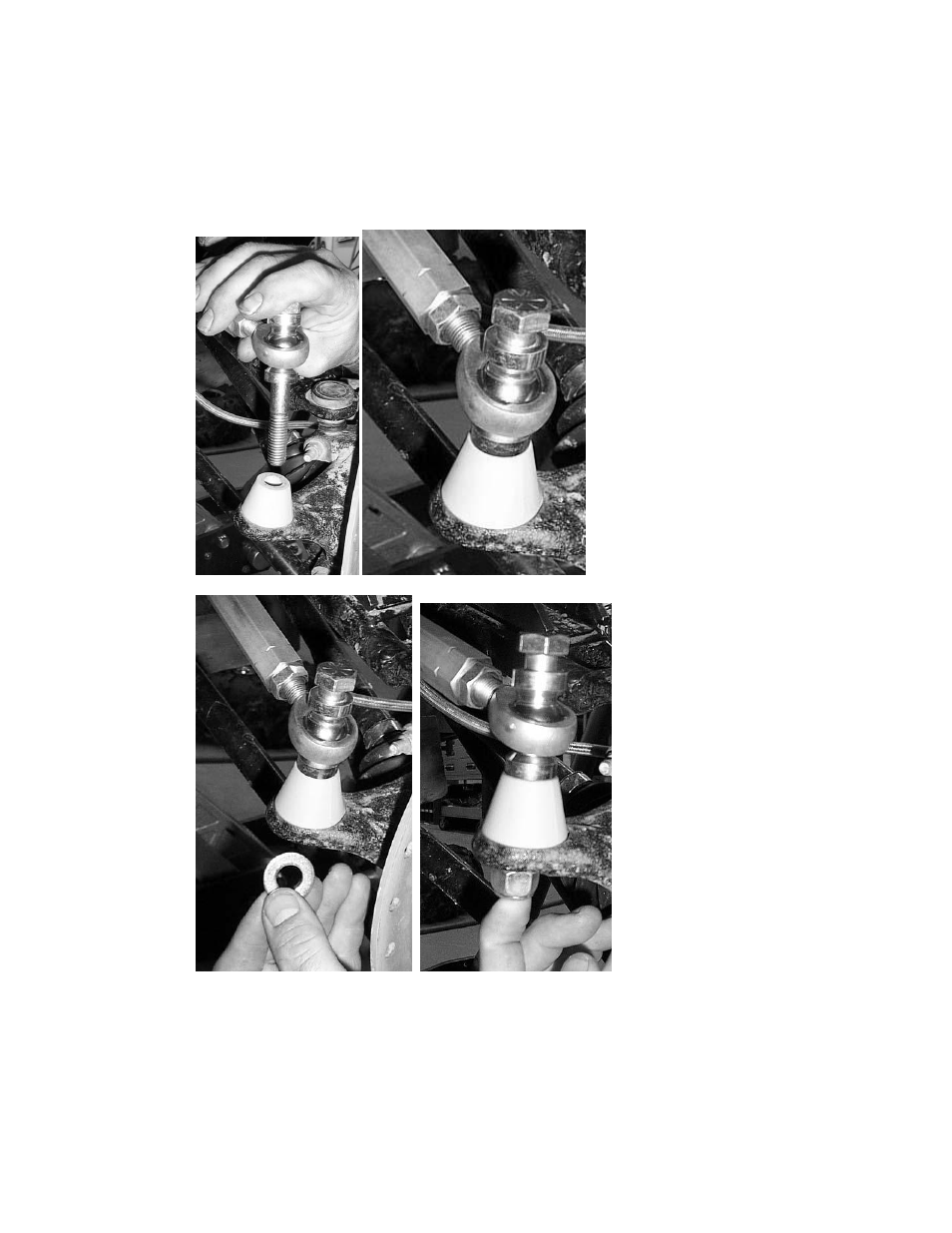

21. Insert the new ½ x 4” hex bolt. Slide the bolt through the alignment cones and
heim joint then through the High Alignment Cone.
22. Place the ½” washer and ½” lock nut on the bolt and torque tight.
