High Lifter Forward Arched Control Arm Kit for Polaris Ranger 700_800_900 - Pro Series User Manual
Page 3
3

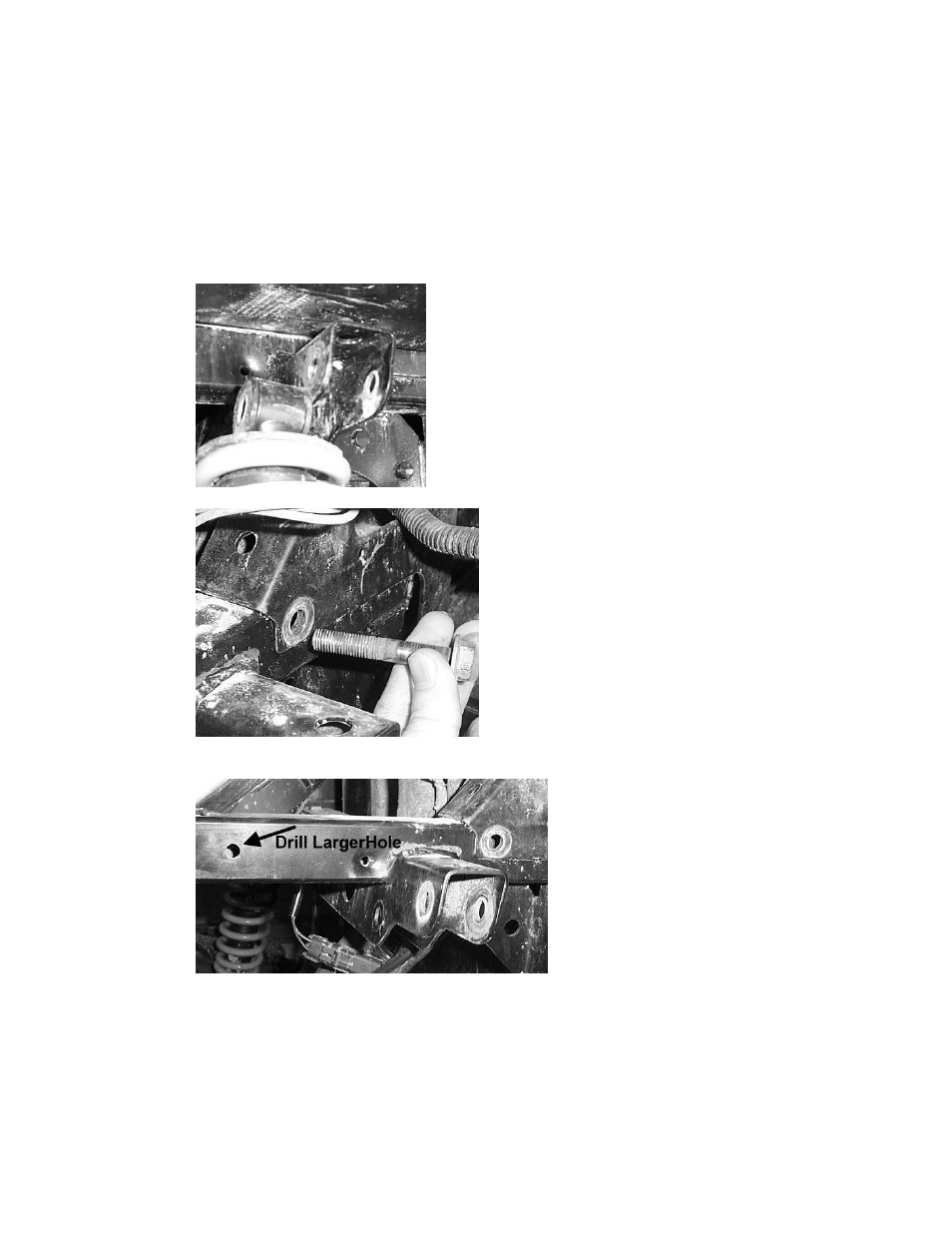

Installation Instructions:
1. Place jack under center of Ranger front end and lift until front wheels clear the
ground. Be careful to support the UTV properly so that it is securely supported
but so that A-arms and shocks can droop to full extension.
2. Remove front wheels.
3. You may need to remove the front plastic for the next steps. We removed it to
better illustrate how to install the upper shock relocation bracket.
4. Disconnect the shock from the UTV.
5. Remove the bolt that connects the frame together.
6. Using the stock hole in the frame a pilot hole drill a larger hole using a 13/32 drill
bit.
7. Attach the new shock relocation bracket to the top shock mount. You will be
moving the top of the shock forward.
8. Place a 10mm washer between the frame and the bracket in the location where
you drilled the hole. Then connect the bracket to the frame using the 10x65mm
hex bolt and 10mm lock nut.
