High Lifter Forward Arched Control Arm Kit for Polaris Ranger 700_800_900 - Pro Series User Manual
Page 4
4

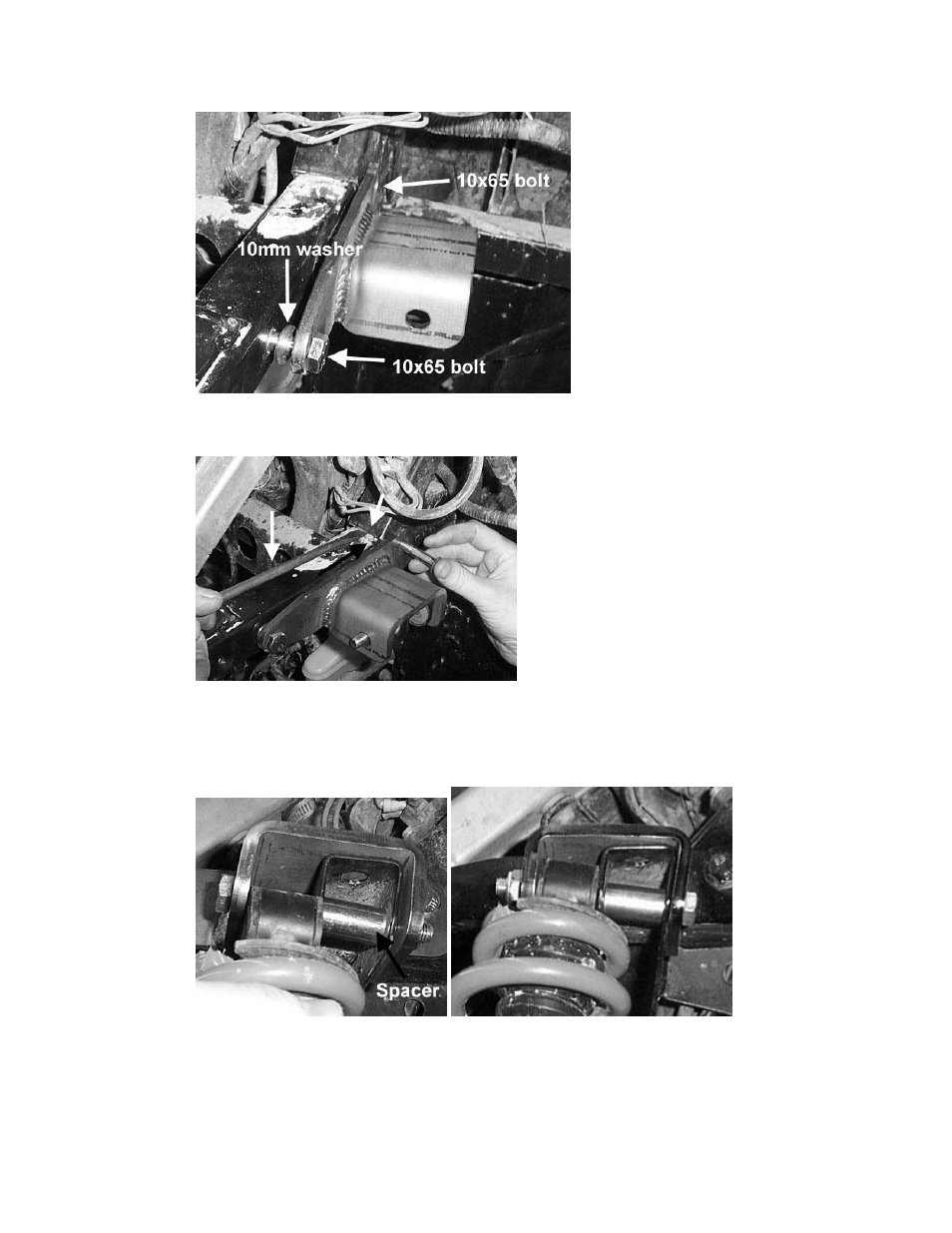

9. You may need to pry up on the frame with a screwdriver to align the bolt holes so
you can insert the 10x65mm bolt.
10. Insert the 10x95mm hex bolt through the shock mount bracket, shock eyelet, and
spacer. Fasten it using the 10mm lock nut.
11. Disconnect the brake caliper and tie rod form the hub assembly.
