High Lifter Forward Arched Control Arm Kit for Polaris Ranger 700_800_900 - Pro Series User Manual
Page 5
5

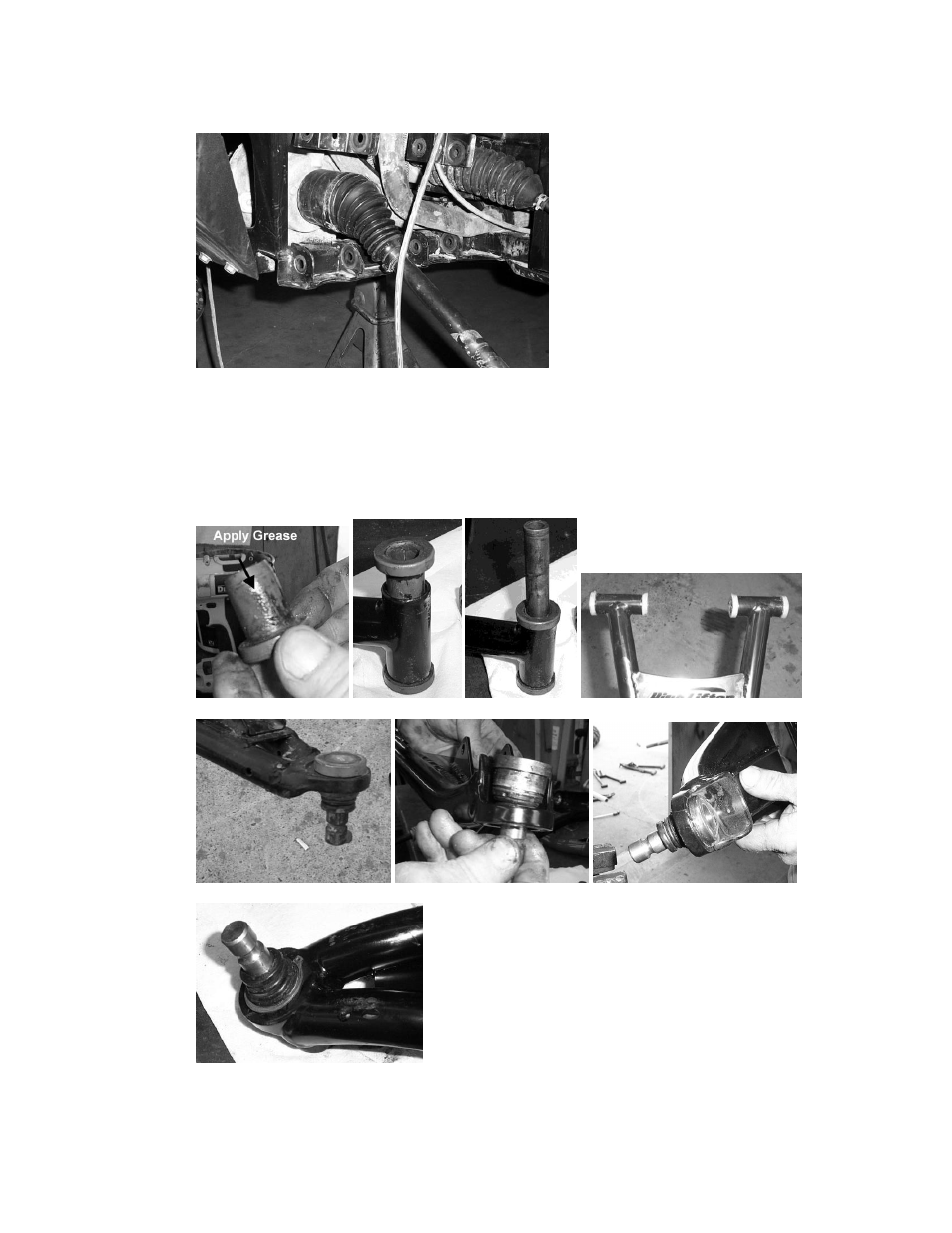

12. Remove both lower A-arms from the UTV.
13. Remove the bushings, sleeves, and ball joints from the stock control arms. You
will need to reuse these in the new forward a-arm kit.
14. Now reinstall the bushings, sleeves, and ball joints into the new arms. If you
place some grease on them it makes the installations easier.
NOTE: A press or a vise is suggested for removing and replacing the ball joints.
Verify that the clip snaps into place after installing the ball joints into the new A-
arm.
