Issue 4.2.B Xedio Suite Version 4.2 – User Manual - Xedio Browse
EVS Broadcast Equipment – June 2012
2
1.2.2 O
VERVIEW OF THE
X
EDIO
B
ROWSE
W
INDOW

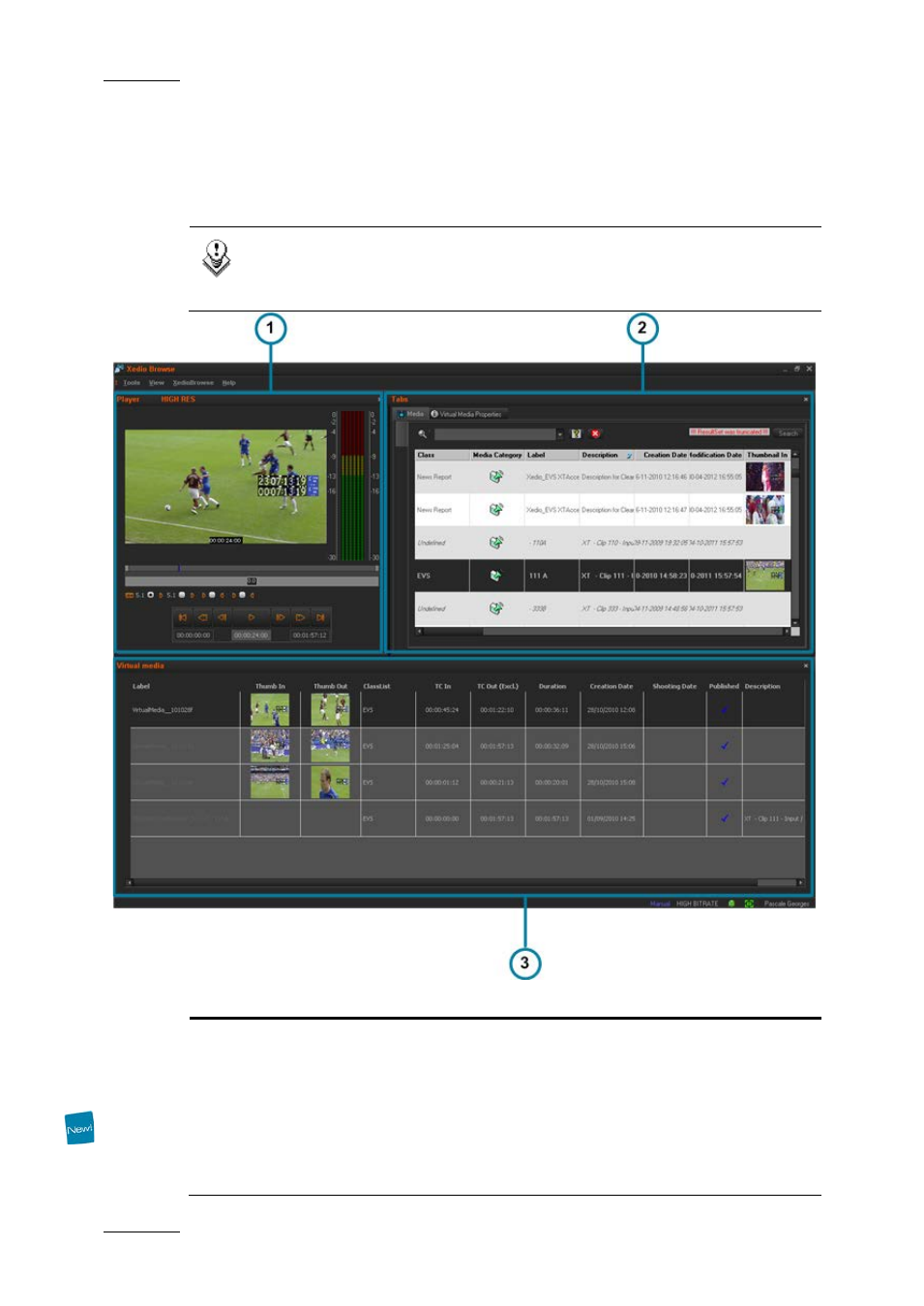

The Xedio Browse graphical interface consists of three main areas, besides the
Menu bar. They are highlighted on the following screenshot and shortly described
in the table below.
Note
The color of some user interface elements may vary with the Xedio skin
installed.
Area Description
1. Player Pane This is used to play media loaded from the Tabs pane or
virtual media loaded from the Virtual Media pane. The
Player pane is used together with the Tabs pane to create
virtual media.
Everything that is outside the video content has the skin
color. Video such as letterboxed or pillarboxed video will
show black bars as these mattes are part of the video
signal
