Xedio Suite Version 4.2 – User Manual - Xedio Browse
EVS Broadcast Equipment – June 2012
Issue 4.2.B
9
2.3.3 V
IDEO AND
A
UDIO
M
ONITORING
T
OOLS

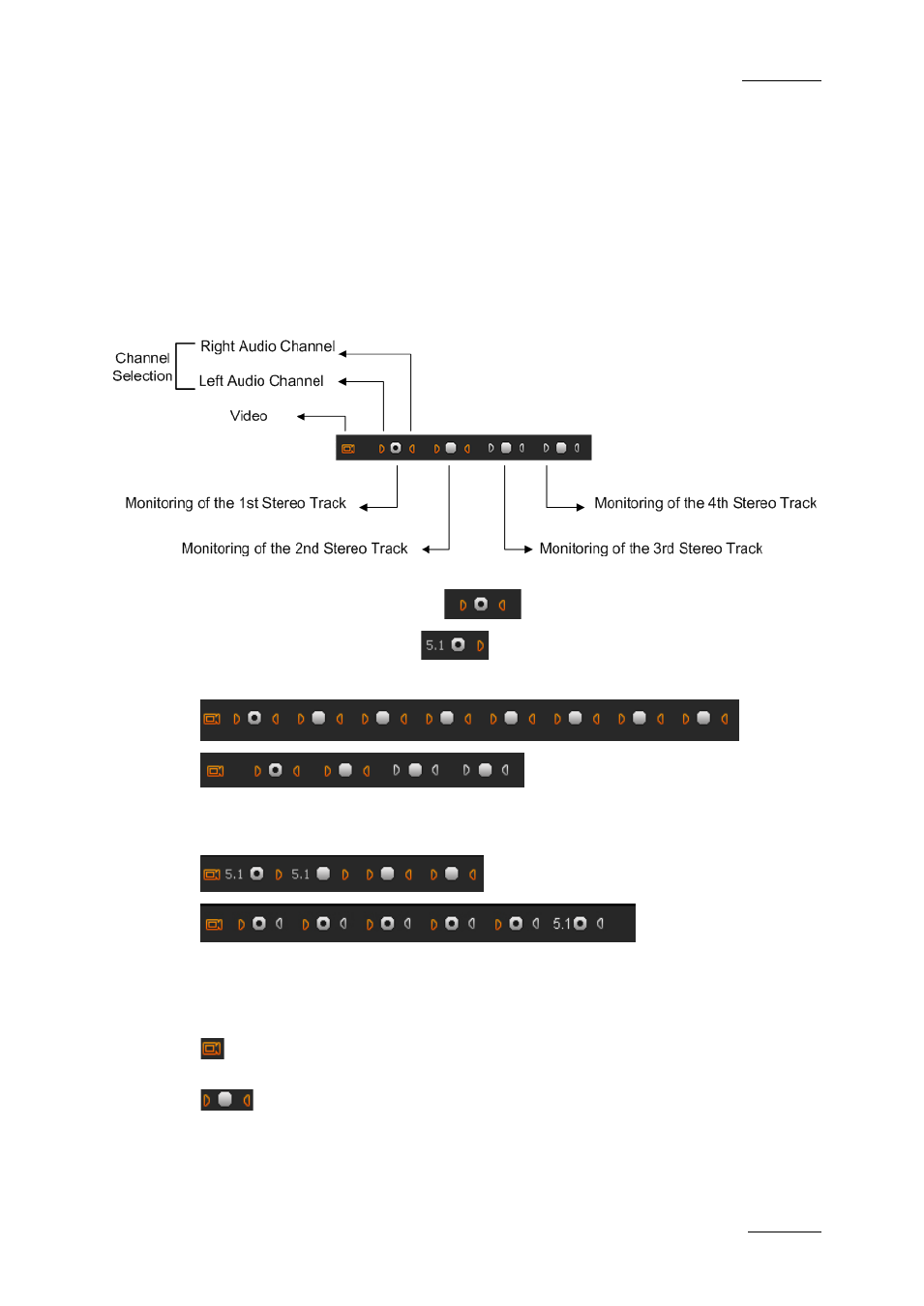

When a media is loaded on the Player pane, the video and audio tracks to monitor
can be selected using the buttons underneath the Video Display.
Overview
All the available audio sources from a media are displayed below the Player.
The video and audio track buttons are represented as follows:
A stereo track is represented by .
A 5.1 track is represented by
In stereo mode, up to 8 tracks appear as follows:
(8 stereo)
(4 stereo)
In 5.1 and stereo mode, up to 16 channels can be shown as follows:
(two 5.1 tracks and two stereo tracks)
(one 5.1 track and six
stereo tracks)
V
IDEO AND
A
UDIO
S
ELECTION
Clicking on the Video button will remove the video from the Player window.
The displayed button will turn to white.
Clicking on the left or right triangle of an audio stereo track will disable
respectively the left or right channel of the corresponding audio track. The
displayed button will turn to white.
