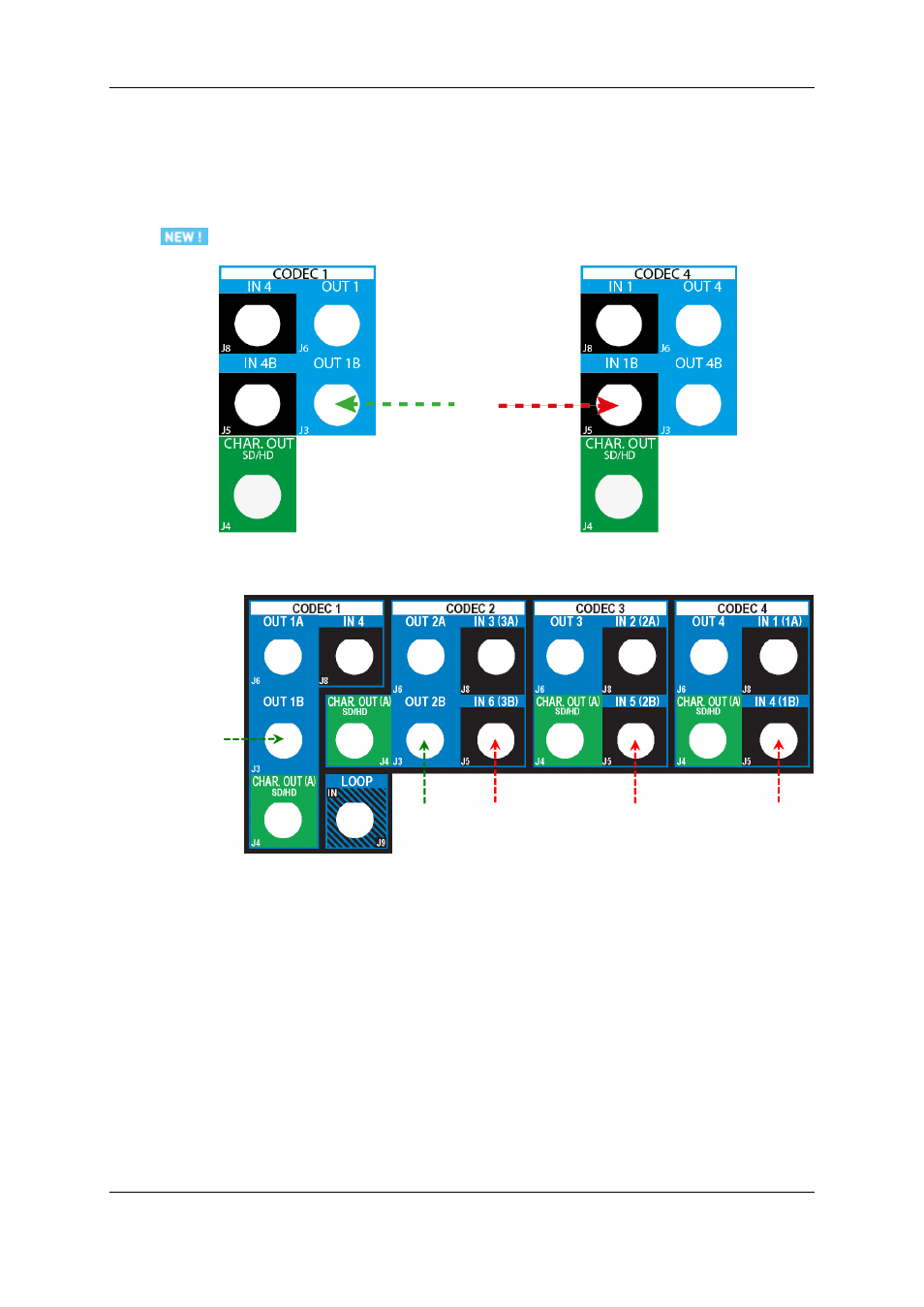

• The secondary links of the V3X boards correspond to the middle connectors of a
codec module:
◦ J5 for IN connectors (only IN 1B to 3B on old rear panels)
◦ J3 for OUT connectors (only OUT 1B and 2B on old rear panels)
Rear panels in 2013
Rear panels before 2013
3.2.2. SD/HD Base Configurations
Introduction
The table below shows the available standard SD/HD configurations with an XSnano
server (with COHX or V3X boards), and how the BNC connectors should be cabled.
