Xedio Dispatcher – Version 3.1 – User’s Manual
EVS Broadcast Equipment – December 2010
Issue 3.1.B
4.8.5 P
LAYER
T
RACK
S
ELECTION
B
UTTONS
All the available audio sources from a media are displayed below the Video
Display Clip Player. The Track Selection buttons are specific to the Clip Player.
O
VERVIEW OF THE
T
RACK
S
ELECTION

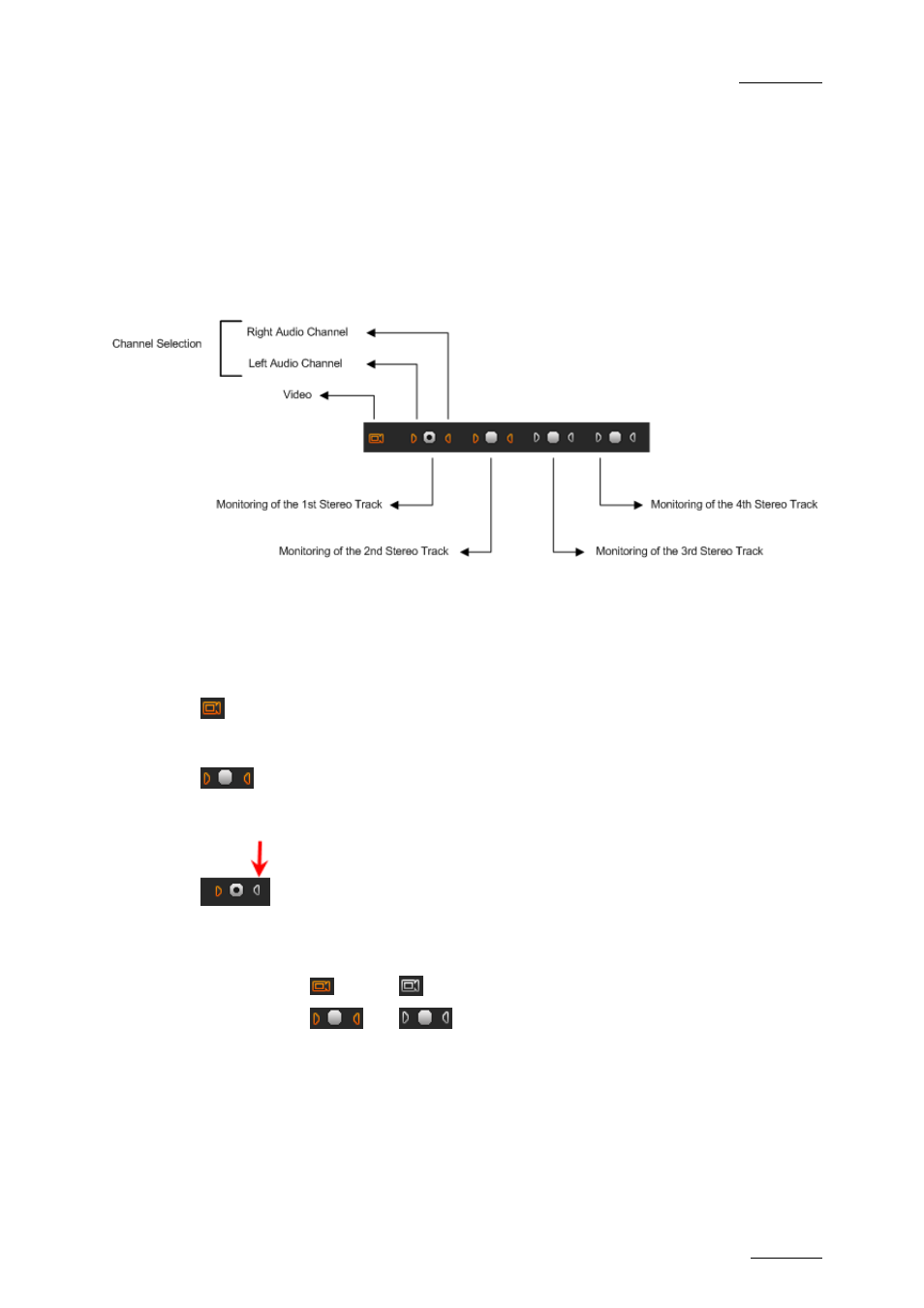

When you create a sub-clip, you need to select the video and requested audio
tracks using the buttons underneath the Video Display zone:
V
IDEO AND
A
UDIO
S
ELECTION
The channel selection (camera and triangle buttons) allows you to select the video
and audio channels you want to include in the clip/sub-clip you will add to the
storyboard.
Clicking on the Video button will remove the video from the Player window and
disable it so that the clip made has no video: The displayed button will turn to
white.
Clicking on the left or right triangle of an audio stereo track will disable
respectively the left or right channel of the corresponding audio track: The
displayed button will turn to white.
The table summarizes how the buttons look like depending on the selection:
Enabled Disabled
Video
Audio
A
UDIO
M
ONITORING
S
ELECTION
The radio buttons displayed between each pair of stereo audio channel buttons
allow you to select which audio track you want to monitor when you play the
loaded clip in the Clip Player.
37
