1.7. Managing GPI in TLO
Introduction
On some occasions, users may want to apply a GPI when the TLO nowline is on a
specific timecode. As the TLO nowline and the TLE nowline are separated in time, users
must be able to define GPIs linked to the TLO or to the TLE. For example, the use of an
external device on the on-air channel needs to be triggered by a TLO GPI.
Warning
This should be performed by an appropriate technical staff as it involves a
DEBUG screen on the EVS Video Server.
How to Set the GPI Mode
To do so, proceed as follows:

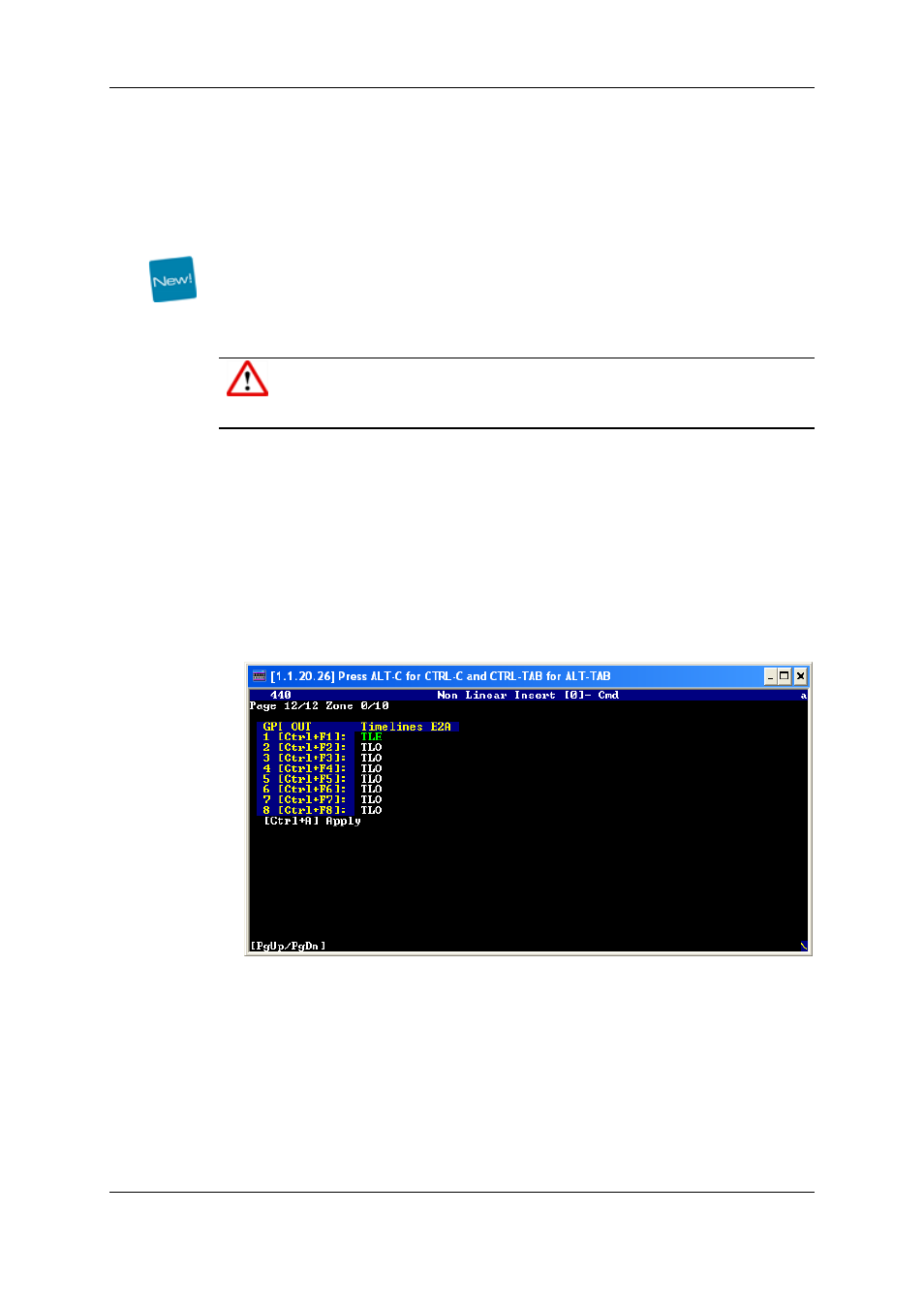

1. On the EVS video server, go to debug screen by pressing CTRL+ALT+D, then go to
screen 440, page 12/12.
2. For the GPI you want to assign to the TLE, type CTRL+ the corresponding Function
key.
In the following example, type CTRL + F1
The timeline associated to the GPI 1 turns to TLE.
Changes not yet saved are highlighted in green.
3. Press CTRL + A to apply the change(s).
This information is stored in the setup and kept when re-starting the application.
