1.2 VIDEO DISPLAY

1.2.1 I

NTRODUCTION

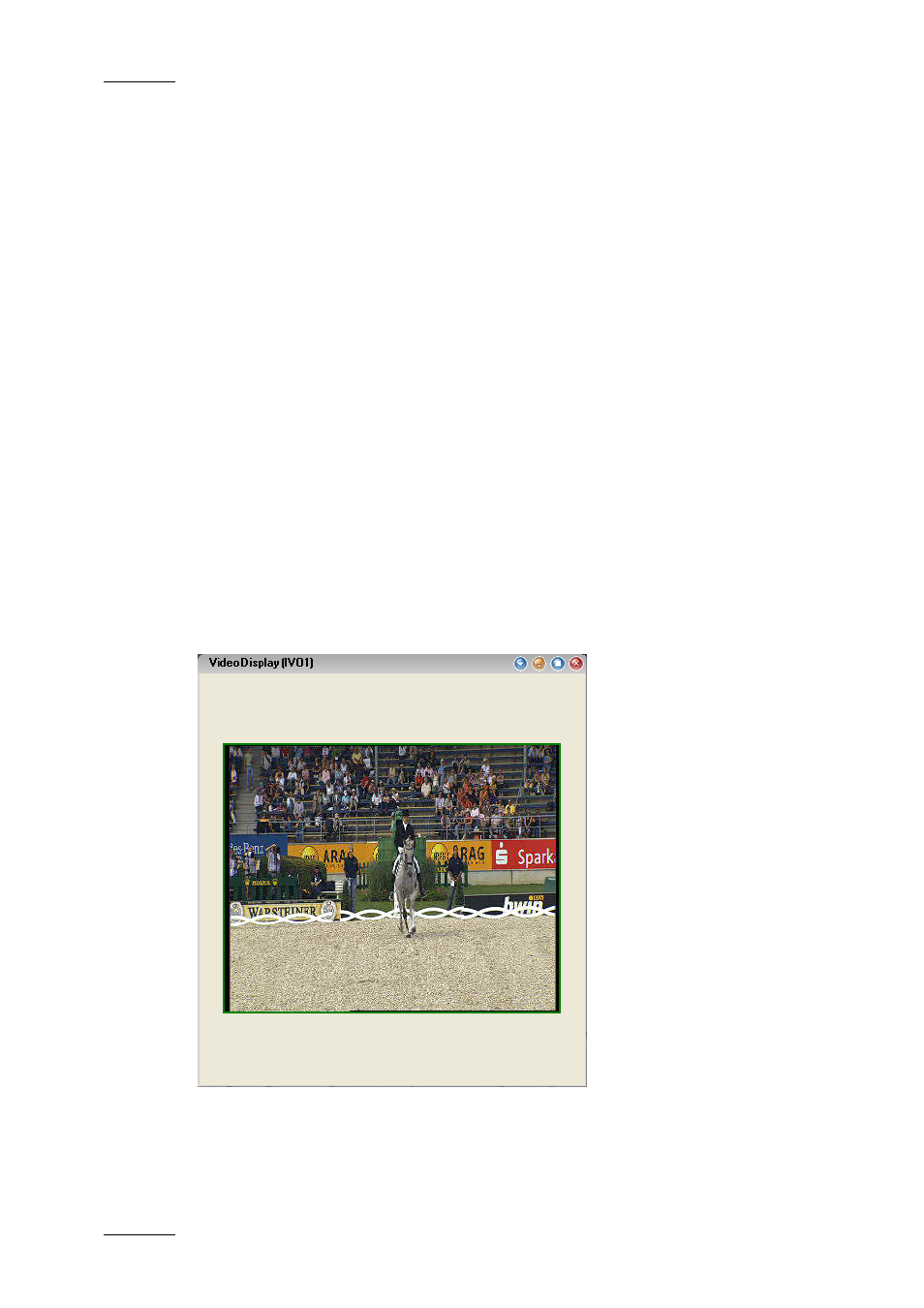

The Video Display allows the user to see a display of video in a window on the

VGA output of an IP Director Workstation.

Open the Video Display panel by selecting the Video Display icon from the
Application toolbar in the IP Director main window.

Before you can actually display a channel in the Video display, you need to
perform the following tasks:

Make a physical connection from the required video source to the input of the
A/V board on the IP Director workstation.
For more information, refer to section 1.2.2 Displaying Video on the Video
display Window
’, on page 7.

Assign a channel to the Video Display in the Remote Installer application.
For more information, refer to section 1.2.3 Assigning a Channel to a Video
Display
’, on page 7.

Select the A/V board in the Video Display to open the related channel.
For more information, refer to section 1.2.4 Selecting the A/V Board in the
Video Display
’, on page 8.
