Blue Ox SC4200 User Manual
Page 5

292-2880 Rev. B
Page 5 of 10
07/12/11
SC4200
SportLift III
Installation Instructions

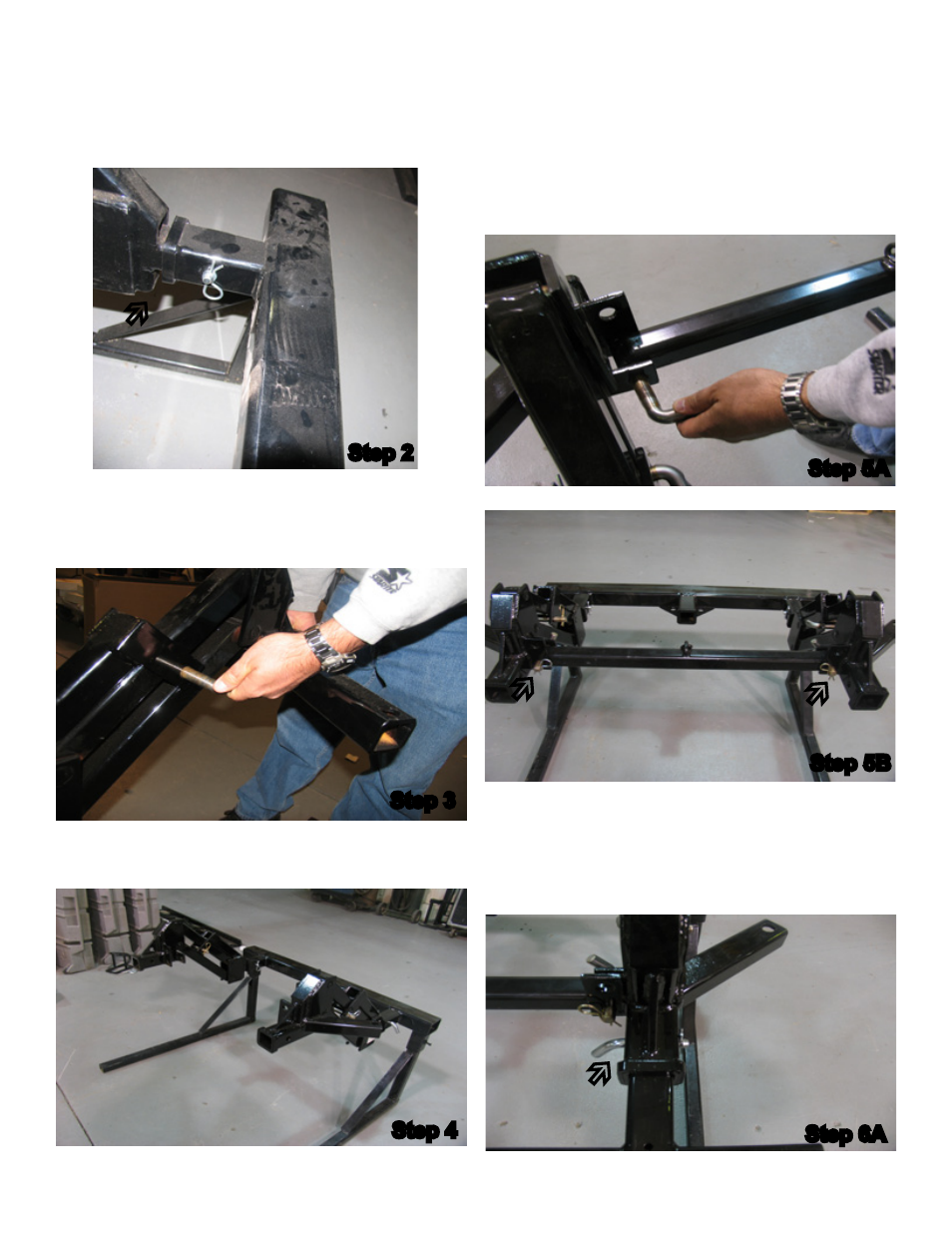

3. After securing the arm assembly to the
receiver hitch, secure the arm assembly in
the upright position with a 3/4” x 4” pin with
clip.
4. Repeat steps 2 & 3 for the passenger side
arm assembly.
Step 3
Step 4
Step 5A
5. Using two (2) 3/4” x 4” pins with clips, attach
the pickup tube to the arm assemblies on both
sides.
Step 6A
6. Using a 5/8” x 3” pin with clip, pin the driver
side base weldment to driver side arm
assembly and pin the passenger side base
weldment to passenger side arm assembly as
shown in the above picture.
Step 5B
Step 2
