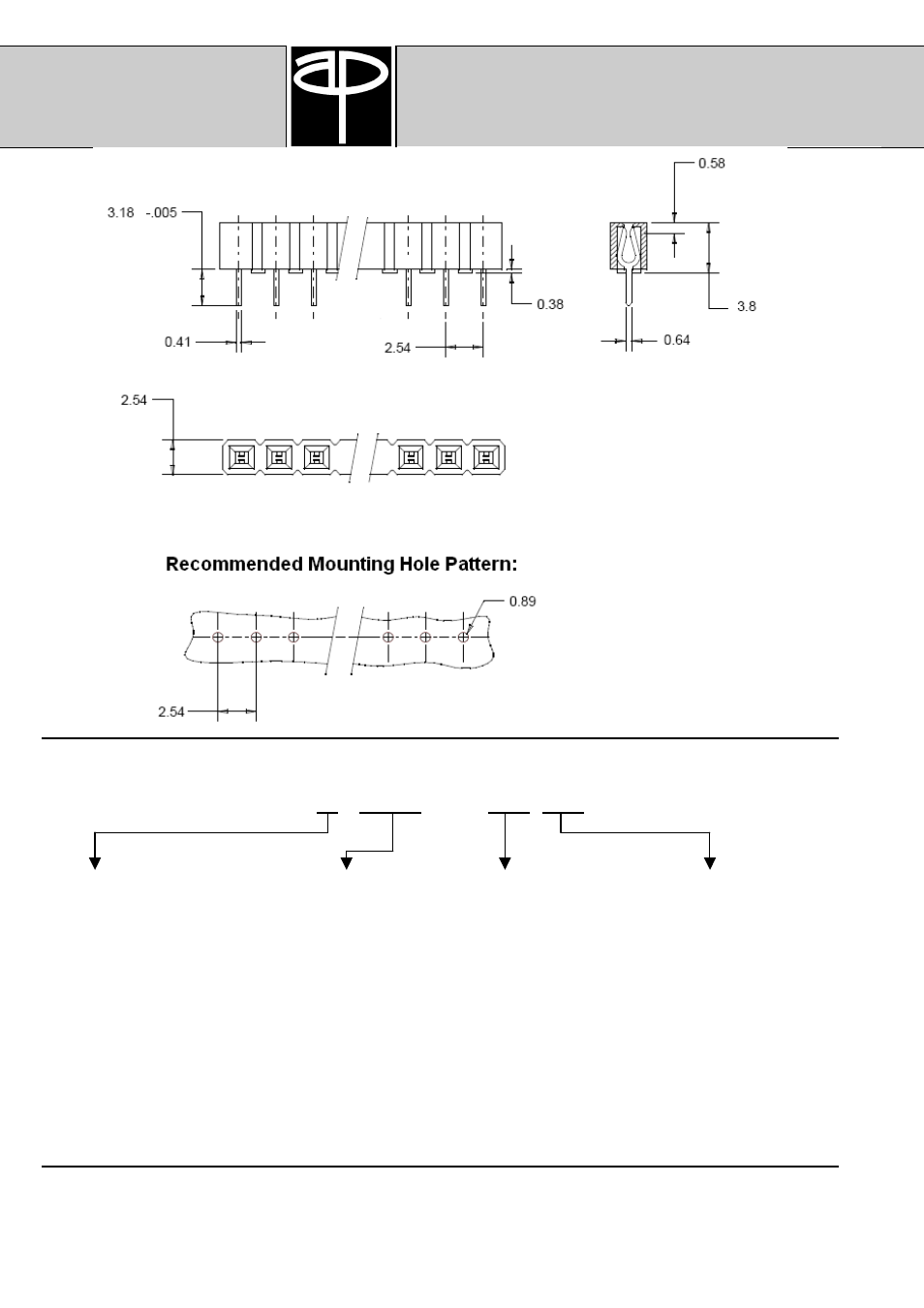

A P Products GmbH 2,54 mm Female Headers
Series 093P
Ordering Information
9x9xxx-01-xx-xx
Product Option:
1 Row Plating options: Contact Quantity perRow Plating Suffix
2 = Standard Product 870 = Selective Gold / Solder plating 1 to 36 none = full SnPb solder plating
without Kinked Tail 984 = Solder plating all over 10 = min 0,25 µm Au Plating
with SnPb Solder Tails
R = Standard Product 15 = 0,25 µm sel. Au Plating
with Kinked Tail as with Sn100 Solder Tails
Board Retention Feature 30 = min 0,76 µm Au Plating
with SnPb Solder Tails
3 = High Temperature Product 35 = 0,76 µm Sel. Au Plating
without Kinked Tail with Sn100 Solder Tails
50 = Sn100 Solder Plating
K = High Temperature Product
with Kinked Tail as
Board Retention Feature
