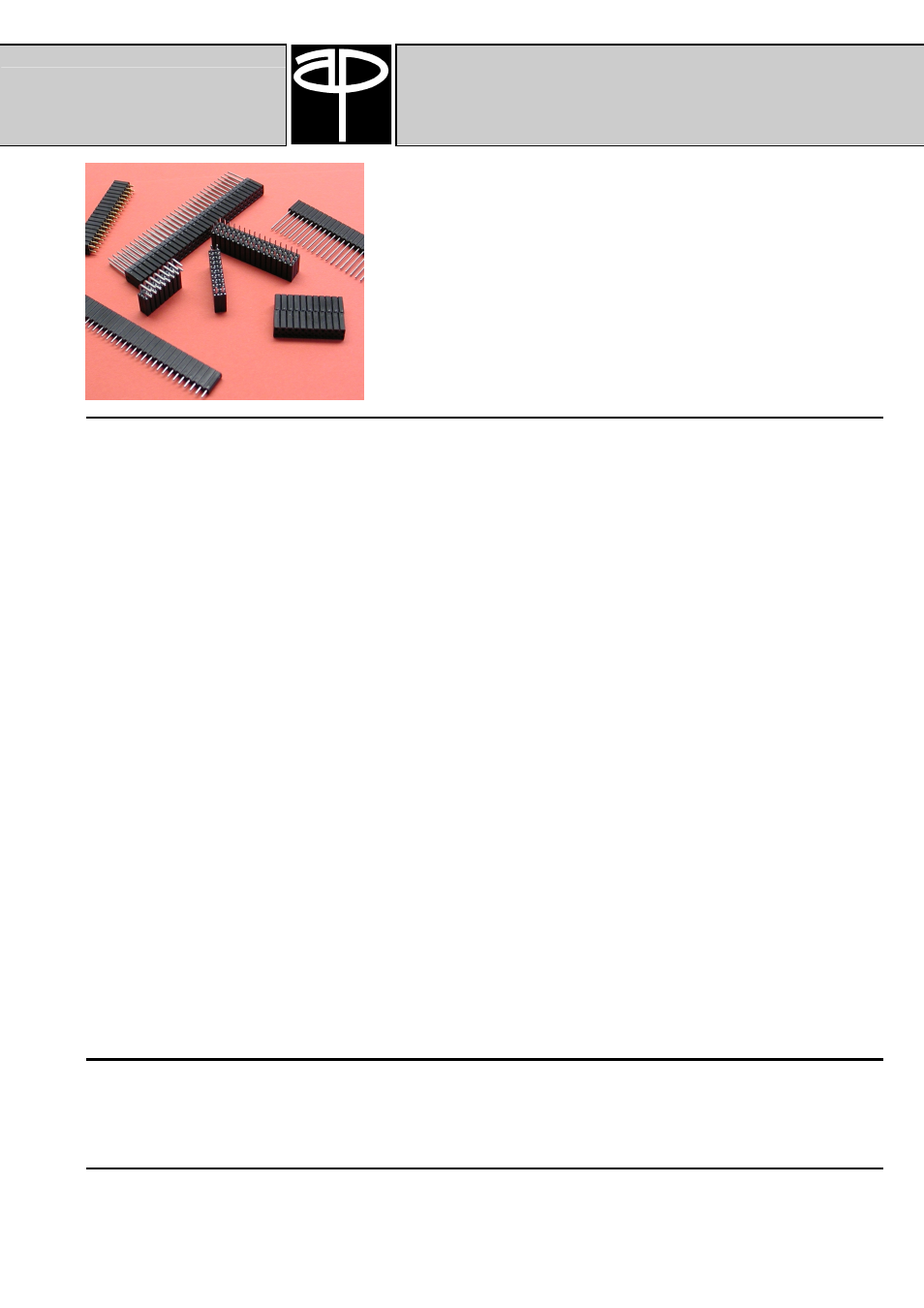

Straight Boardmount Sockets
•
1 – 36 contacts in one row,
2 – 72 contacts in two rows
3 – 108 Contacts in three rows
•
Tuning fork contact design
•
Gold, tin/lead or pure tin plating
•
Standard or high temperature body
•
Solder standoffs facilitate production wave soldering
• Optional board retention feature
•
Custom versions available
Physical
Insulation
Standard Temperature
Material: Glass filled Polyester (PBT)
Flammability: UL 94 V-0
Color: Black
High Temperature
Material: High performance Polyester (PCT)
Flammability: UL 94 V-0
Color: Black
Contact
Material: Copper Alloy
Plating Options
0,25µm Gold (all over)
Underplating: 1,27µm (50µ") Ni
Wiping Area: 0,25µm (10µ") AuCo 0,2 minimum
Solder Tails: flash AuCo 0,2
0,76µm Gold (Selective)
Underplating: 1,27µm (50µ") Ni
Wiping Area: 0,76µm (30µ") AuCo 0,2 minimum
Solder Tails: 2,54µm (100µ") SnPb30 (alternat. Sn100)
Tin Lead
Underplating: 1,27µm (50µ") Ni
Wiping Area: 2,54µm (100µ") SnPb30
Solder Tails: 2,54µm (100µ") SnPb30
Lead Free (Pure Tin)
Underplating: 1,27µm (50µ") Ni
Wiping Area: 2,54µm (100µ") Sn100
Solder Tails: 2,54µm (100µ") Sn100
,
Electrical
Current Rating: 1 A
Insulation Resistance: > 5 x 10
9
Ω at 500V DC
Withstanding Voltage: 1500 V DC at sea level
Environmental
Temperature Rating: -40°C to +105°C (Standard Temperature)
-40°C to +230°C (High Temperature)
A P Products GmbH 2,54 mm Female Headers
Series 235P
