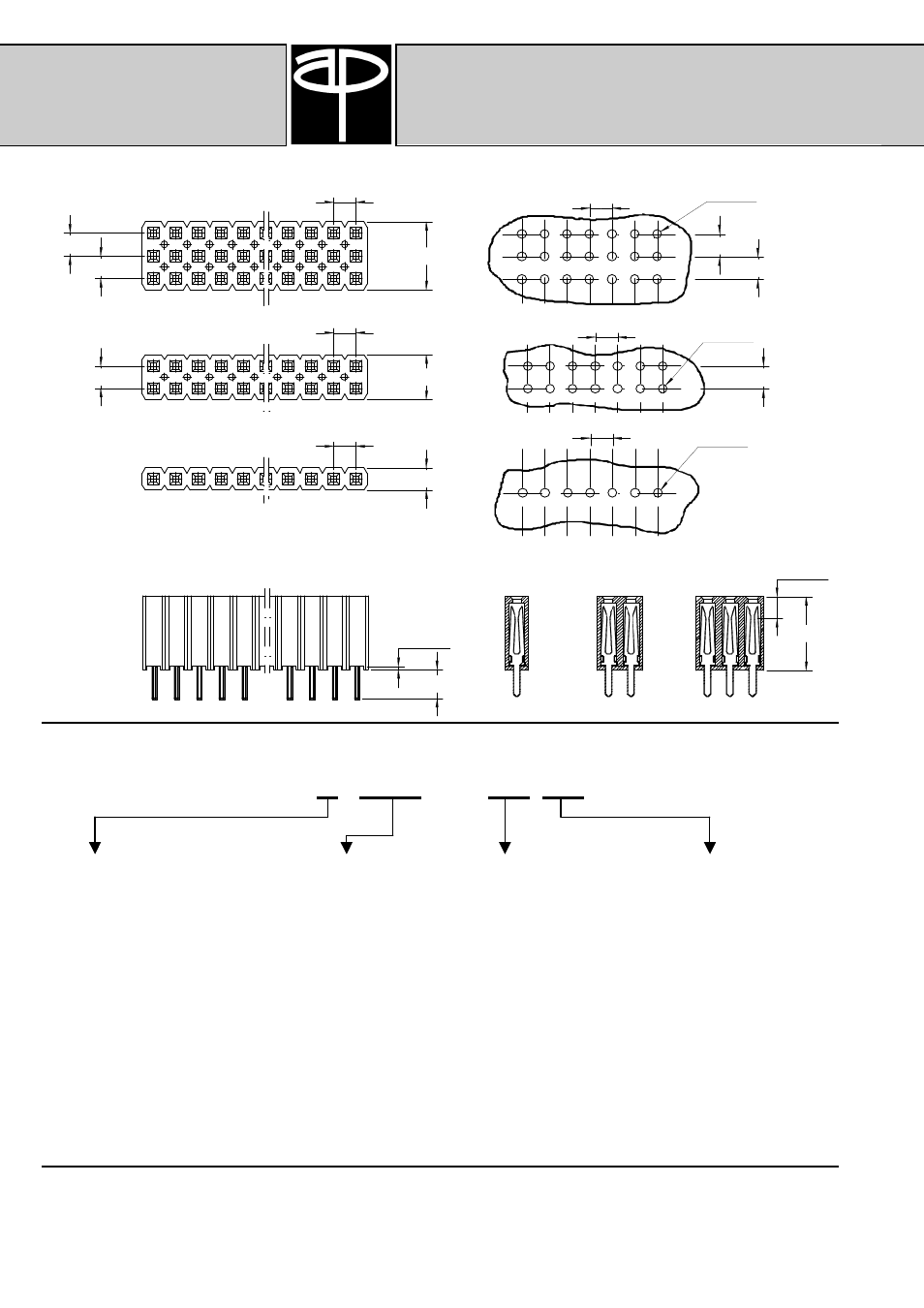

A P Products GmbH 2,54 mm Female Headers
Series 235P
2,54mm
5,08mm
7,62mm
2,54mm
2,54mm
2,54mm
2,54mm
2,54mm
2,54mm
8,26mm
2,29mm
0,38mm
3,18mm
Ø1,02mm
Ø1,02mm
2,54mm
2,54mm
2,54mm
2,54mm
2,54mm
2,54mm
Recommended Mounting Hole Patterns
Ø1,02mm
Ordering Information
9x9xxx-01-xx-xx
Product Option:
1 Row Plating options: Contact Quantity perRow Plating Suffix
2 = Standard Product 850 = all over Gold plating 1 to 36 none = Standard Product
without Kinked Tail 851 = Selective Gold / Solder plating 10 = min 0,25 µm Au Plating
974 = Solder Plating 15 = 0,25 µm sel. Au Plating
R = Standard Product with Sn100 Solder Tails
with Kinked Tail as 2 Row Plating options: 20 = min 0,50 µm Au Plating
Board Retention Feature 852 = all over Gold plating 25 = 0,50 µm Sel. Au Plating
853 = Selective Gold / Solder plating with Sn100 Solder Tails
3 = High Temperature Product 975 = Solder Plating 30 = min 0,76 µm Au Plating
without Kinked Tail 35 = 0,76 µm sel. Au Plating
3 Row Plating options: with Sn100 Solder Tails
K = High Temperature Product 854 = all over Gold plating 50 = Sn100 Solder Plating
with Kinked Tail as 855 = Selective Gold / Solder plating
Board Retention Feature 976 = Solder Plating
Engineering Note:
The information presented in this
datasheet is accurate to the best of
our knowledge.
Due to ongoing efforts to advance
design and material performance,
this information is subject to change
without notice.
