A P Products Male and Female Header - Manual (Page 5)

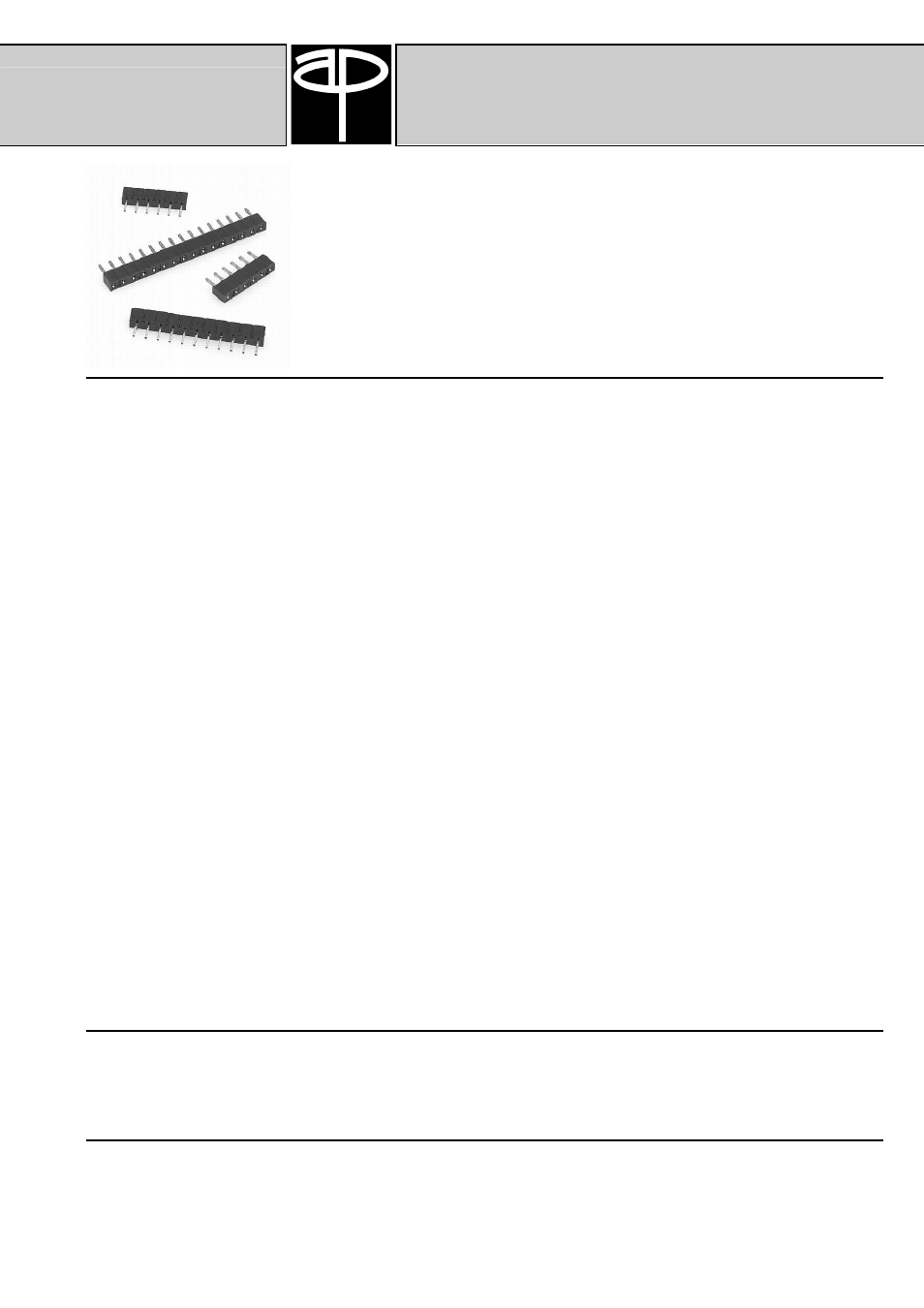

Straight Boardmount Sockets
•
1 – 36 contacts in one row
•
Tuning fork contact design
•
Gold, tin/lead or pure tin plating
•
Standard or high temperature body
•
Solder standoffs facilitate production wave soldering
•
Optional board retention feature
• Custom versions available
Physical
Insulation
Standard Temperature
Material: Glass filled Polyester (PBT)
Flammability: UL 94 V-0
Color: Black
High Temperature
Material: High Temperature Nylon
Flammability: UL 94 V-0
Color: Black
Contact
Material: Copper Alloy
Plating Options
0,25µm- Gold (Selective)
Underplating: 1,27µm (50µ") Ni
Wiping Area: 0,25µm (10µ") Au
Solder Tails: 0,25 Sn100 (matt finish) (alternat. SnPb)
0,76µm Gold (Selective)
Underplating: 1,27µm (50µ") Ni
Wiping Area: 0,76µm (30µ") Au
Solder Tails: 2,54µm (100µ") Sn100 matt finish (alternat. SnPb)
Tin Lead
Underplating: 1,27µm (50µ") Ni
Wiping Area: 2,54µm (100µ") SnPb
Solder Tails: 2,54µm (100µ") SnPb
Tin (Lead free)
Underplating: 1,27µm (50µ") Ni
Wiping Area: 2,54µm (100µ") Sn100 (matt finish)
Solder Tails: 2,54µm (100µ") Sn100 (matt finish)
Electrical
Current Rating: 1 A
Insulation Resistance: > 5 x 10
9
Ω at 500V DC
Withstanding Voltage: 1000 V DC at sea level
Environmental
Temperature Rating: -40°C to +105°C (Standard Temperature)
-40°C to +230°C (High Temperature)
A P Products GmbH 2,54 mm Female Headers
Series 093P
